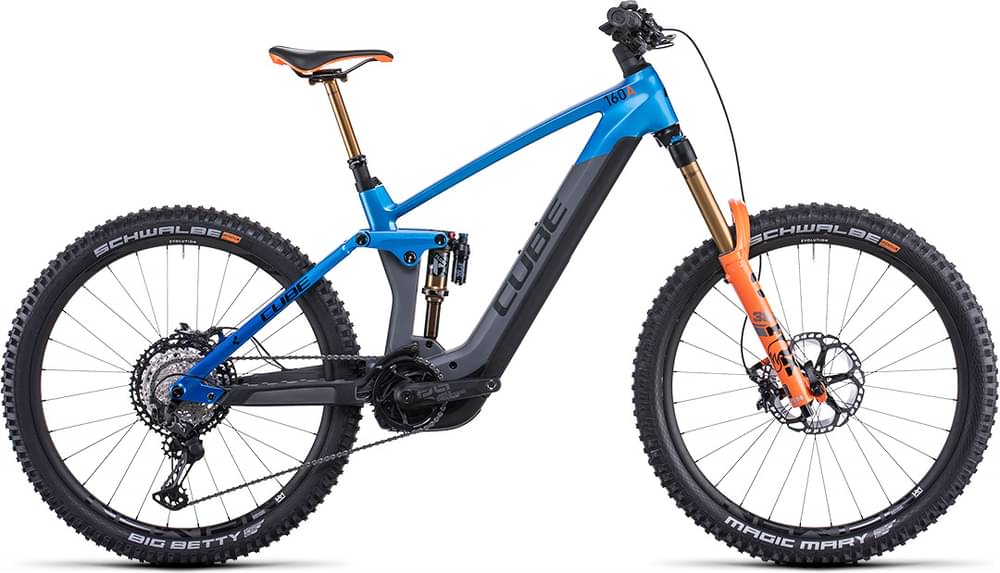

CUBE STEREO HYBRID 160 HPC ACTIONTEAM 27.5 2022
2022 E-bike
Estimate price |
7,339$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Fork Fox Factory Float 38
-
Groupset XT, e*thirteen -
Suspension Full -
Motor mid-drive -
Battery [This component is subject to an embargo until 31.08.21] -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 38 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated
Rear Shock
Fox Float X Factory, 205x65mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T
Crank
e*thirteen Plus Crank, 165mm, 36T
Chain
Shimano CN-M8100
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Wheels
Rims
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
Motor & Battery
Motor
[This component is subject to an embargo until 31.08.21]
Battery
[This component is subject to an embargo until 31.08.21]
Remote
[This component is subject to an embargo until 31.08.21]
Charger
[This component is subject to an embargo until 31.08.21]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 783 mm | 815 mm | 847 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 619.1 mm | 629.9 mm | 646.3 mm |
| Reach | 456.4 mm | 482.8 mm | 507.5 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1227 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 772 mm | 772 mm | 795 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
STEREO HYBRID 160 HPC ACTIONTEAM 27.5 is a Cube E Stereo Hybrid 160 model. 48 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CUBE STEREO HYBRID 160 HPC RACE 625 27.5 2022 is the most economical model, with a starting price of 4352$. CUBE STEREO HYBRID 160 HPC SLT 27.5 2022 on the other hand costs 8918$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6794$. In conclusion, this e-bike price is 41.99% higher than the price of the average Enduro e-bike.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE STEREO HYBRID 160 HPC ACTIONTEAM 27.5 it’s weighing 24.3 kg (53.57 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.76% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the STEREO HYBRID 160 HPC ACTIONTEAM 27.5 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
The CUBE model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
