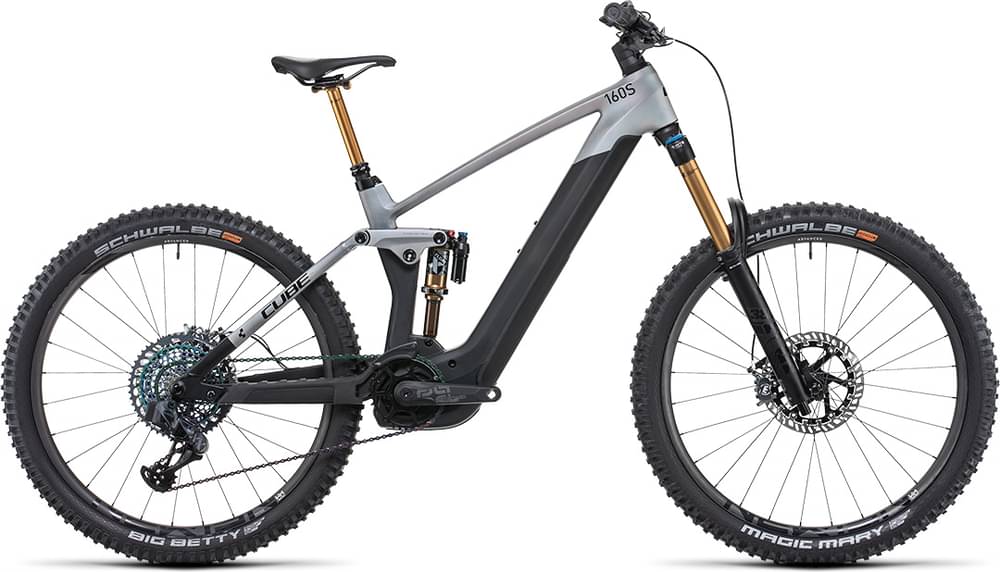

CUBE STEREO HYBRID 160 HPC SLT 750 27.5 2022
2022 E-bike
Estimate price |
9,633$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Fork Fox Factory Float 38
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated
Rear Shock
Fox Float X Factory, 205x65mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS™, 12-Speed
Shift Levers
SRAM Eagle AXS™ Controller
Cassette
SRAM XG-1299 Eagle™ Rainbow, 10-52T
Crank
e*thirteen Plus Crank, 165mm, 36T
Chain
SRAM PC-XX1 Eagle™ Rainbow
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch Kiox 300
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 783 mm | 815 mm | 847 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 619.1 mm | 629.9 mm | 646.3 mm |
| Reach | 456.4 mm | 482.8 mm | 507.5 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1227 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 772 mm | 772 mm | 795 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 160 HPC SLT 750 27.5 is part of the Cube E Stereo Hybrid 160 model. 48 e-bikes variations carry this model name so far. You can easily view all of the Cube E Stereo Hybrid 160 e-bikes models from 2022, here.
Model range prices
CUBE STEREO HYBRID 160 HPC RACE 625 27.5 2022 is the most economical model, with a starting price of 4352$. CUBE STEREO HYBRID 160 HPC SLT 27.5 2022 on the other hand costs 8918$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8918$. In conclusion, this e-bike price is 86.37% higher than the price of the average Enduro e-bike.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.3 kg (53.57 lbs), CUBE e-bike is slightly heavier than average. To sum up, it’s 3.76% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
STEREO HYBRID 160 HPC SLT 750 27.5 components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the STEREO HYBRID 160 HPC SLT 750 27.5 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 160 HPC SLT 750 27.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
CUBE STEREO HYBRID 160 HPC SLT 750 27.5 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
CUBE STEREO HYBRID 160 HPC SLT 750 27.5 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
