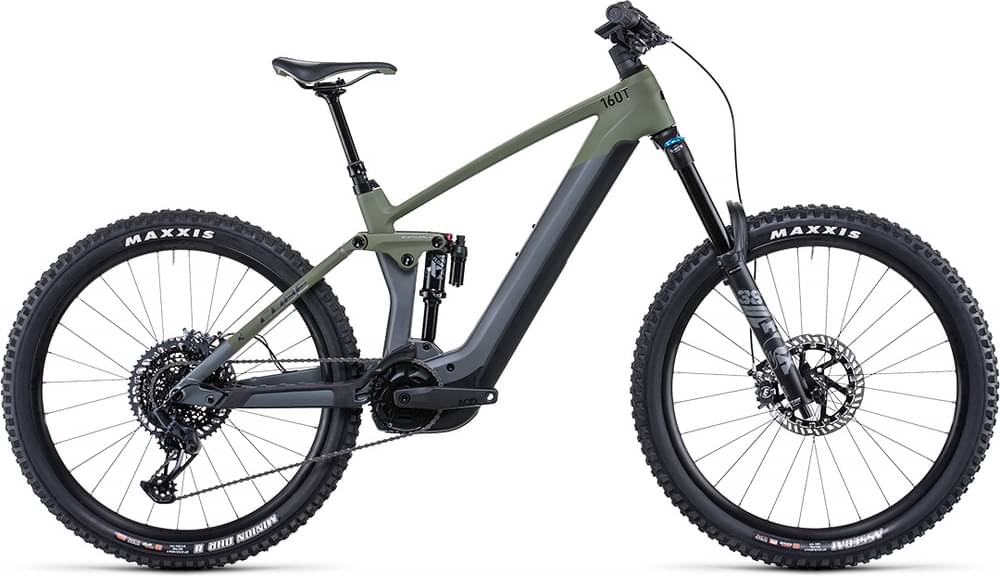

CUBE STEREO HYBRID 160 HPC TM 27.5 2022
2022 E-bike
Estimate price |
6,192$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle -
Suspension Full -
Motor mid-drive -
Battery [This component is subject to an embargo until 31.08.21] -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm
Rear Shock
Fox Float X, 205x65mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 165mm, 36T
Chain
SRAM NX Eagle™
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 800mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Motor & Battery
Motor
[This component is subject to an embargo until 31.08.21]
Battery
[This component is subject to an embargo until 31.08.21]
Remote
[This component is subject to an embargo until 31.08.21]
Charger
[This component is subject to an embargo until 31.08.21]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 783 mm | 815 mm | 847 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 619.1 mm | 629.9 mm | 646.3 mm |
| Reach | 456.4 mm | 482.8 mm | 507.5 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1227 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 772 mm | 772 mm | 795 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
STEREO HYBRID 160 HPC TM 27.5 is a Cube E Stereo Hybrid 160 model. 48 e-bikes variations carry this model name so far. You can easily view all of the Cube E Stereo Hybrid 160 e-bikes models from 2022, here.
Model range prices
The most economical model, the CUBE STEREO HYBRID 160 HPC RACE 625 27.5 2022 has a starting price of 4352$. CUBE STEREO HYBRID 160 HPC SLT 27.5 2022 on the other hand is the most expensive at 8918$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5733$. Doing a quick comparison, we notice that STEREO HYBRID 160 HPC TM 27.5 price is 19.81% more expensive than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, STEREO HYBRID 160 HPC TM 27.5 has a weight of 24.5 kg (54.01 lbs). To sum up, it’s 4.61% heavier than the average weight of Enduro e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
STEREO HYBRID 160 HPC TM 27.5 components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the STEREO HYBRID 160 HPC TM 27.5 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO HYBRID 160 HPC TM 27.5 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
STEREO HYBRID 160 HPC TM 27.5 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the STEREO HYBRID 160 HPC TM 27.5. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
