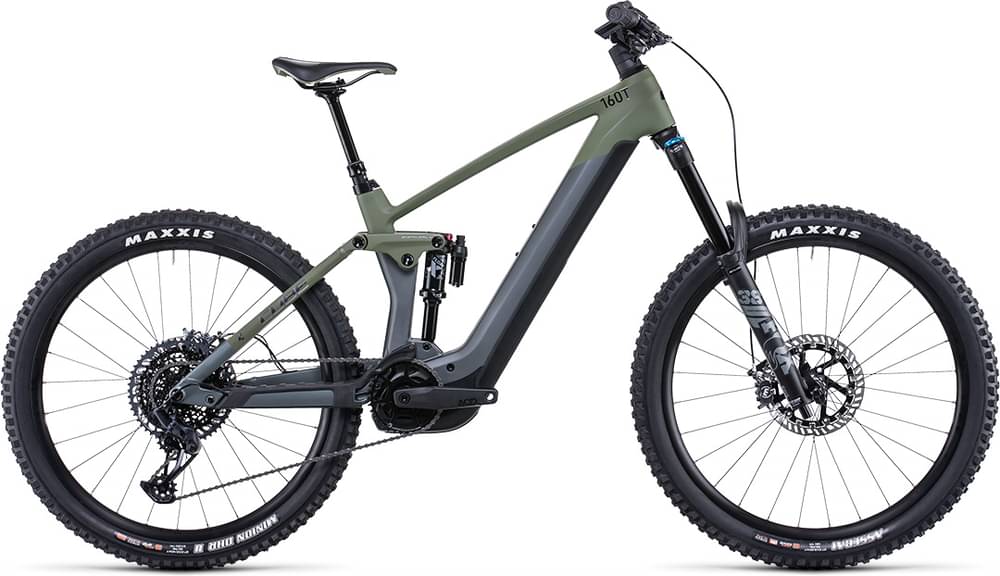

CUBE STEREO HYBRID 160 HPC TM 750 27.5 2022
2022 E-bike
Estimate price |
6,192$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm
Rear Shock
Fox Float X, 205x65mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 165mm, 36T
Chain
SRAM NX Eagle™
Chain Guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 800mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch Kiox 300
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Front Center | 783 mm | 815 mm | 847 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 117 mm | 117 mm | 117 mm |
| Stack | 619.1 mm | 629.9 mm | 646.3 mm |
| Reach | 456.4 mm | 482.8 mm | 507.5 mm |
| Top Tube Length | 603 mm | 633 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1227 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm |
| Standover Height | 772 mm | 772 mm | 795 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 160 HPC TM 750 27.5 belongs to the Cube E Stereo Hybrid 160 model. There are 48 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE STEREO HYBRID 160 HPC RACE 625 27.5 2022 is the most affordable e-bike of this model and has a price of 4352$. On the other hand, CUBE STEREO HYBRID 160 HPC SLT 27.5 2022, is the most expensive and costs 8918$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 5733$. In conclusion, this e-bike price is 19.81% higher than the price of the average Enduro e-bike.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 24.5 kg (54.01 lbs), the STEREO HYBRID 160 HPC TM 750 27.5 model is slightly heavier than average. In short, the average Enduro e-bike weight is 4.61% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
STEREO HYBRID 160 HPC TM 750 27.5 components
Fork
CUBE STEREO HYBRID 160 HPC TM 750 27.5 2022 e-bike is equipped with the Fox Performance Float 38 fork, and has 170mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the STEREO HYBRID 160 HPC TM 750 27.5 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 160 HPC TM 750 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
STEREO HYBRID 160 HPC TM 750 27.5 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
CUBE STEREO HYBRID 160 HPC TM 750 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
