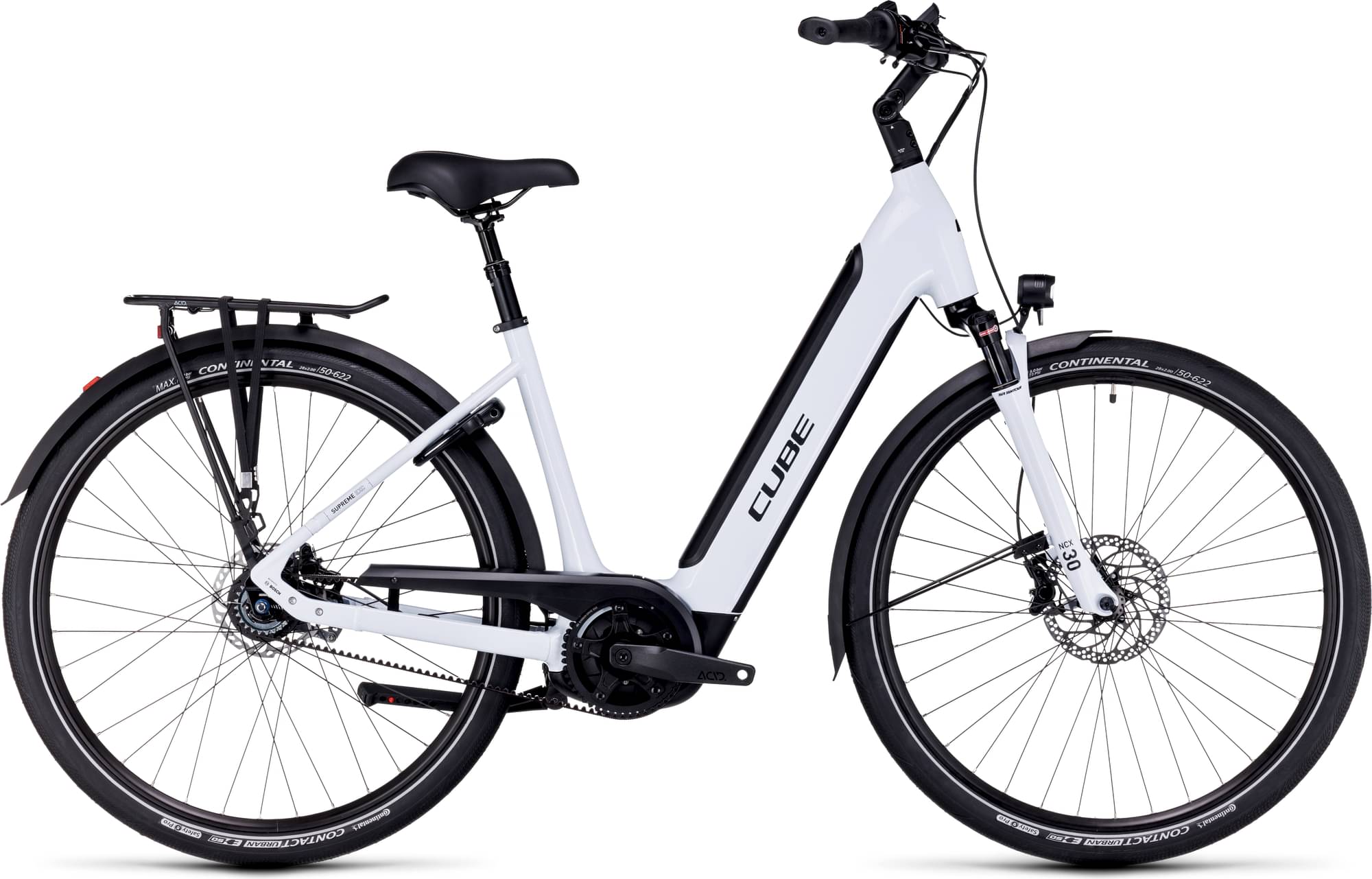

CUBE SUPREME RT HYBRID, EXC 500 2023
2023 E-bike
Estimate price |
3,726$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NCX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Coaster
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery, Slider Dropout
Suspension Fork
SR Suntour NCX D LO Air, 50mm, Lockout

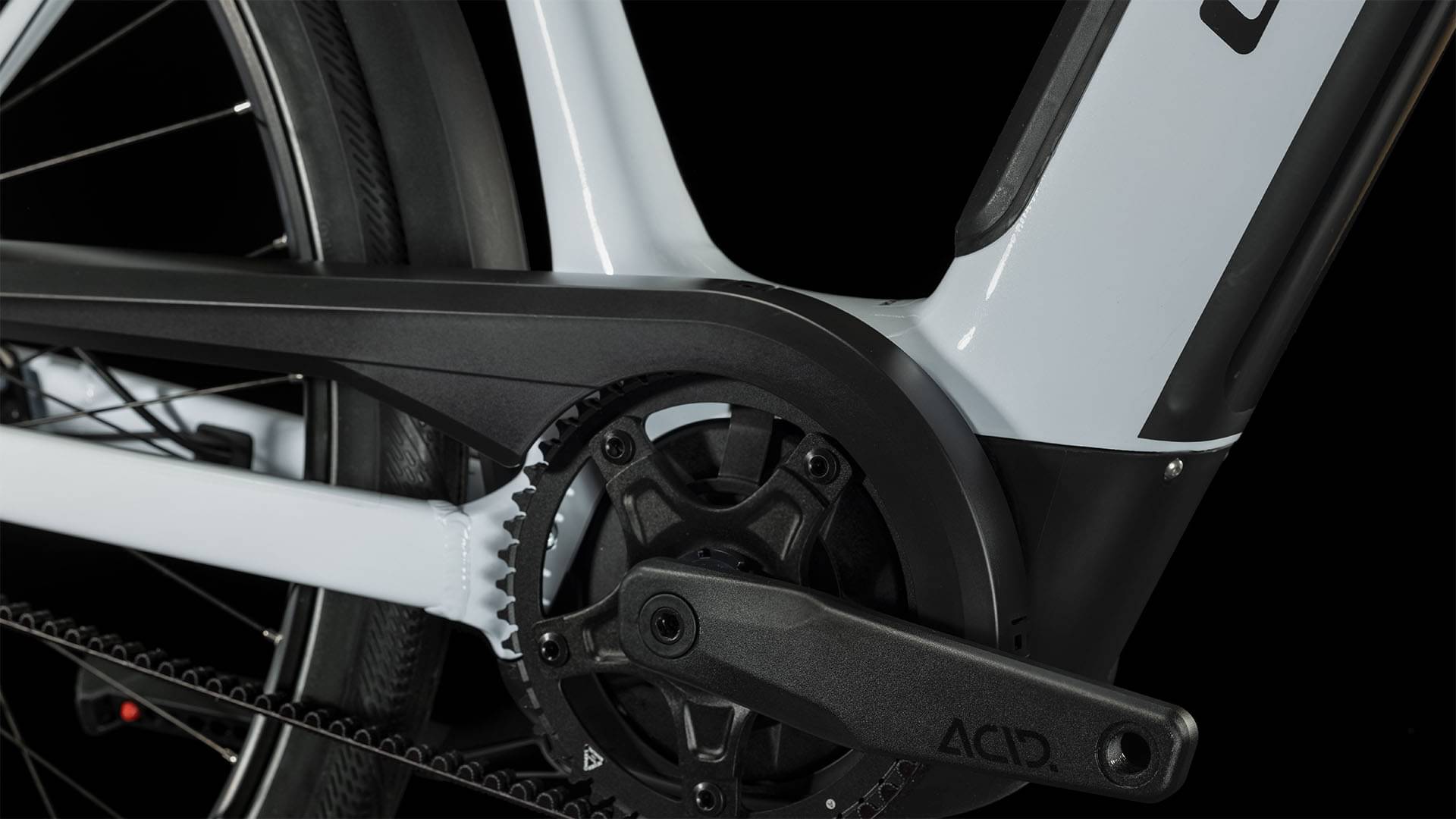

Drivetrain
Shift Levers
Shimano Nexus SL-C6000-8, Revoshift
Cassette
Gates Rear Sprocket CDC, 24T
Crank
ACID E-Crank, 50T, 165mm
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Nexus SG-C6001-8CD, 8-Speed, 5-Bolt, Coaster Brake, Nut
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Conti Contact Urban, SafetyPro, 50-622
Brakes
Brakes
Shimano Deore BR-M6000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
ACID Travel Comfort Gripshift
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Shen+
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery

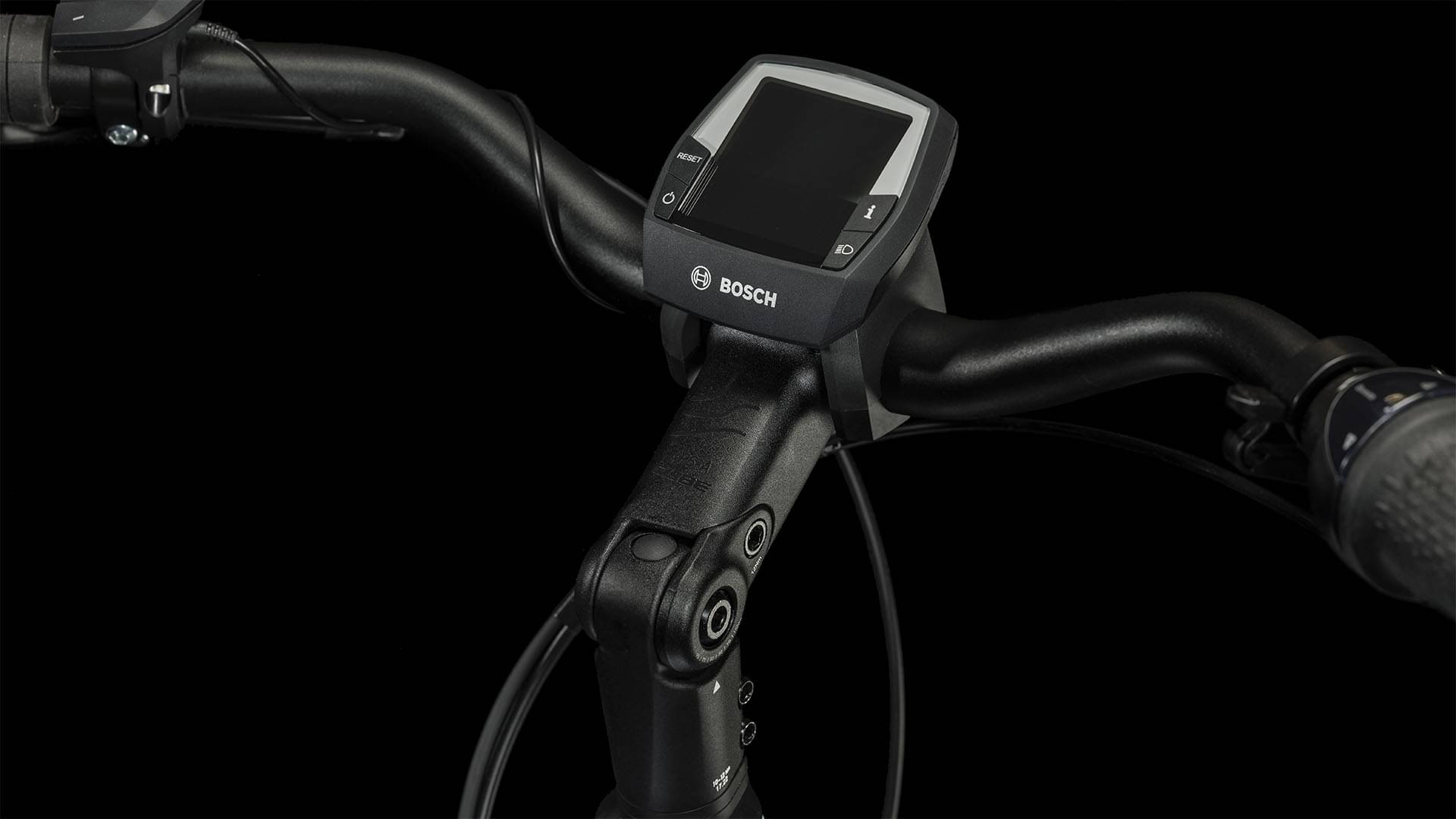

Motor
Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.73 mm | 1.74 mm |
| Front Center | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 41 mm | 41 mm | 42 mm | 41 mm |
| Trail | 83 mm | 83 mm | 82 mm | 83 mm |
| Stack | 675 mm | 675 mm | 690 mm | 708 mm |
| Reach | 393 mm | 393 mm | 400 mm | 407 mm |
| Top Tube Length | 611 mm | 611 mm | 623 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1149 mm | 1149 mm | 1162 mm | 1175 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
SUPREME RT HYBRID, EXC 500 belongs to the Cube E Supreme model. CUBE released 42 e-bikes variations of this model so far. You can easily view all of the Cube E Supreme e-bikes models from 2023, here.
Model range prices
CUBE SUPREME HYBRID, ONE 400 2023 is the most affordable e-bike of this model and has a price of 2600$. On the other hand, CUBE SUPREME HYBRID, SLT 625 2023, is the most expensive and costs 4565$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, CUBE SUPREME RT HYBRID, EXC 500 price was 3450$. Doing a quick comparison, we notice that SUPREME RT HYBRID, EXC 500 price is 34.29% more expensive than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, SUPREME RT HYBRID, EXC 500 has a weight of 26.7 kg (58.86 lbs). To sum up, it’s 5.95% heavier than the average weight of Commuter e-bikes.
SUPREME RT HYBRID, EXC 500 components

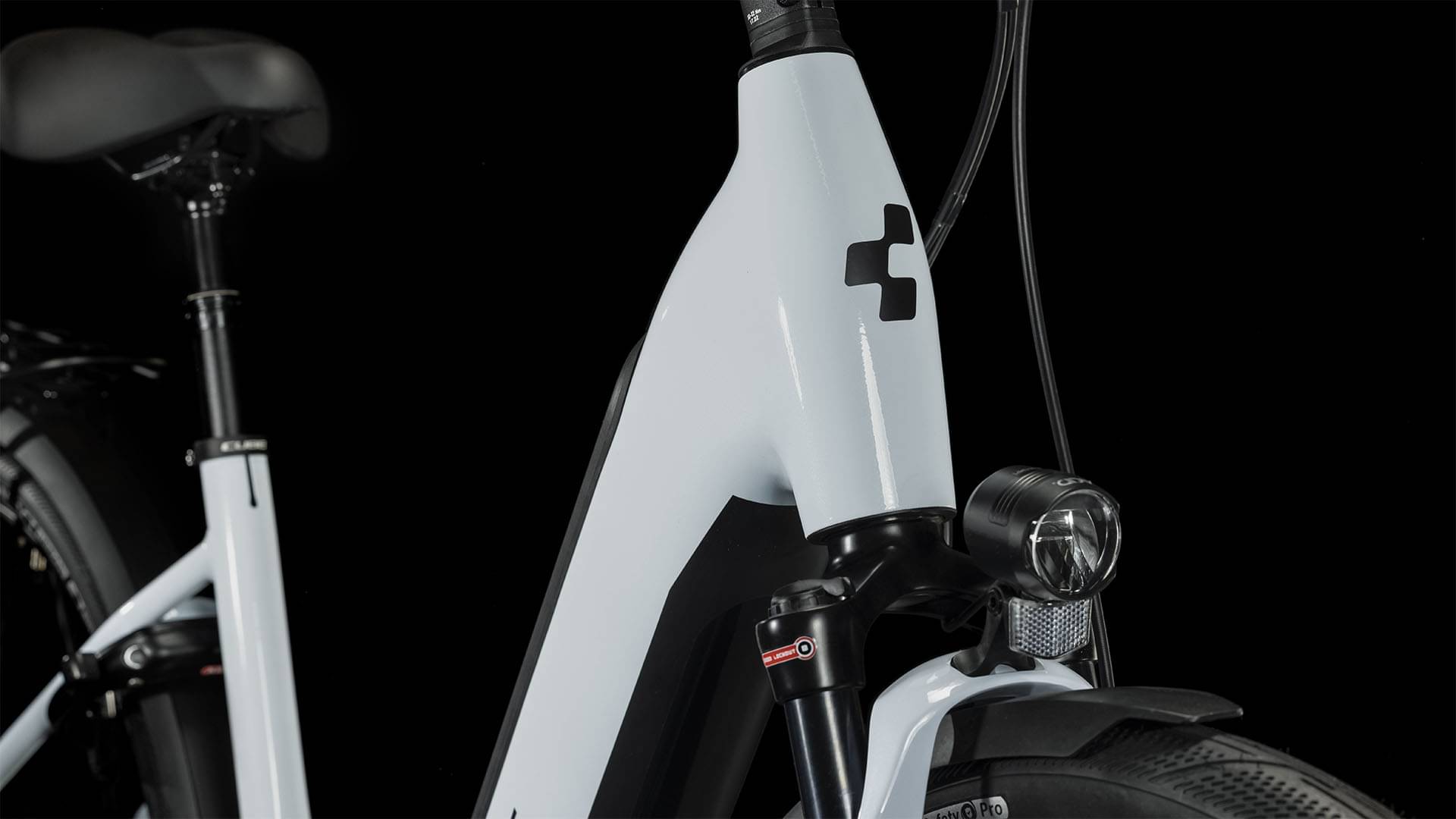

Fork
The Suntour NCX is included from the factory. It has a travel distance of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The SUPREME RT HYBRID, EXC 500 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The SUPREME RT HYBRID, EXC 500 has Coaster brakes. These brakes are pretty efficient, and they’re not so pricey. However, if your chain falls off or snaps, your coaster brakes won’t function anymore.
Sizes
SUPREME RT HYBRID, EXC 500 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
