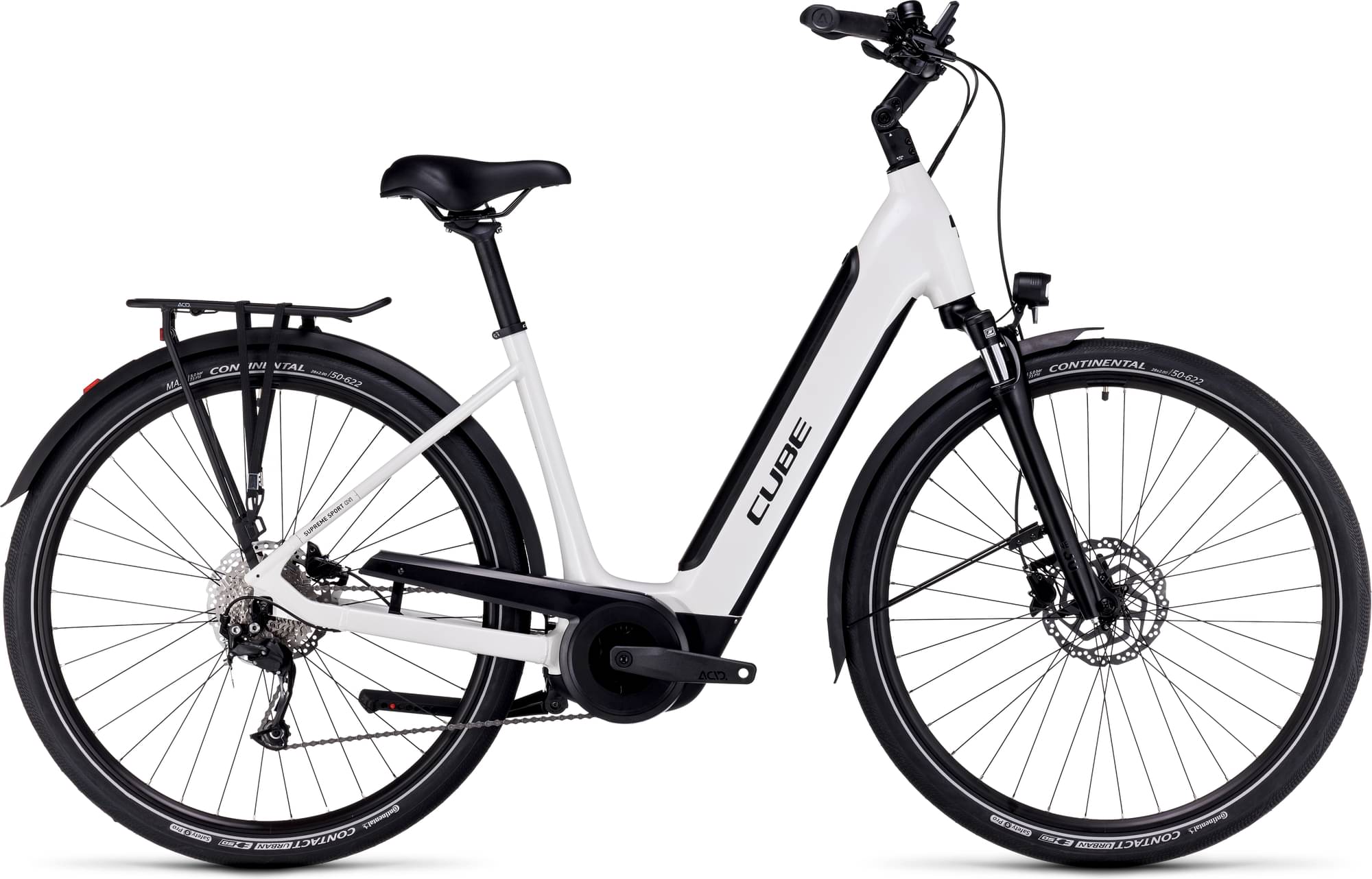

CUBE SUPREME SPORT HYBRID, ONE 500 2023
2023 E-bike
Estimate price |
3,153$
Weight | 25.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M2010-9R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 38T, 165mm
Chain
KMC X9
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Conti Contact Urban, SafetyPro, 50-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
ACID Travel Comfort
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Shen
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 500
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.73 mm | 1.74 mm |
| Front Center | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 41 mm | 41 mm | 42 mm | 41 mm |
| Trail | 83 mm | 83 mm | 82 mm | 83 mm |
| Stack | 675 mm | 675 mm | 690 mm | 708 mm |
| Reach | 393 mm | 393 mm | 400 mm | 407 mm |
| Top Tube Length | 611 mm | 611 mm | 623 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1149 mm | 1149 mm | 1162 mm | 1175 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
SUPREME SPORT HYBRID, ONE 500 is a Cube E Supreme model. CUBE released 42 e-bikes variations of this model so far. Take a sneak peek at all Cube E Supreme e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the CUBE SUPREME HYBRID, ONE 400 2023 has a starting price of 2600$. CUBE SUPREME HYBRID, SLT 625 2023 on the other hand is the most expensive at 4565$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 2919$. In conclusion, this e-bike price is 13.62% higher than the price of the average Commuter e-bike.
Commuter e-bikes average weight
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CUBE SUPREME SPORT HYBRID, ONE 500 it’s weighing 25.6 kg (56.44 lbs). At this weight, is slightly heavier than average. In other words, this model is 1.59% heavier than the average Commuter e-bike.
SUPREME SPORT HYBRID, ONE 500 components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the SUPREME SPORT HYBRID, ONE 500 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE SUPREME SPORT HYBRID, ONE 500 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
SUPREME SPORT HYBRID, ONE 500 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
