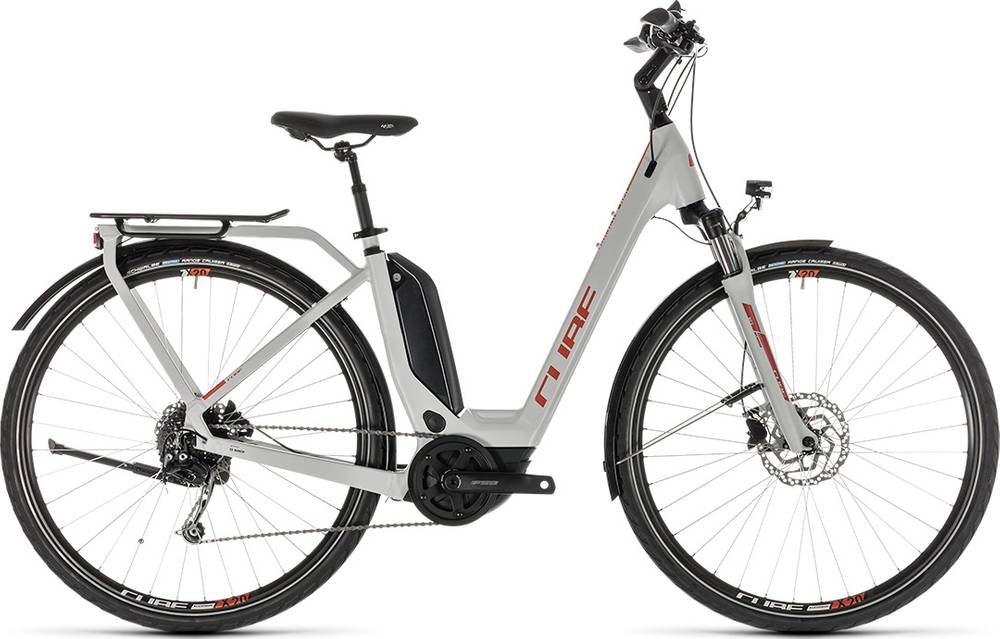

CUBE TOURING HYBRID 400 2019
2019 E-bike
Estimate price |
2,407$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Integrated Carrier 2.0
Suspension Fork
SR Suntour NEX-E25 HLO, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M592-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T, 165mm
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Range Cruiser, Active, K-Guard, 47-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm; EE: Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP Comfort
Headset
FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal Ariel
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.65 mm | 1.65 mm | 1.7 mm |
| Front Center | 636 mm | 644 mm | 654 mm | 666 mm |
| Rake | 42 mm | 42 mm | 39 mm | 36 mm |
| Trail | 86 mm | 82 mm | 86 mm | 89 mm |
| Stack | 626 mm | 638 mm | 652 mm | 680 mm |
| Reach | 378 mm | 387 mm | 395 mm | 400 mm |
| Top Tube Length | 570 mm | 581 mm | 592 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm | 195 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1106 mm | 1114 mm | 1124 mm | 1136 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
TOURING HYBRID 400 completes the Cube E Touring model. CUBE released 81 e-bikes variations of this model so far. Take a sneak peek at all Cube E Touring e-bikes models from 2019, by clicking here.
Model range prices
CUBE TOURING HYBRID ONE 400 Trapeze 2019 is the cheapest e-bike model and costs 1910$. CUBE TOURING HYBRID SL 500 KIOX Trapeze 2019 is the most expensive one and costs 3821$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2019 and its price was 2229$. If we compare this with the average Hybrid e-bike cost we notice that the price is 11.26% smaller.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CUBE TOURING HYBRID 400 it’s weighing 23.8 kg (52.47 lbs). At this weight, is slightly heavier than average. In other words, this model is 0.04% heavier than the average Hybrid e-bike.
TOURING HYBRID 400 components
Fork
CUBE TOURING HYBRID 400 2019 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the TOURING HYBRID 400 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE TOURING HYBRID 400 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
