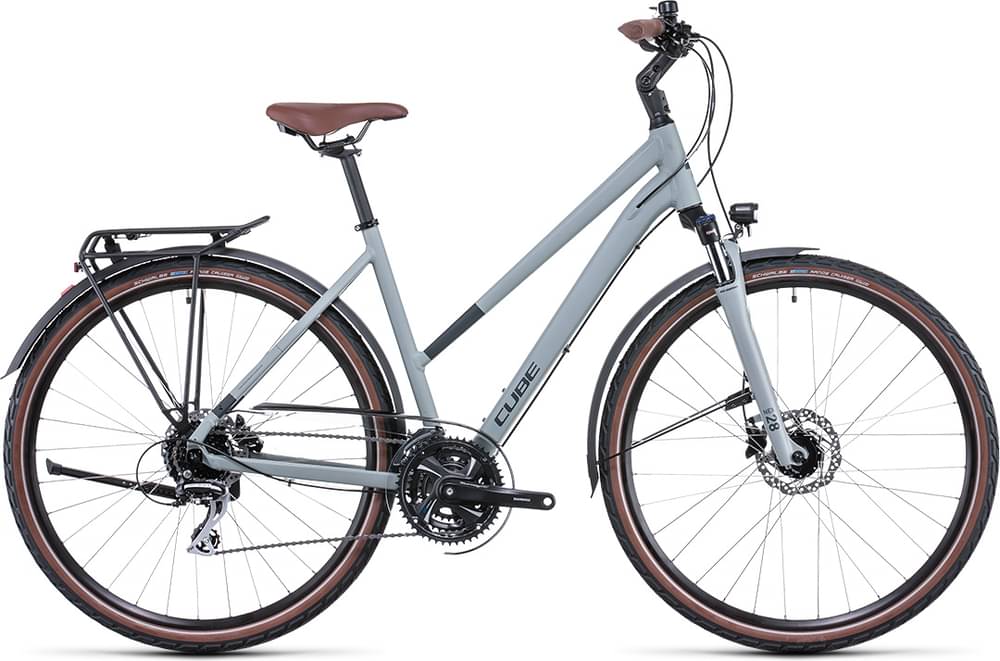

CUBE TOURING PRO Trapeze 2022
2022 Urban
Estimate price |
859$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort, Double Butted
Suspension Fork
SR Suntour NEX HLO, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M360, 8-Speed
Front Derailleur
Shimano FD-M310, Topswing, 31.8mm
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-T801, 48x36x26T, 175mm
Chain
KMC Z51
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Range Cruiser, Active, 47-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 660mm
Grips
Natural Fit Comfort
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.7 mm | 1.76 mm |
| Front Center | 610 mm | 619 mm | 636 mm |
| Rake | 33 mm | 32 mm | 33 mm |
| Trail | 89 mm | 86 mm | 85 mm |
| Stack | 632 mm | 634.4 mm | 667.3 mm |
| Reach | 359.3 mm | 373.7 mm | 378.5 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1050 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 710 mm | 714 mm | 738 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
TOURING PRO Trapeze belongs to the Cube Touring model. There are 53 bikes that carry this model name. Take a sneak peek at all Cube Touring bikes models from 2022, by clicking here.
Model range prices
CUBE TOURING Trapeze 2022 is the cheapest bike model and costs 721$. CUBE TOURING EXC 2022 is the most expensive one and costs 955$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 795$. In conclusion, this bike price is 41.46% more expensive than the price of the average Hybrid bike.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, TOURING PRO Trapeze has a weight of 16.9 kg (37.26 lbs). In short, the average Hybrid bike weight is 22.02% lower than this one.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on TOURING PRO Trapeze are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TOURING PRO Trapeze comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
CUBE TOURING PRO Trapeze bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
