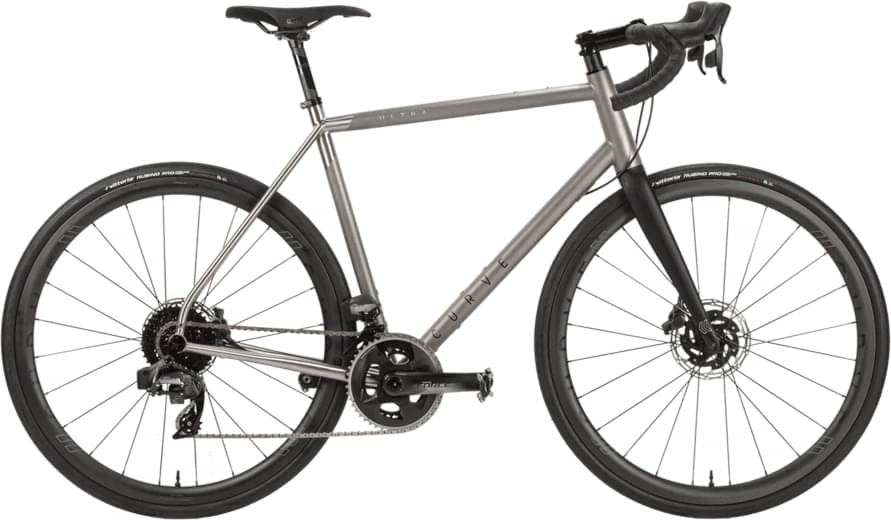

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
46cm
147cm - 157cm
49cm
155cm - 165cm
52cm
161cm - 170cm
54cm
168cm - 177cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 201cm
64cm
198cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium Curve Belgie Ultra
Suspension Fork
Curve 700c Road Disc
Drivetrain
Shift Levers
Force eTap AXS 2x12 sp - LHR / RHF
Cassette
XG 1270 10-36t 12sp
Crank
Force 2x12sp DUB 48/35t
Bottom Bracket
Curve T47 DUB 68mm
Chain
Force 12sp
Wheels
Tires
Rubino Pro TLR 700 x 30c
Brakes
Brakes
Force eTap AXS HRD Flat Mount Disc, CLX R CL Rotors 160mm
Cockpit
Handlebar
Zipp SC SL Beyond Black
Headset
Curve Integrated 42/52cmm semi-internal
Seat
Saddle
fi’zi:k Vento Argo R5
Seatpost
Zipp SC SL - Zero Setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.44 mm | 1.48 mm | 1.53 mm | 1.57 mm | 1.6 mm | 1.59 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 585 mm | 591 mm | 595 mm | 601 mm | 611 mm | 620 mm | 632 mm | 642 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 73 mm | 70 mm | 67 mm | 63 mm | 64 mm | 61 mm | 61 mm | 60 mm |
| Stack | 517 mm | 529 mm | 543 mm | 565 mm | 588 mm | 613 mm | 632 mm | 641 mm |
| Reach | 368 mm | 373 mm | 378 mm | 381 mm | 384 mm | 390 mm | 396 mm | 403 mm |
| Top Tube Length | 520 mm | 529 mm | 537 mm | 547 mm | 556 mm | 580 mm | 592 mm | 602 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm | 640 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 135 mm | 148 mm | 170 mm | 195 mm | 220 mm | 240 mm | 250 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 420 mm | 420 mm | 422 mm | 422 mm |
| Wheelbase | 991 mm | 996 mm | 1001 mm | 1007 mm | 1021 mm | 1030 mm | 1044 mm | 1054 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 155 cm | 161 cm | 168 cm | 175 cm | 182 cm | 190 cm | 198 cm |
| Rider Max Height | 157 cm | 165 cm | 170 cm | 177 cm | 185 cm | 193 cm | 201 cm | 208 cm |
Model Overview
Belgie ULTRA is a Curve Belgie model. 22 bikes variations carry this model name so far. You can easily view all of the Curve Belgie bikes models from 2021, here.
Model range prices
Curve Belgie V3 2021 is the most economical model, with a starting price of 4752$. Curve Belgie DISC 2021 on the other hand costs 5789$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4752$. Comparing the average cost of a Race bike to this one, you will see that Belgie ULTRA price is 41.85% more expensive.
Overview of components
Wheels size
The Belgie ULTRA 2021 bike is equipped with 700c wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Curve Belgie ULTRA has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 8 sizes. They vary from 147 cm – 208 cm (4.82 ft – 6.82 ft). In conclusion, finding one for you shouldn’t be a problem.
