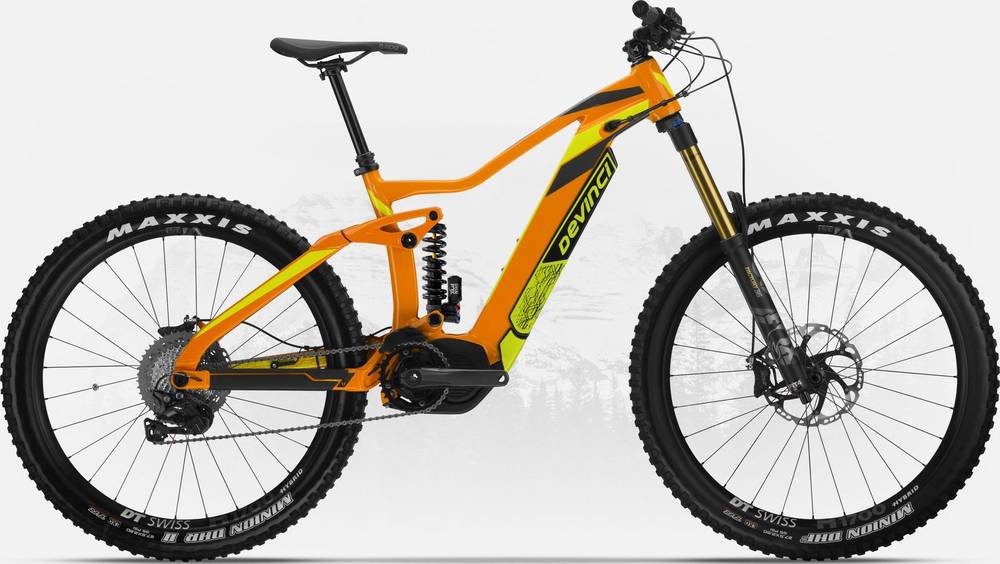

Devinci AC XT 2018
2018 E-bike
Estimate price |
6,899$
Weight | 24.15 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Fork Fox Factory Float 36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS E8020 Lithium-ion -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Float 36 Factory Evol 27.5 Boost 110 180mm
Rear Shock
Fox DHX2 Factory Series 205x65 400
Drivetrain
Rear Derailleur
Shimano XT M8000 11s
Shift Levers
Shimano XT M8000
Cassette
Shimano M8000-11s 11-46T
Crank
Shimano E8050 HollowTech
Chain
Shimano HG701-11s
Chain Guide
E13 Chain Guide for Steps
Wheels
Rims
DT Swiss H1700 27.5 15x110mm, TL Ready
Tires
Maxxis Minion DHF 27.5x2.8" 3C, EXO, Tubeless Ready,
Brakes
Brakes
Shimano Zee M640
Cockpit
Stem
Race Face Turbine 35mm*50mm
Handlebar
Race Face Turbine R35 20mm Rise 800mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Fly Mtn
Seatpost
Fox Transfer Perfomance SM-100mm MD-125mm LG/XL-150mm
Motor & Battery
Motor
Shimano STEPS E8000 20Mph
Battery
Shimano STEPS E8020 Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.4 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 359.5 mm | 364 mm | 364 mm | 358.5 mm | 364 mm | 375.5 mm | 352.5 mm | 364 mm |
| Stack | 583 mm | 591 mm | 600 mm | 604 mm | 609 mm | 613 mm | 619 mm | 622 mm |
| Reach | 423 mm | 423 mm | 443 mm | 438 mm | 463 mm | 458 mm | 478 mm | 483 mm |
| Top Tube Length | 572 mm | 575 mm | 598 mm | 600 mm | 621 mm | 623 mm | 645 mm | 646 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 74.5 ° | 75 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 442 mm | 441 mm | 441 mm | 443 mm | 441 mm | 443 mm | 444 mm | 441 mm |
| Wheelbase | 1177 mm | 1196 mm | 1220 mm | 1221 mm | 1244 mm | 1245 mm | 1253 mm | 1270 mm |
| Bottom Bracket Drop | -4 mm | -9 mm | -9 mm | -3 mm | -9 mm | -20 mm | 3 mm | -9 mm |
| Standover Height | 708 mm | 726 mm | 737 mm | 731 mm | 763 mm | 757 mm | 778 mm | 792 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
AC XT belongs to the Devinci E Ac model. Devinci released 8 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Devinci AC NX/GX 2018 is the most affordable e-bike of this model and has a price of 5799$. On the other hand, Devinci AC XT 2018, is the most expensive and costs 6899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6899$. Doing a quick comparison, we notice that AC XT price is 44.18% higher than the average cost of an Enduro e-bike.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Devinci AC XT it’s weighing 24.15 kg (53.24 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.12% heavier than the average weight of Enduro e-bikes.
AC XT components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the AC XT e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The AC XT has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
The Devinci model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
