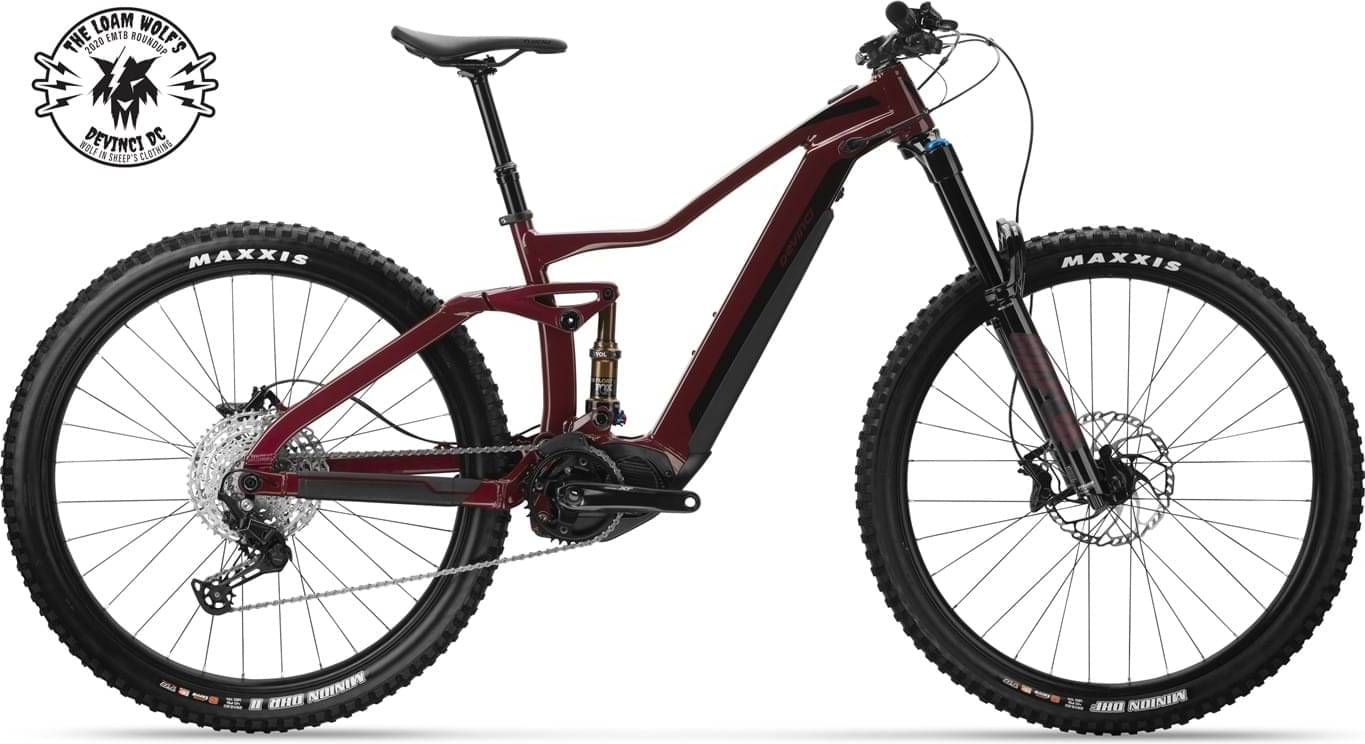

Devinci DC Deore 12S 2022
2022 E-bike
Estimate price |
6,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 38
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035 | 504Wh | Lithium-ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 150mm
Suspension Fork
Fox Float 38 Performance E-Bike Grip 160 | 51 Offset
Rear Shock
Fox Float DPS Performance Elite Evol LV Trunnion |185x55
Drivetrain
Rear Derailleur
Shimano Deore M6100 | 12s
Shift Levers
Shimano Deore M6100 | 12s
Cassette
Shimano M6100 | 12s | 10-51T | Microspline
Crank
Shimano STEPS SM-CRE80 | 36T
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore M6100 | 12s
Chain Guide
E*thirteen E*Spec PLus | ISCG05
Wheels
Front Hub
Formula DC-711 | Sealed | 6bolts | TA 15x110mm
Rear Hub
Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline
Rims
V2 Comp | 36mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Shimano MT520/MT501 | 4 Pistons
Disk Rotors
Shimano RT66 | 203mm
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Motor & Battery
Motor
Shimano STEPS EP800 | 250W | 85Nm
Battery
Shimano STEPS E8035 | 504Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.36 mm | 1.38 mm | 1.31 mm | 1.34 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 357 mm | 350 mm | 357 mm | 350 mm | 357 mm | 350 mm | 357 mm | 350 mm |
| Stack | 614 mm | 618 mm | 614 mm | 618 mm | 623 mm | 627 mm | 632 mm | 636 mm |
| Reach | 433 mm | 428 mm | 453 mm | 448 mm | 474 mm | 468 mm | 494 mm | 488 mm |
| Top Tube Length | 576 mm | 578 mm | 597 mm | 598 mm | 619 mm | 621 mm | 642 mm | 644 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° | 66 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 461 mm | 463 mm | 461 mm | 463 mm | 461 mm | 463 mm | 461 mm | 463 mm |
| Wheelbase | 1216 mm | 1217 mm | 1236 mm | 1237 mm | 1260 mm | 1261 mm | 1284 mm | 1285 mm |
| Bottom Bracket Drop | 17 mm | 24 mm | 17 mm | 24 mm | 17 mm | 24 mm | 17 mm | 24 mm |
| Standover Height | 746 mm | 740 mm | 753 mm | 748 mm | 777 mm | 771 mm | 803 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
Model Overview
DC Deore 12S belongs to the Devinci E Dc model. Devinci released 10 e-bikes variations of this model so far. You can easily view all of the Devinci E Dc e-bikes models from 2022, here.
Model range prices
Devinci DC Deore 12S 2022 is the cheapest e-bike model and costs 6199$. Devinci DC XT 12S 2022 is the most expensive one and costs 7856$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 6199$. Comparing the average cost of an Enduro e-bike to this one, you will see that DC Deore 12S price is 29.55% higher.
Overview of components
Fork
The Fox Performance Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance Elite Evol LV Trunnion |185×55 rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on DC Deore 12S are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The DC Deore 12S has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
DC Deore 12S comes in 8 sizes, that range from 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the DC Deore 12S. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
