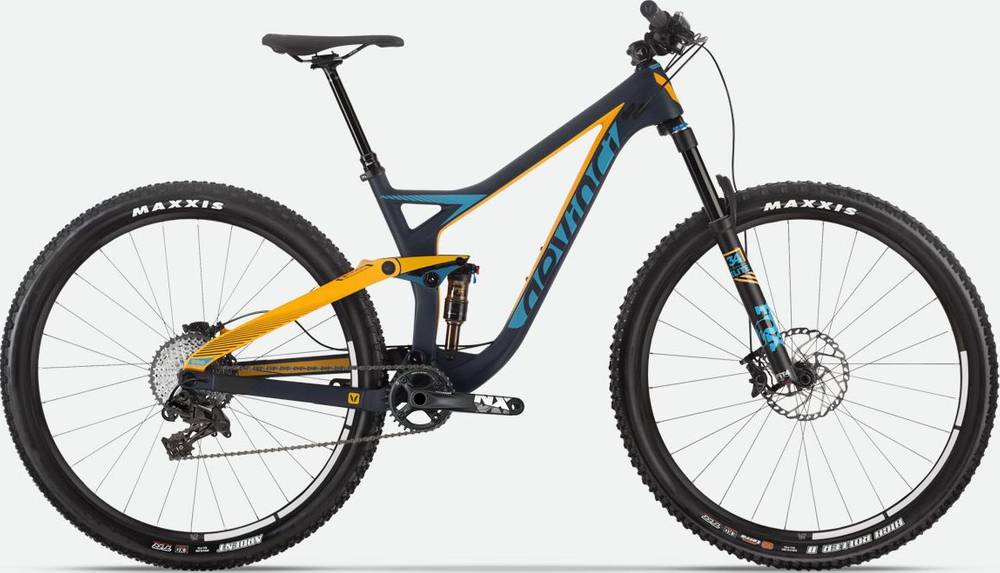

Devinci Django Carbon 29 NX 2017
2017 Mountain
Estimate price |
3,809$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm
Suspension Fork
Fox Rhythm 34 Float 29 Boost 110 130mm
Rear Shock
Fox Float Factory Series, 7.25x1.75
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM 11s 11-42T
Crank
SRAM NX 30T Boost 148
Bottom Bracket
SRAM BB92
Chain
Shimano 11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp db
Spokes
Stainless 14G w/Nylok
Tires
Maxxis High Roller II 29x2.3" Exo TL
Brakes
Brakes
SRAM Level T
Cockpit
Stem
V2 Pro 35mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack w/SL bearing
Seat
Saddle
SDG Bel-Air
Seatpost
FSA ajustable 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.35 mm | 1.37 mm | 1.32 mm | 1.33 mm |
| Bottom Bracket Height | 341 mm | 336 mm | 341 mm | 336 mm | 341 mm | 336 mm | 341 mm | 336 mm |
| Stack | 610 mm | 612 mm | 610.5 mm | 612.5 mm | 619 mm | 621 mm | 629 mm | 631 mm |
| Reach | 417 mm | 413 mm | 437 mm | 433 mm | 457 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 574 mm | 575 mm | 594 mm | 595 mm | 618 mm | 619 mm | 641 mm | 642 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 68.5 ° | 68 ° | 68.5 ° | 68 ° | 68.5 ° | 68 ° | 68.5 ° | 68 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 425 mm | 427 mm | 425 mm | 427 mm | 425 mm | 427 mm | 425 mm | 427 mm |
| Wheelbase | 1133 mm | 1135 mm | 1154 mm | 1155 mm | 1178 mm | 1179 mm | 1202 mm | 1203 mm |
| Bottom Bracket Drop | 33 mm | 38 mm | 33 mm | 38 mm | 33 mm | 38 mm | 33 mm | 38 mm |
| Standover Height | 716 mm | 710 mm | 729 mm | 723 mm | 747 mm | 741 mm | 754 mm | 748 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Django Carbon 29 NX is part of the Devinci Django model. 66 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Devinci Django S 2017 is the most economical model, with a starting price of 2299$. Devinci Django Carbon 29 X01 12s 2017 on the other hand costs 6819$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Devinci released this model in 2017, its price was 3809$. Comparing this to the average Trail bike price, we see that the price is 37.91% higher.
Django Carbon 29 NX components
Fork
Devinci Django Carbon 29 NX 2017 bike is equipped with the Fox Rhythm Float 34 fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Django Carbon 29 NX has a rear shock with a travel of 120mm. The model Fox Float Factory Series is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Devinci Django Carbon 29 NX 2017, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
