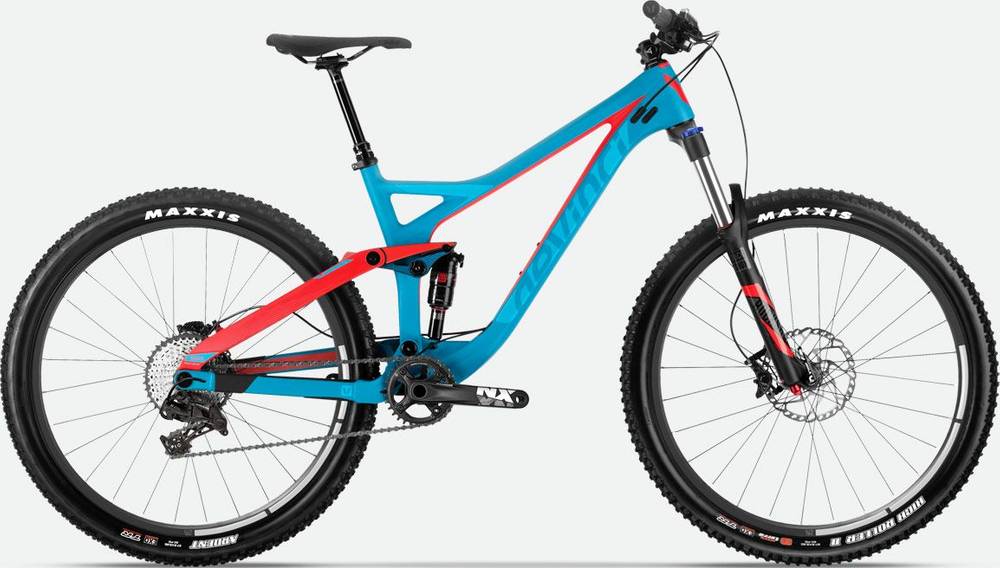

Devinci Django Carbon NX 2017
2017 Mountain
Estimate price |
3,539$
Weight | 14.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm
Suspension Fork
RockShox Sektor RL 27.5 Solo Air Boost 130mm
Rear Shock
RockShox Monarch RT3 7.25x1.75 Debonair High Volume Eyelet
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM 11s 11-42T
Crank
SRAM NX 30T Boost 148
Bottom Bracket
SRAM BB92
Chain
Shimano 11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp db
Spokes
Stainless 14G w/Nylok
Tires
Maxxis HighRoller II 27.5x2.3" 3C Compound EXO protection
Brakes
Brakes
SRAM Level T
Cockpit
Stem
V2 Pro 35mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack w/SL bearing
Seat
Saddle
SDG Bel-Air
Seatpost
FSA ajustable 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.34 mm | 1.36 mm | 1.29 mm | 1.32 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 334 mm | 340 mm | 334 mm | 340 mm | 334 mm | 340 mm | 334 mm |
| Stack | 577 mm | 581 mm | 586 mm | 590 mm | 595 mm | 599 mm | 609 mm | 613 mm |
| Reach | 418 mm | 413 mm | 437 mm | 433 mm | 461 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 567 mm | 568 mm | 590 mm | 591 mm | 613 mm | 615 mm | 638 mm | 640 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 418 mm | 420 mm | 418 mm | 420 mm | 418 mm | 420 mm | 418 mm | 420 mm |
| Wheelbase | 1119 mm | 1121 mm | 1143 mm | 1144 mm | 1167 mm | 1168 mm | 1193 mm | 1194 mm |
| Bottom Bracket Drop | 15 mm | 21 mm | 15 mm | 21 mm | 15 mm | 21 mm | 15 mm | 21 mm |
| Standover Height | 697 mm | 691 mm | 709 mm | 703 mm | 727 mm | 721 mm | 738 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Django Carbon NX belongs to the Devinci Django model. There are 66 bikes that carry this model name. You can easily view all of the Devinci Django bikes models from 2017, here.
Model range prices
Devinci Django S 2017 is the most economical model, with a starting price of 2299$. Devinci Django Carbon 29 X01 12s 2017 on the other hand costs 6819$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Devinci released this model in 2017, its price was 3539$. If we compare this with the average Trail bike cost we notice that the price is 28.13% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Devinci Django Carbon NX it’s weighing 14.36 kg (31.66 lbs). At this weight, is considerably heavier than average. In short, the average Trail bike weight is 10.63% lower than this one.
Django Carbon NX components
Fork
This bike has the RockShox Sektor fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is RockShox Monarch RT3 7.25×1.75 Debonair High Volume Eyelet, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Django Carbon NX are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Devinci Django Carbon NX is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
