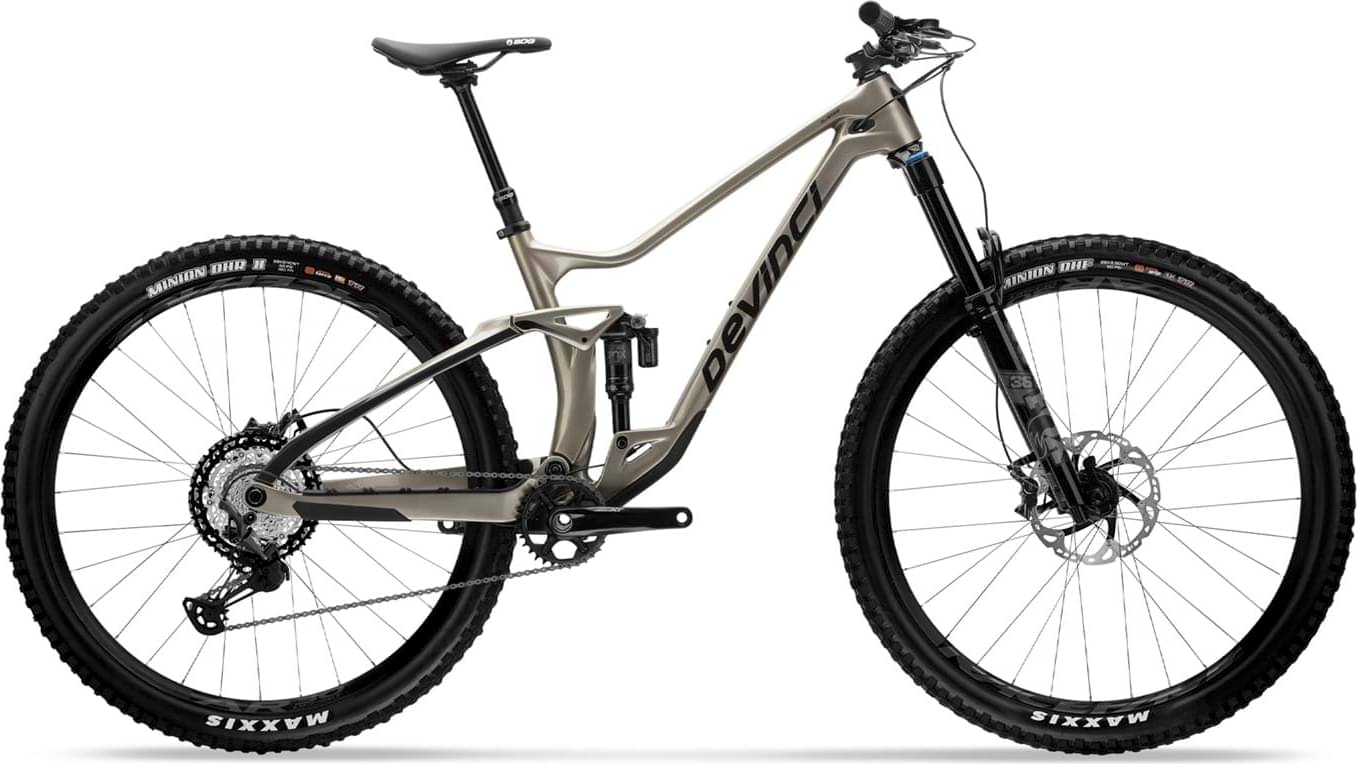

Devinci Django Carbon XT 12S LTD 2023
2023 Mountain
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
150cm - 162cm
XS Low
150cm - 162cm
SM High
159cm - 171cm
SM Low
159cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 120mm
Suspension Fork
Fox 36 Performance Elite Grip2 140 | 44 Offset
Rear Shock
Fox Float DPS Performance Elite | 0.8VSpacer | 190x45
Drivetrain
Rear Derailleur
Shimano XT M8100 | 12s
Shift Levers
Shimano XT M8100 | 12s | I-spec EV
Cassette
Shimano XT M8100 | 12s | 10-51T | Microspline
Crank
Shimano XT M8130-1 | 32T | SuperBoost 157
Bottom Bracket
Shimano MT801 | BSA | 68/73mm
Chain
Shimano M7100 | 12s
Wheels
Front Hub
RaceFace Vault | 6bolts | TA 15x110mm
Rear Hub
RaceFace Vault | 6bolts | TA 12x157mm | Microspline
Rims
RaceFace ARC30 | 30mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Front: Shimano XT M8120/M8100 | 4 Pistons, Rear: Shimano XT M8120/M8100 | 4 Pistons
Cockpit
Stem
RaceFace Turbine R35 | B:35mm | L:50mm | 0°
Handlebar
RaceFace Next R35 | B:35mm | R:20mm | W:800mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis 31.6mm | Travel 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm |
| Stack | 611 mm | 615 mm | 611 mm | 615 mm | 620 mm | 624 mm | 629 mm | 633 mm | 638 mm | 642 mm |
| Reach | 413 mm | 407 mm | 433 mm | 427 mm | 453 mm | 447 mm | 472 mm | 467 mm | 492 mm | 487 mm |
| Top Tube Length | 541 mm | 543 mm | 561 mm | 563 mm | 585 mm | 587 mm | 609 mm | 611 mm | 633 mm | 634 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78.1 ° | 77.6 ° | 77.9 ° | 77.4 ° | 77.8 ° | 77.3 ° | 77.6 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 430 mm | 430 mm | 465 mm | 465 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1140 mm | 1141 mm | 1160 mm | 1161 mm | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1242 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm |
| Standover Height | 715 mm | 710 mm | 725 mm | 720 mm | 740 mm | 735 mm | 755 mm | 750 mm | 765 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 150 cm | 159 cm | 159 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 162 cm | 162 cm | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
About this model
Django Carbon XT 12S LTD belongs to the Devinci Django model. There are 66 bikes that carry this model name. You can easily view all of the Devinci Django bikes models from 2023, here.
Model range prices
Devinci Django NX 12S 2023 is the most economical model, with a starting price of 2999$. Devinci Django Carbon XT 12S LTD 2023 on the other hand costs 6499$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Devinci Django Carbon XT 12S LTD price was 6499$. If we compare this with the average Trail bike cost we notice that the price is 135.3% more expensive.
Overview of components
Fork
Devinci Django Carbon XT 12S LTD 2023 bike is equipped with the Fox Performance Elite Float 36 fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance Elite | 0.8VSpacer | 190×45 rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Django Carbon XT 12S LTD are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 150 cm – 198 cm (4.92 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
