Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
147cm - 160cm
XS Low
147cm - 160cm
SM High
157cm - 170cm
SM Low
157cm - 170cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
178cm - 187cm
LG Low
178cm - 187cm
XL High
185cm - 193cm
XL Low
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 120mm
Suspension Fork
RockShox Revelation RC DebonAir 140 | 2T | 42 Offset
Rear Shock
Rockshox Deluxe Select+ RL Debonair | 3T | 190x45
Drivetrain
Rear Derailleur
SRAM NX Eagle | 12s
Shift Levers
SRAM SX Eagle | 12s
Cassette
SRAM PG1210-12s 11-50T
Crank
SRAM | X1 1000 Eagle | DUB | 32T | SuperBoost 157
Bottom Bracket
SRAM DUB | BSA | 73mm
Chain
SRAM SX Eagle | 12s
Wheels
Front Hub
Novatec D791SB-B15 | 6bolts | TA 15x110mm
Rear Hub
Novatec DH92SB-SH TA 12x157 SH
Rims
V2 Comp | 29mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.5wt | 3C EXO TR, Rear: Maxxis Minion DHF | 29x2.5wt | 3C EXO TR
Brakes
Brakes
Front: SRAM Guide T, Rear: SRAM Guide T
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG FLY MTN
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.51 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.36 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm | 339 mm | 333 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 103 mm | 108 mm | 103 mm | 108 mm | 103 mm | 108 mm | 103 mm | 108 mm | 103 mm | 108 mm |
| Stack | 611 mm | 615 mm | 611 mm | 615 mm | 620 mm | 624 mm | 629 mm | 633 mm | 638 mm | 642 mm |
| Reach | 413 mm | 407 mm | 433 mm | 427 mm | 454 mm | 447 mm | 472 mm | 467 mm | 492 mm | 487 mm |
| Top Tube Length | 541 mm | 543 mm | 561 mm | 563 mm | 585 mm | 587 mm | 609 mm | 611 mm | 633 mm | 634 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78.1 ° | 77.6 ° | 77.9 ° | 77.4 ° | 77.8 ° | 77.3 ° | 77.6 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 400 mm | 400 mm | 430 mm | 430 mm | 465 mm | 465 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm |
| Wheelbase | 1140 mm | 1141 mm | 1160 mm | 1161 mm | 1184 mm | 1185 mm | 1213 mm | 1214 mm | 1242 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm | 35 mm | 41 mm |
| Standover Height | 734 mm | 727 mm | 739 mm | 732 mm | 741 mm | 733 mm | 766 mm | 759 mm | 789 mm | 782 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 157 cm | 157 cm | 168 cm | 168 cm | 178 cm | 178 cm | 185 cm | 185 cm |
| Rider Max Height | 160 cm | 160 cm | 170 cm | 170 cm | 180 cm | 180 cm | 187 cm | 187 cm | 193 cm | 193 cm |
About this model

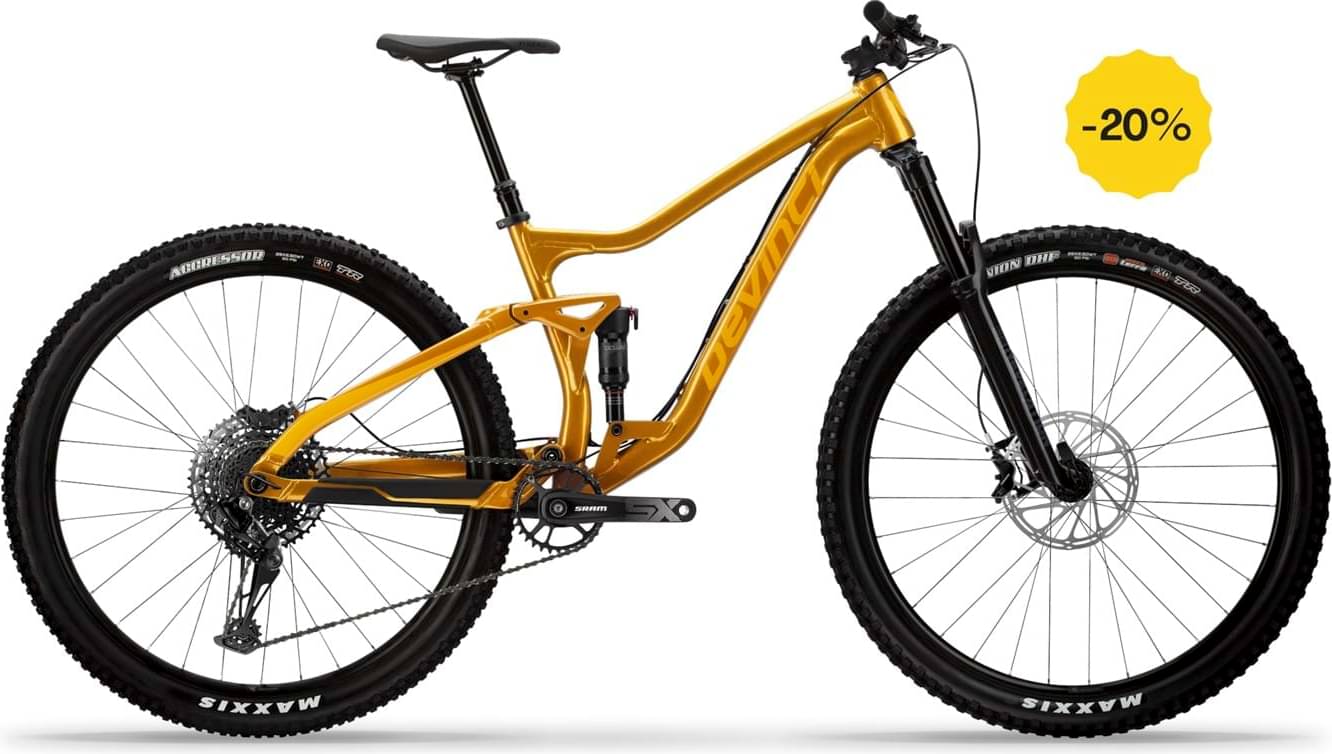

Django NX 12S is a Devinci Django model. 66 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Devinci Django NX 12S 2023 has a starting price of 2999$. Devinci Django Carbon XT 12S LTD 2023 on the other hand is the most expensive at 6499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Devinci released this model in 2023, its price was 2999$. In conclusion, this bike price is 8.58% higher than the price of the average Trail bike.
Django NX 12S components
Fork
Devinci Django NX 12S 2023 bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Django NX 12S has a rear shock with a travel of 120mm. The model Rockshox Deluxe Select+ RL Debonair | 3T | 190×45 is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Devinci Django NX 12S 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Django NX 12S comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Devinci Django NX 12S bike has 10 sizes, in the range of 147 cm – 193 cm (4.82 ft – 6.33 ft). In short, you can easily find one that suits you.
Dropper post
The Devinci model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
