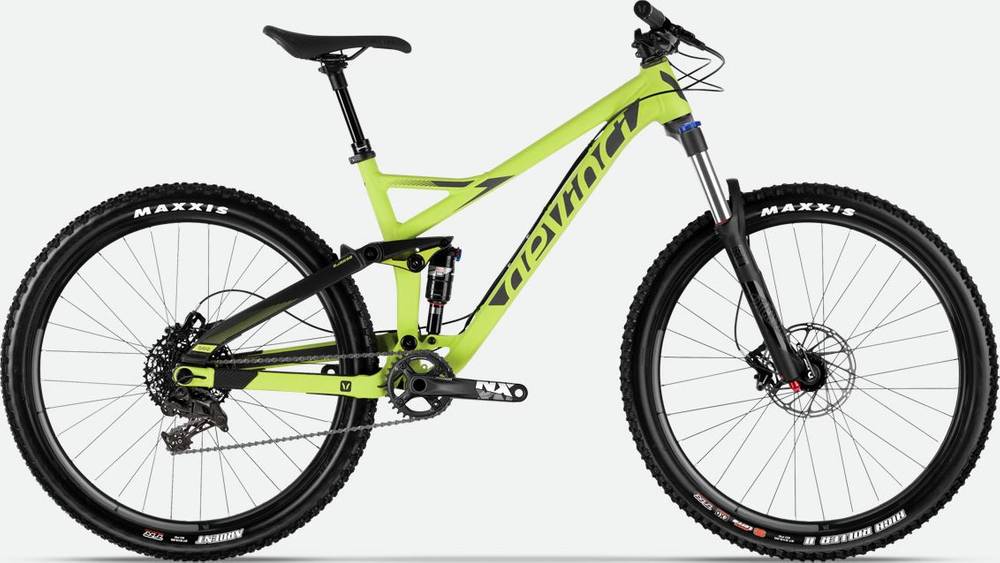

Devinci Django NX 2017
2017 Mountain
Estimate price |
2,829$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 120mm
Suspension Fork
RockShox Sektor RL 27.5 Solo Air Boost 130mm
Rear Shock
RockShox Monarch RT 7.25x1.75 Debonair High Volume Eyelet
Drivetrain
Rear Derailleur
SRAM NX 11s
Shift Levers
SRAM NX 11s
Cassette
SRAM 11s 11-42T
Crank
SRAM NX 30T Boost 148
Bottom Bracket
SRAM BB92
Chain
Shimano 11s
Wheels
Front Hub
Formula TA 110mm
Rear Hub
Formula Boost148
Rims
V2 Comp db
Spokes
Stainless 14G w/Nylok
Tires
Maxxis HighRoller II 27.5x2.3" 3C Compound EXO protection
Brakes
Brakes
SRAM Level T
Cockpit
Stem
V2 Pro 35mm
Handlebar
V2 Pro Riserbar 35mm 780mm
Grips
Devinci Performance w/lock-on
Headset
FSA Orbit 1.5 Zero Stack
Seat
Saddle
SDG Bel-Air
Seatpost
FSA ajustable 125mm 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.34 mm | 1.36 mm | 1.29 mm | 1.32 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 340.3 mm | 334 mm | 340 mm | 334.5 mm | 340 mm | 334 mm | 340 mm | 334.5 mm |
| Stack | 577.6 mm | 581 mm | 586 mm | 590.4 mm | 595 mm | 599 mm | 609 mm | 613.4 mm |
| Reach | 418 mm | 413 mm | 437 mm | 433 mm | 461 mm | 453 mm | 477 mm | 473 mm |
| Top Tube Length | 567 mm | 568 mm | 590 mm | 591.9 mm | 613 mm | 615 mm | 638 mm | 640 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 418 mm | 420 mm | 418 mm | 420 mm | 418 mm | 420 mm | 418 mm | 420 mm |
| Wheelbase | 1119 mm | 1121 mm | 1143 mm | 1144 mm | 1167 mm | 1168 mm | 1193 mm | 1194 mm |
| Bottom Bracket Drop | 15 mm | 21 mm | 15 mm | 21 mm | 15 mm | 21 mm | 15 mm | 21 mm |
| Standover Height | 697 mm | 691 mm | 709 mm | 703 mm | 727 mm | 721 mm | 738 mm | 732 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Django NX completes the Devinci Django model. There are 66 bikes that carry this model name. You can easily view all of the Devinci Django bikes models from 2017, here.
Model range prices
Devinci Django S 2017 is the most affordable bike of this model and has a price of 2299$. On the other hand, Devinci Django Carbon 29 X01 12s 2017, is the most expensive and costs 6819$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2829$. Doing a quick comparison, we notice that Django NX price is 2.43% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 15 kg (33.07 lbs), the Django NX model is much heavier than average. In other words, this model is 15.56% heavier than the average Trail bike.
Django NX components
Fork
This bike has the RockShox Sektor fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Monarch RT 7.25×1.75 Debonair High Volume Eyelet rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Django NX are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Django NX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
