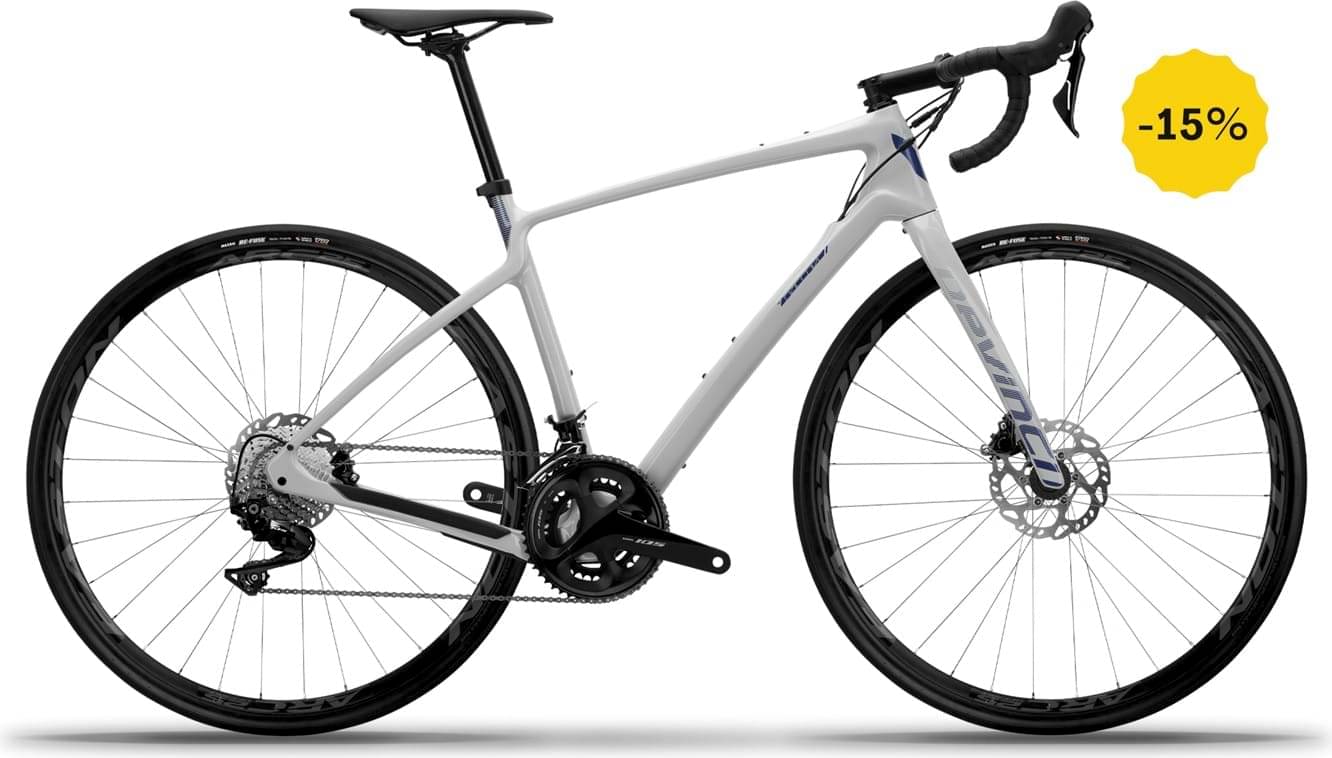

Devinci Hatchet Carbon 105 22S 2023
2023 Road
Estimate price |
3,429$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
157cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-R HR
Suspension Fork
Devinci Full Carbon
Drivetrain
Rear Derailleur
Shimano 105 R7000 | 11s
Front Derailleur
Shimano 105 R7000 | 2s
Shift Levers
Shimano 105 R7020/R7070
Cassette
Shimano 105 R7000 | 11s | 11-32T | SH
Crank
Shimano 105 R7000 | 50/34T
Bottom Bracket
FSA BB386/PF30 | Pressfit
Chain
Shimano HG601 | 11s
Wheels
Front Hub
Shimano 105 R7070 | Centerlock | TA 12x100mm
Rear Hub
Shimano 105 R7070 | Centerlock | TA 12x142mm | SH
Rims
Easton ARC25 | 25mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Re-fuse | 700x32c | MaxxShield TR
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
V2 Pro | B:31.8mm | 6°
Handlebar
V2 Pro | B:31.8mm | R:70mm | D:120mm
Headset
FSA Orbit | C40 | Integrated
Seat
Saddle
V2 Pro
Seatpost
V2 Elite | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.402 mm | 1.456 mm | 1.5 mm | 1.538 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Stack | 519 mm | 544 mm | 575 mm | 603 mm | 629 mm |
| Reach | 381 mm | 388 mm | 395 mm | 402 mm | 409 mm |
| Top Tube Length | 530 mm | 545 mm | 565 mm | 586 mm | 601 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 130 mm | 155 mm | 185 mm | 210 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1022 mm | 1035 mm | 1046 mm | 1062 mm | 1073 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 686 mm | 716 mm | 747 mm | 780 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 157 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 160 cm | 171 cm | 180 cm | 187 cm | 193 cm |
Model Overview
Hatchet Carbon 105 22S belongs to the Devinci Hatchet model. Devinci launched 65 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Devinci Hatchet Claris 16S 2023 is the most economical model, with a starting price of 1301$. Devinci Hatchet Carbon GRX RX810 11S 2023 on the other hand costs 4799$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Devinci Hatchet Carbon 105 22S price was 3429$. If we compare this with the average Gravel bike cost we notice that the price is 39.28% more expensive.
Hatchet Carbon 105 22S components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Hatchet Carbon 105 22S 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Devinci Hatchet Carbon 105 22S is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Hatchet Carbon 105 22S comes in 5 sizes, that range from 147 cm – 193 cm (4.82 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
