Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
157cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum R03
Suspension Fork
Devinci Full Carbon
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 | 10s
Front Derailleur
Shimano Tiagra 4700 | 2s
Shift Levers
Shimano Tiagra ST-4700 | 10s
Cassette
Shimano HG500 | 10s | 11-34T
Crank
FSA Vero | 50/34T
Chain
Shimano HG54
Wheels
Front Hub
Formula Disc | Sealed bearings | TA 12x100mm
Rear Hub
Formula Disc sealed bearings | TA 12x142mm
Rims
V2 Comp db | 21mm inner
Spokes
Stainless 14G
Tires
Maxxis Refuse | 700x32c
Brakes
Brakes
Shimano RS305 | Mechanic
Cockpit
Stem
V2 Pro | B:31.8mm | 6°
Handlebar
V2 Pro | B:31.8mm | R:70mm | D:120mm
Headset
FSA Orbit C40 | Integrated
Seat
Saddle
Devinci
Seatpost
Devinci | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.404 mm | 1.46 mm | 1.497 mm | 1.544 mm | 1.579 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm | 283 mm |
| Stack | 528 mm | 559 mm | 584 mm | 613 mm | 638 mm |
| Reach | 376 mm | 383 mm | 390 mm | 397 mm | 404 mm |
| Top Tube Length | 527 mm | 543 mm | 562 mm | 583 mm | 598 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 140 mm | 165 mm | 195 mm | 220 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1020 mm | 1033 mm | 1044 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 676 mm | 707 mm | 740 mm | 774 mm | 809 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 157 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 160 cm | 171 cm | 180 cm | 187 cm | 193 cm |
Model Overview

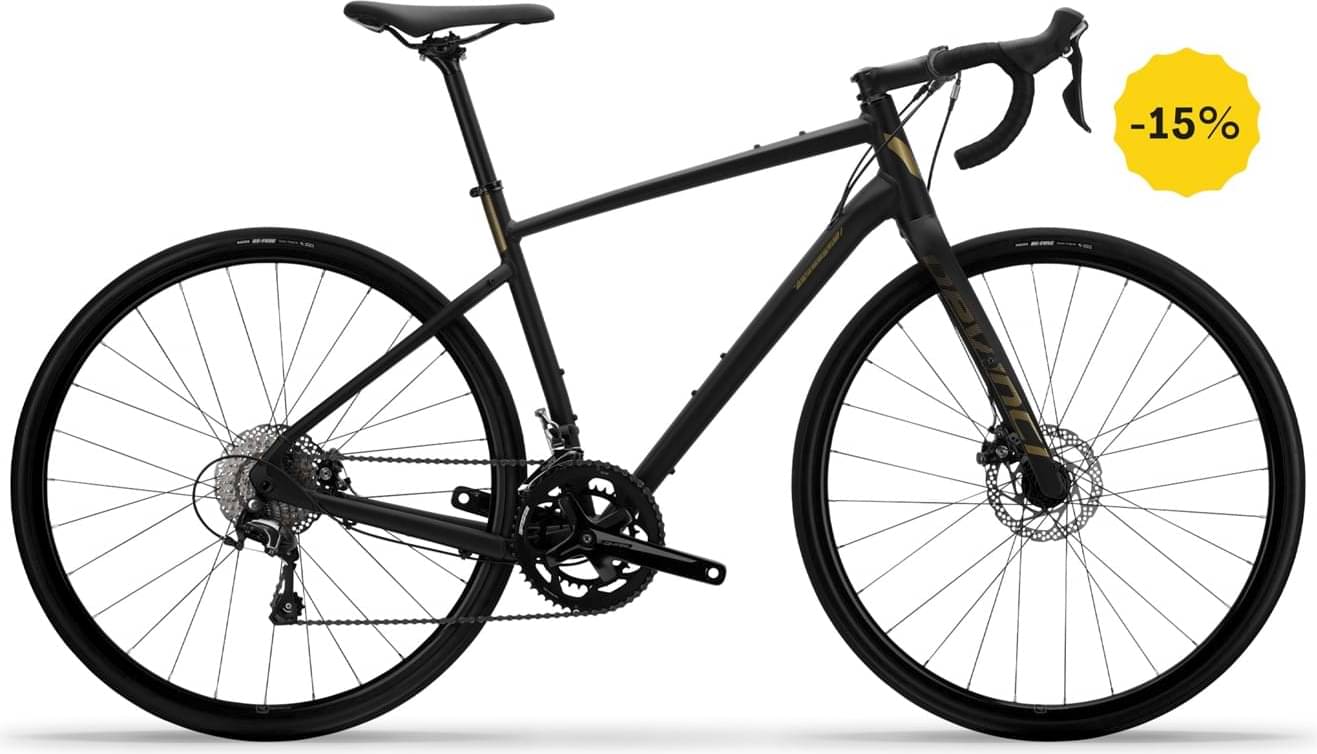

Hatchet Tiagra 20S completes the Devinci Hatchet model. There are 65 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Devinci Hatchet Claris 16S 2023 is the most economical model, with a starting price of 1301$. Devinci Hatchet Carbon GRX RX810 11S 2023 on the other hand costs 4799$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1590$. If we compare this with the average Gravel bike cost we notice that the price is 54.84% lower.
Hatchet Tiagra 20S components
Fork material
Hatchet Tiagra 20S has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Hatchet Tiagra 20S model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Hatchet Tiagra 20S has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Hatchet Tiagra 20S comes in 5 sizes, that range from 147 cm – 193 cm (4.82 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
