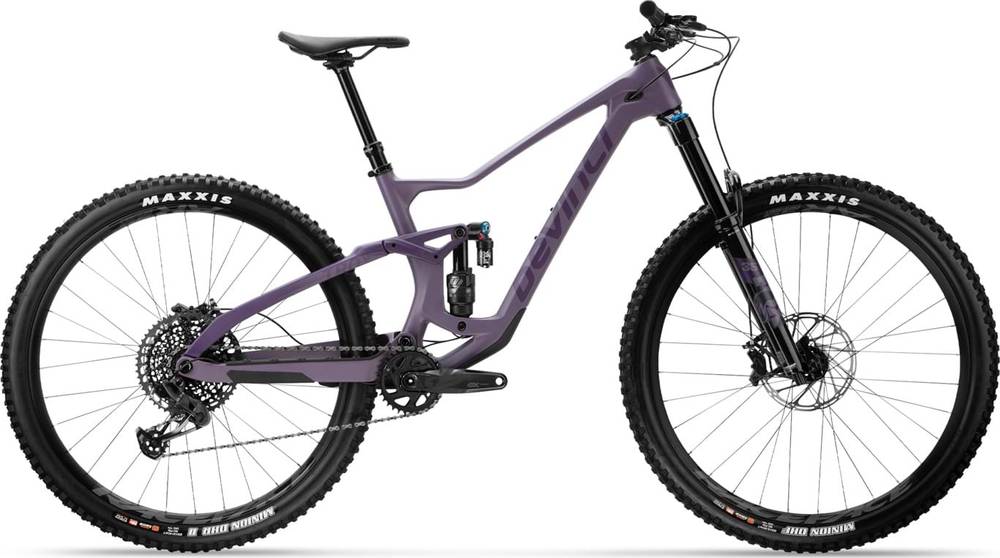

Devinci Troy Carbon GX 12S 2021
2021 Mountain
Estimate price |
5,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm
Suspension Fork
Fox Float 36 Performance Grip 150 | 44 Offset
Rear Shock
Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185x52.5
Drivetrain
Rear Derailleur
SRAM GX Eagle | 12s
Shift Levers
SRAM GX Eagle | 12s
Cassette
SRAM XG1275 | 12s | 10-52T | XD
Crank
SRAM GX Eagle | DUB | 32T | SuperBoost 157
Bottom Bracket
SRAM DUB | BSA | 73mm
Chain
SRAM GX Eagle | 12s
Wheels
Front Hub
Factor XD601SB/A | 6bolts | TA 15x110mm
Rear Hub
Factor XDH62SB/A | 6bolts | TA 12x157mm | XD
Rims
RaceFace AR35 Offset | 35mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
SRAM Code R | 4 Pistons
Disk Rotors
SRAM Centerline | 200mm
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis | 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.391 mm | 1.327 mm | 1.35 mm | 1.291 mm | 1.315 mm | 1.257 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm |
| Stack | 608 mm | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 445 mm | 440 mm | 465 mm | 460 mm | 485 mm | 480 mm | 505 mm | 500 mm |
| Top Tube Length | 573 mm | 574 mm | 597 mm | 598 mm | 625 mm | 626 mm | 654 mm | 655 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78 ° | 77.5 ° | 77.4 ° | 76.9 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 400 mm | 400 mm | 420 mm | 420 mm | 445 mm | 445 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 435 mm | 433 mm | 435 mm | 438 mm | 440 mm | 443 mm | 445 mm |
| Wheelbase | 1189 mm | 1190 mm | 1213 mm | 1215 mm | 1243 mm | 1244 mm | 1272 mm | 1273 mm |
| Bottom Bracket Drop | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm |
| Standover Height | 717 mm | 712 mm | 739 mm | 734 mm | 755 mm | 750 mm | 768 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
Model Overview
Troy Carbon GX 12S is a Devinci Troy model. Devinci released 66 bikes variations of this model so far. Take a sneak peek at all Devinci Troy bikes models from 2021, by clicking here.
Model range prices
Devinci Troy SX 12S 2021 is the most economical model, with a starting price of 2999$. Devinci Troy Carbon XT 12S LTD 2021 on the other hand costs 6699$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5799$. Comparing the average cost of a Trail bike to this one, you will see that Troy Carbon GX 12S price is 109.96% higher.
Overview of components
Fork
The Troy Carbon GX 12S comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185×52.5, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Devinci Troy Carbon GX 12S 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 8 sizes. They vary from 160 cm – 198 cm (5.25 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Devinci model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
