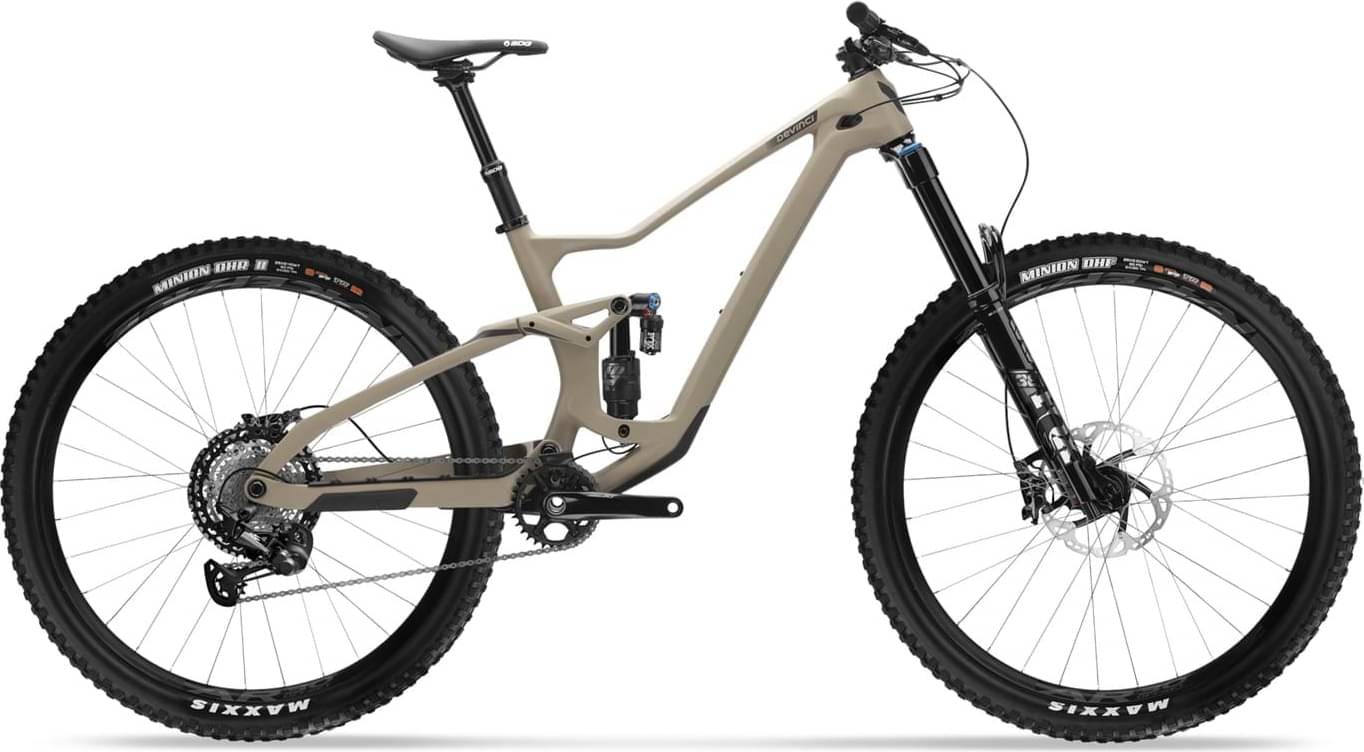

Devinci Troy Carbon XT 12S 2022
2022 Mountain
Estimate price |
9,037$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-G 140mm
Suspension Fork
Fox Float 36 Performance Elite Grip2 160 | 44 Offset
Rear Shock
Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185x52.5
Drivetrain
Rear Derailleur
Shimano XT M8100 | 12s
Shift Levers
Shimano XT M8100 | 12s | I-spec EV
Cassette
Shimano XT M8100 | 12s | 10-51T | Microspline
Crank
Shimano XT M8130-1 | 32T | SuperBoost 157
Bottom Bracket
Shimano MT801 | BSA | 68/73mm
Chain
Shimano M7100 | 12s
Chain Guide
E*thirteen Vario | ISCG05
Wheels
Front Hub
RaceFace Vault | 6bolts | TA 15x110mm
Rear Hub
RaceFace Vault | 6bolts | TA 12x157mm | Microspline
Rims
RaceFace ARC30 | 30mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.5wt | 3C MaxxGrip DoubleDown TR
Brakes
Brakes
Shimano XT M8120/M8100 | 4 Pistons
Disk Rotors
Shimano RT76 | 203mm
Cockpit
Stem
RaceFace Turbine R35 | B:35mm | L:40mm | 0°
Handlebar
RaceFace Next R35 | B:35mm | R:20mm | W:800mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis | 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.391 mm | 1.327 mm | 1.35 mm | 1.291 mm | 1.315 mm | 1.257 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm |
| Stack | 608 mm | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 445 mm | 440 mm | 465 mm | 460 mm | 485 mm | 480 mm | 505 mm | 500 mm |
| Top Tube Length | 573 mm | 574 mm | 597 mm | 598 mm | 625 mm | 626 mm | 654 mm | 655 mm |
| Seat Tube Angle | 78.1 ° | 77.6 ° | 78 ° | 77.5 ° | 77.4 ° | 76.9 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 400 mm | 400 mm | 420 mm | 420 mm | 445 mm | 445 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 435 mm | 433 mm | 435 mm | 438 mm | 440 mm | 443 mm | 445 mm |
| Wheelbase | 1189 mm | 1190 mm | 1213 mm | 1215 mm | 1243 mm | 1244 mm | 1272 mm | 1273 mm |
| Bottom Bracket Drop | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm |
| Standover Height | 738 mm | 733 mm | 759 mm | 754 mm | 775 mm | 769 mm | 786 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
About this model
Troy Carbon XT 12S completes the Devinci Troy model. Devinci launched 66 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Devinci Troy SX 12S 2022 is the cheapest bike model and costs 3779$. Devinci Troy Carbon XT 12S 2022 is the most expensive one and costs 8366$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 8366$. Comparing this to the average Trail bike price, we see that the price is 202.9% more expensive.
Overview of components
Fork
Devinci Troy Carbon XT 12S 2022 bike is equipped with the Fox Performance Elite Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185×52.5, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Troy Carbon XT 12S model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Troy Carbon XT 12S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Devinci Troy Carbon XT 12S bike has 8 sizes, in the range of 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Devinci Troy Carbon XT 12S comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
