Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset SX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 140mm
Suspension Fork
RockShox Revelation RC Debonair 150 | 1T | 42 Offset
Rear Shock
RockShox SuperDeluxe Select R Db. Trunnion | 2T |185x52.5
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle | 12s
Cassette
SRAM PG1210-12s 11-50T
Crank
SRAM | X1 1000 Eagle | DUB | 32T | SuperBoost 157
Bottom Bracket
SRAM DUB | BSA | 73mm
Chain
SRAM SX Eagle | 12s
Wheels
Front Hub
Novatec D791SB-B15 | 6bolts | TA 15x110mm
Rear Hub
Novatec DH92SB-SH TA 12x157 SH
Rims
V2 Comp | 29mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.5wt | 3C EXO TR, Rear: Maxxis Minion DHF | 29x2.5wt | 3C EXO TR
Brakes
Brakes
Front: SRAM Guide T, Rear: SRAM Guide T
Cockpit
Stem
V2 Pro | B:35mm | L:40mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG FLY MTN
Seatpost
TranzX | 34.9mm | 1x Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.366 mm | 1.391 mm | 1.327 mm | 1.35 mm | 1.291 mm | 1.315 mm | 1.257 mm | 1.28 mm |
| Bottom Bracket Height | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm | 348 mm | 341 mm |
| Stack | 608 mm | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm |
| Reach | 445 mm | 440 mm | 465 mm | 460 mm | 485 mm | 480 mm | 505 mm | 500 mm |
| Top Tube Length | 573 mm | 574 mm | 597 mm | 598 mm | 625 mm | 626 mm | 654 mm | 655 mm |
| Seat Tube Angle | 78.2 ° | 77.6 ° | 78 ° | 77.5 ° | 77.4 ° | 76.9 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 400 mm | 400 mm | 420 mm | 420 mm | 445 mm | 445 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 433 mm | 435 mm | 433 mm | 435 mm | 438 mm | 440 mm | 443 mm | 445 mm |
| Wheelbase | 1189 mm | 1190 mm | 1213 mm | 1215 mm | 1243 mm | 1244 mm | 1272 mm | 1273 mm |
| Bottom Bracket Drop | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm | 26 mm | 33 mm |
| Standover Height | 740 mm | 735 mm | 741 mm | 736 mm | 760 mm | 755 mm | 793 mm | 788 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |

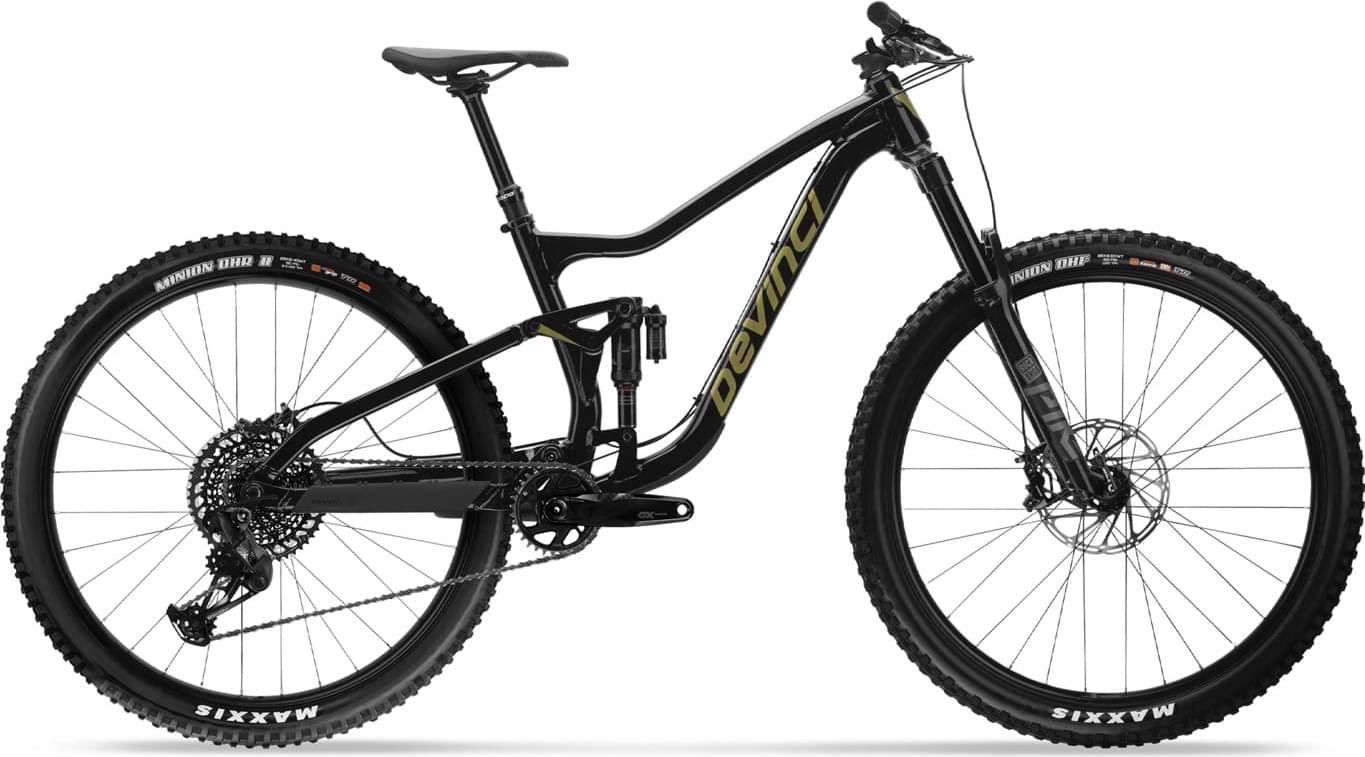

Model Overview
Troy SX 12S is a Devinci Troy model. There are 66 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Devinci Troy SX 12S 2022 is the most affordable bike of this model and has a price of 3779$. On the other hand, Devinci Troy Carbon XT 12S 2022, is the most expensive and costs 8366$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3779$. Comparing this to the average Trail bike price, we see that the price is 36.82% more expensive.
Troy SX 12S components
Fork
Devinci Troy SX 12S 2022 bike is equipped with the RockShox Revelation RC fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox SuperDeluxe Select R Db. Trunnion | 2T |185×52.5, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Troy SX 12S model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Troy SX 12S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Devinci Troy SX 12S bike has 8 sizes, in the range of 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
