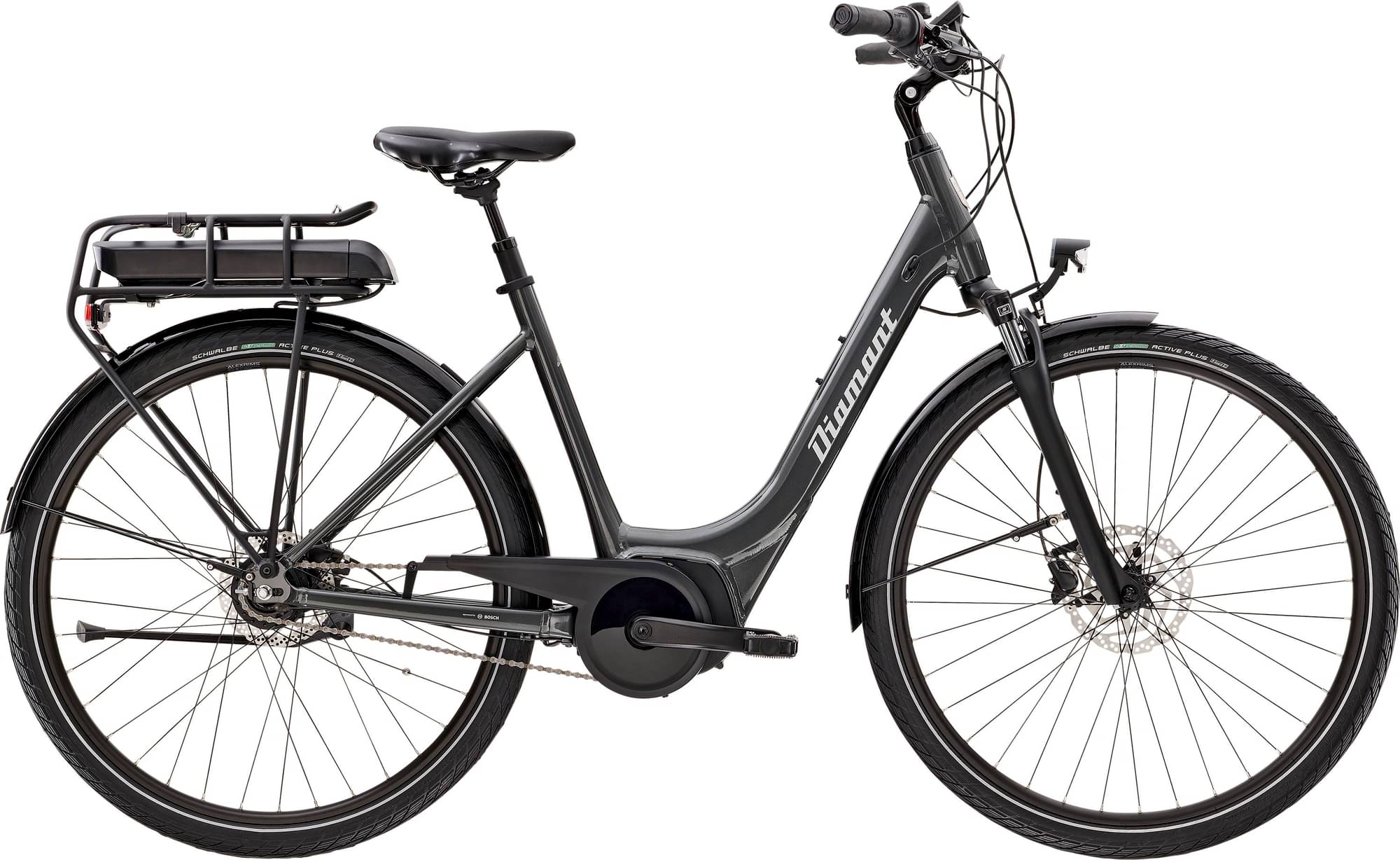

diamant Turmalin Deluxe+ 2023
2023 E-bike
Estimate price |
4,283$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Powerpack Performance 500 rack type -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, internal cable routing, drive belt compatible, post mount disc brake mount
Suspension Fork
SR Suntour NEX, coil spring, adjustable spring preload, 50 mm travel, 100 x 5 mm quick release axle
Drivetrain
Shift Levers
Shimano Nexus Revo, 8-speed
Cassette
18 z.
Crank
ProWheel, aluminum, 170 mm crank arm length
Chain
Shimano HG40, 6/7/8-speed
Pedals
non-slip pedals with reflectors
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano Nexus 8 shift hub
Rims
Hollow chamber aluminum rims with eyelets
Brakes
Brakes
Hydraulic Shimano MT200 disc brake or hydraulic C-Star Power disc brake, according to availability Shimano RT10, Center Lock disc mount, 180 mm
Cockpit
Stem
Aluminum, adjustable, 25.4 mm, length 85 mm
Handlebar
Aluminum, 25.4mm clamp, 20mm rise, 630mm width
Seat
Saddle
Selle Royal Nuvola
Seatpost
Aluminum, spring-loaded, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Active Line Plus, 250 watts, 50 Nm, 25 km/h
Battery
Bosch Powerpack Performance 500 rack type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.674 mm | 1.638 mm | 1.68 mm | 1.616 mm |
| Front Center | 64 mm | 65 mm | 65 mm | 67 mm |
| Rake | 9.5 mm | 9.5 mm | 9.5 mm | 9.5 mm |
| Trail | 125 mm | 125 mm | 126 mm | 126 mm |
| Seat Tube Angle | 71 ° | 71 ° | 70 ° | 70 ° |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 4 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm |
About this model
Turmalin Deluxe+ completes the Diamant E Turmalin model. Diamant released 4 e-bikes variations of this model so far. You can easily view all of the Diamant E Turmalin e-bikes models from 2023, here.
Model range prices
Diamant Turmalin+ 2023 is the most affordable e-bike of this model and has a price of 3638$. On the other hand, Diamant Turmalin Deluxe+ 2023, is the most expensive and costs 3860$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3860$. Doing a quick comparison, we notice that Turmalin Deluxe+ price is 55.65% more expensive than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.81 kg (52.49 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 26.1 kg (57.54 lbs), the Turmalin Deluxe+ model is a bit heavier than average. To sum up, it’s 9.62% heavier than the average weight of Hybrid e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Diamant Turmalin Deluxe+ 2023 e-bike is equipped with the Suntour NEX fork, and has 50mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Diamant Turmalin Deluxe+ 2023, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamant Turmalin Deluxe+ is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 147 cm – 187 cm (4.82 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
