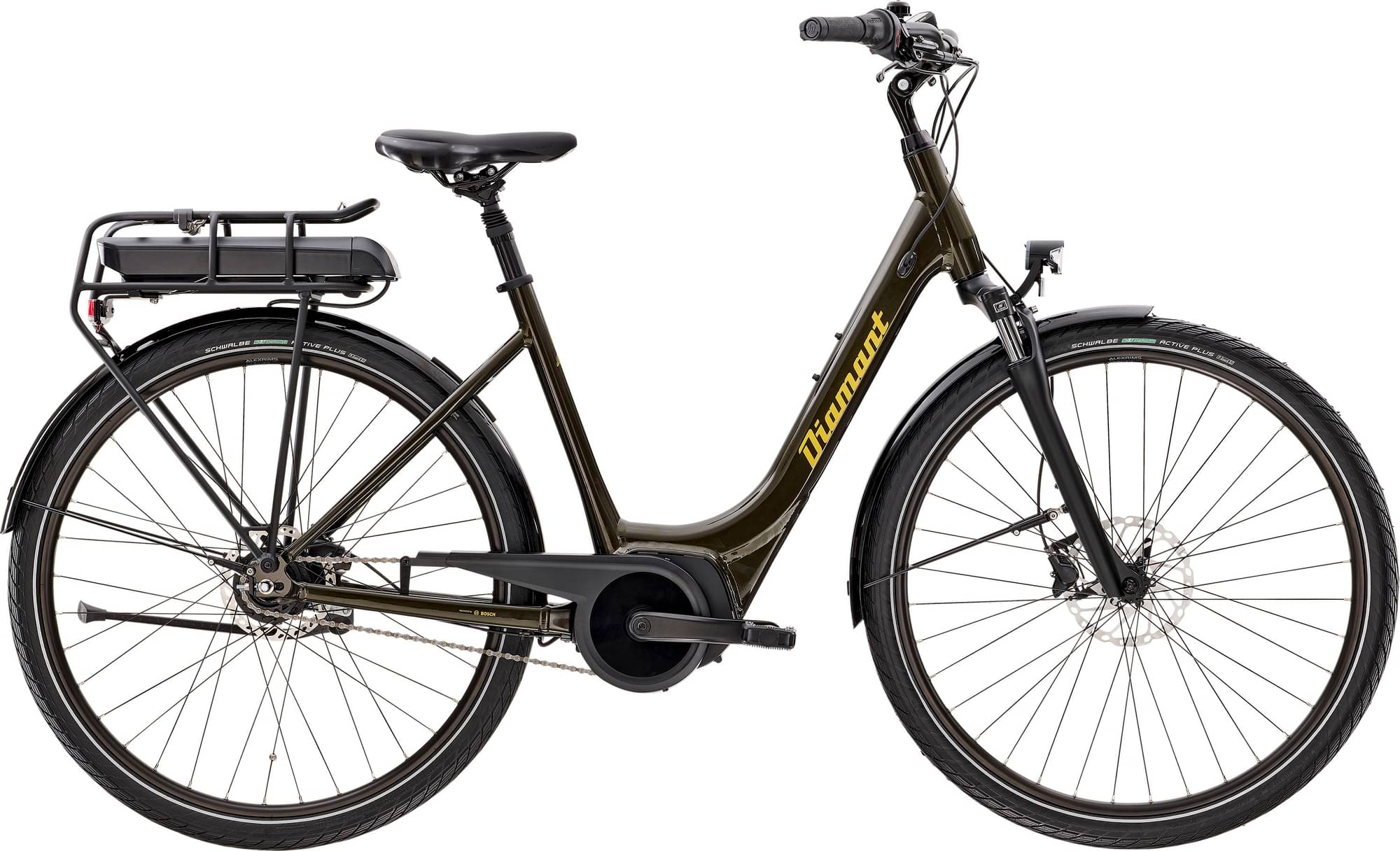

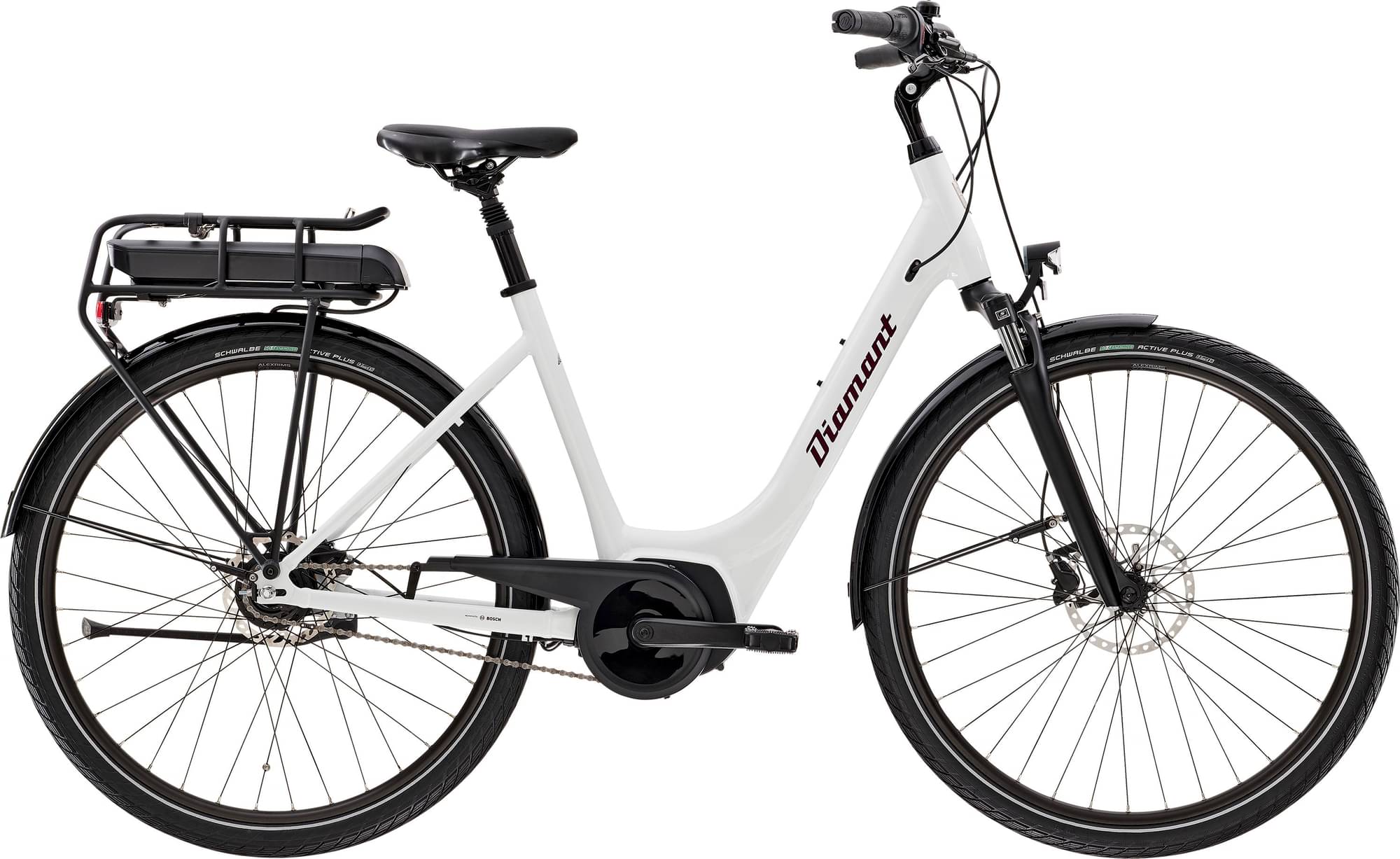

diamant Turmalin+ 2023
2023 E-bike
Estimate price |
4,036$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Powerpack Performance 400 rack type -
Drivetrain Internally Geared Hub -
Brakes Coaster
Sizing
Recommended size guide.
XS
147cm - 156cm
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, internal cable routing, drive belt compatible, post mount disc brake mount
Suspension Fork
SR Suntour NEX, coil spring, adjustable spring preload, 50 mm travel, 100 x 5 mm quick release axle
Drivetrain
Shift Levers
Shimano Nexus Revo, 8-speed
Cassette
18 z.
Crank
ProWheel, aluminum, 170 mm crank arm length
Chain
Shimano HG40, 6/7/8-speed
Pedals
non-slip pedals with reflectors
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano Nexus 8 gear hub with coaster brake
Rims
Hollow chamber aluminum rims with eyelets
Brakes
Brakes
Hydraulic Shimano MT200 disc brake or hydraulic C-Star Power disc brake, according to availability Shimano RT64, Centerlock disc mount, 180 mm
Cockpit
Stem
Aluminum, adjustable, 25.4 mm, length 85 mm
Handlebar
Aluminum, 25.4mm clamp, 20mm rise, 630mm width
Seat
Saddle
Selle Royal Nuvola
Seatpost
Aluminum, spring-loaded, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Active Line Plus, 250 watts, 50 Nm, 25 km/h
Battery
Bosch Powerpack Performance 400 rack type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.674 mm | 1.638 mm | 1.68 mm | 1.616 mm |
| Front Center | 64 mm | 65 mm | 65 mm | 67 mm |
| Rake | 9.5 mm | 9.5 mm | 9.5 mm | 9.5 mm |
| Trail | 125 mm | 125 mm | 126 mm | 126 mm |
| Seat Tube Angle | 71 ° | 71 ° | 70 ° | 70 ° |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 4 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 147 cm | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 156 cm | 167 cm | 177 cm | 187 cm |
About this model
Turmalin+ completes the Diamant E Turmalin model. Diamant launched 4 e-bikes of this model so far. You can easily view all of the Diamant E Turmalin e-bikes models from 2023, here.
Model range prices
Diamant Turmalin+ 2023 is the cheapest e-bike model and costs 3638$. Diamant Turmalin Deluxe+ 2023 is the most expensive one and costs 3860$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3638$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Turmalin+ price is 46.69% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.81 kg (52.49 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Turmalin+ has a weight of 26.1 kg (57.54 lbs). In other words, this model is 9.62% heavier than the average Hybrid e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Turmalin+ components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Turmalin+ e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Coaster brakes. Coaster brakes are among the oldest brake types you can find on a bike. However, if your chain falls off or snaps, your coaster brakes won’t function anymore.
Sizes
This e-bike is available in 4 sizes. They vary from 147 cm – 187 cm (4.82 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
