Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 100mm -
Fork SunTour XCM
-
Groupset Acera, Alivio -
Suspension Full -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Atroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Seat Tube Routed for Internal Dropper Post, Aggressive Geometry, Replaceable Hanger
Suspension Fork
SR Suntour XCM 120mm Travel, 30mm Stanchions, w/ Preload Adjust
Rear Shock
Kindshock, Coil Shock, 184x44mm
Drivetrain
Rear Derailleur
Shimano Acera M360, 8 Speed
Front Derailleur
Shimano Alivio M410, E-Type
Shift Levers
Shimano Acera SL-M310, 3x8 Speed
Cassette
Shimano HG-31, 8 Speed, 11-32T
Crank
SR Suntour XCC, 42/32/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z51, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
Formula Hubs, 32h Alloy w/ CNC Disc Mount
Rear Hub
Formula Hubs, 32h Alloy Cassette w/ CNC Disc mount
Rims
DDM-2, 32h, 27.5 Doublewall
Spokes
14g Stainless Steel
Tires
VEE Rubber - Trax 27.5x2.35
Brakes
Brakes
Tektro Aries Mechanical Disc, w/ 180mm Front and 160mm Rear Rotors
Brake Levers
Tektro 2 Finger Alloy Linear w/ Reach Adjust
Cockpit
Stem
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar
Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
New DB "Flanged" 135mm Silcone
Headset
Ahead 1 1/8" Zero Stack
Seat
Saddle
DB Sync'r Saddle
Seatpost
Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 660 mm | 695 mm | 726 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm |
| Stack | 556 mm | 556 mm | 565 mm |
| Reach | 370 mm | 405 mm | 432 mm |
| Top Tube Length | 547 mm | 582 mm | 612 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1092 mm | 1127 mm | 1158 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 752 mm | 768 mm | 772 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

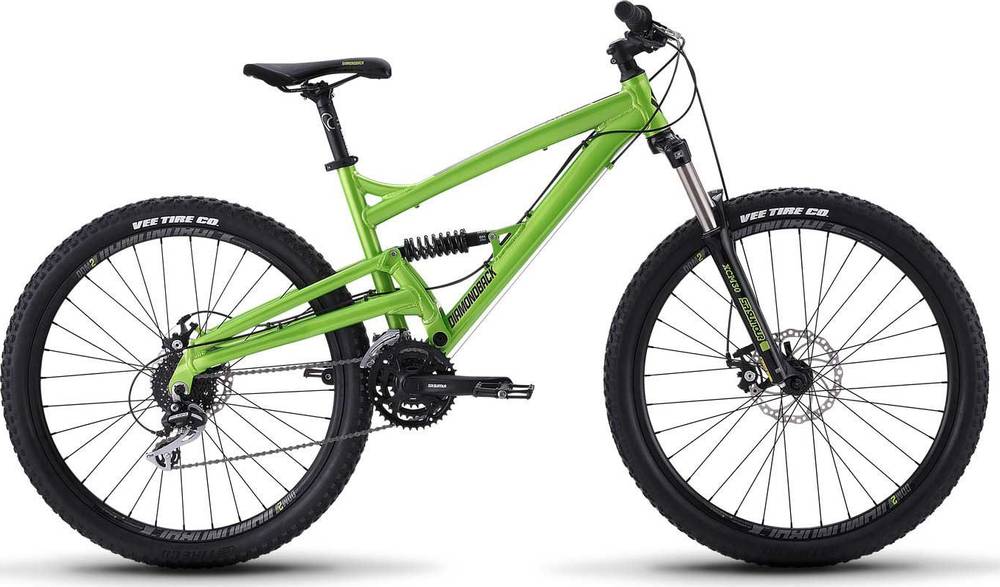

Atroz 1 is a Diamondback Atroz model. There are 22 bikes that carry this model name. You can easily view all of the Diamondback Atroz bikes models from 2019, here.
Model range prices
The most economical model, the Diamondback Atroz 1 2019 has a starting price of 699$. Diamondback Atroz 3 2019 on the other hand is the most expensive at 1399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 699$. Comparing the average cost of a Crosscountry bike to this one, you will see that Atroz 1 price is 172.53% smaller.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Atroz 1 components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Atroz 1 has a rear shock with a travel of 100mm. The model Kindshock is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Atroz 1 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Atroz 1 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
