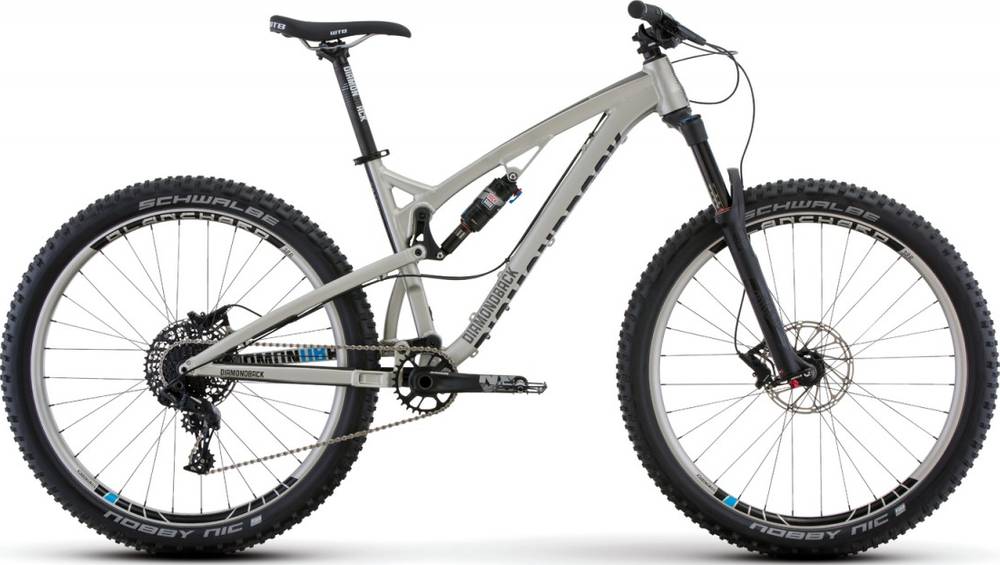

Diamondback Catch 1 2017
2017 Mountain
Estimate price |
1,799$
Weight | 15.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
RockShox Yari RC 27+, 130mm Travel, w/ Rebound and Compression Damping, 35mm Stanchion, 1.5" Alloy Taper Steerer, w/ Boost 110x15mm Thru-axle
Rear Shock
RockShox Monarch R DebonAir, 200x57mm
Drivetrain
Rear Derailleur
SRAM NX X-Horizon, 11 Speed
Shift Levers
SRAM NX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1130, 11 Speed, 11-42T
Crank
SRAM NX 1x, w/ X-Sync 30T Chain Ring
Bottom Bracket
SRAM GXP
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 38R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Schwalbe Nobby Nic 27.5x2.8" Performance, Folding,
Brakes
Brakes
SRAM Level Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Cockpit
Stem
DB35 Alloy, 50mm Reach, 35mm Bar Bore
Handlebar
DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge
Seat
Saddle
WTB Volt Comp
Seatpost
DB Alloy Micro Adjust, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 689 mm | 714 mm | 740 mm | 766 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 593 mm | 593 mm | 602 mm | 611 mm |
| Reach | 396 mm | 421 mm | 443 mm | 466 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1128 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 740 mm | 734 mm | 740 mm | 739 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Catch 1 is part of the Diamondback Catch model. Diamondback released 12 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Catch 1 2017 is the most affordable bike of this model and has a price of 1799$. On the other hand, Diamondback Catch 2 2017, is the most expensive and costs 2299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Diamondback Catch 1 price was 1799$. Comparing this to the average Trail bike price, we see that the price is 53.53% smaller.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 15.15 kg (33.4 lbs), the Catch 1 model is much heavier than average. In conclusion, the average Trail bike weighs 16.72% less than Catch 1.
Overview of components
Fork
The Catch 1 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
Diamondback Catch 1 bike has the RockShox Monarch R DebonAir model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Diamondback Catch 1 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Catch 1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Diamondback Catch 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
