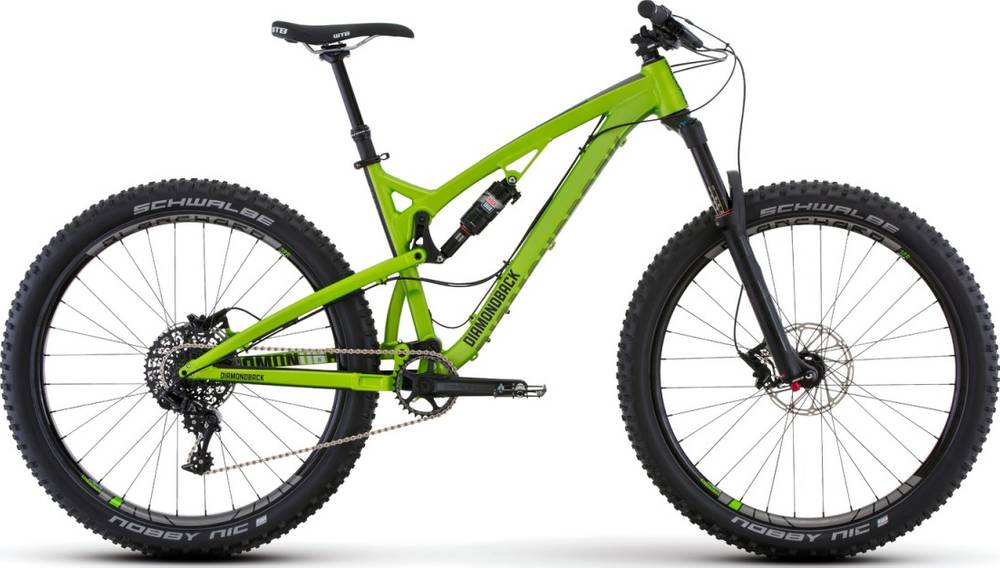

Diamondback Catch 2 2017
2017 Mountain
Estimate price |
2,299$
Weight | 14.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Pike RC
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
RockShox Pike RC 27+, 130mm Travel, w/ Rebound and Compression Damping, 35mm Stanchion, 1.5" Alloy Taper Steerer, w/ Boost 110x15mm Thru-axle
Rear Shock
RockShox Monarch RT3 DebonAir, 200x57mm
Drivetrain
Rear Derailleur
SRAM GX X-Horizon, 11 Speed
Shift Levers
SRAM GX 11 Speed X-Actuation Trigger
Cassette
SRAM XG1150, 11 Speed, 10-42T
Crank
Race Face Æfect SL, 30T Direct Mount "Narrow Wide" Single Ring, Boost Compatible
Bottom Bracket
Raceface Outboard Bearing
Chain
KMC X11EL, 11 Speed
Pedals
DB4L CNC Platform, Sealed Cartidge Bearing w/ Replaceable Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/ XD Cassette Body
Rims
Diamondback Blanchard 38R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Schwalbe Nobby Nic 27.5x2.8", SnakeSkin, Folding, TL-Easy Tubeless Compatible
Brakes
Brakes
SRAM Level T Hydraulic Disc, w/ 180mm Front / 180mm Rear Centerline Rotors
Brake Levers
SRAM Level Hydraulic Levers w/ Tooled Reach Adjust
Cockpit
Stem
DB35 Alloy, 50mm Reach, 35mm Bar Bore
Handlebar
DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge
Seat
Saddle
WTB Volt Race
Seatpost
KS LEV Integra Dropper, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 689 mm | 714 mm | 740 mm | 766 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 593 mm | 593 mm | 602 mm | 611 mm |
| Reach | 396 mm | 421 mm | 443 mm | 466 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1128 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 740 mm | 734 mm | 740 mm | 739 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Catch 2 is a Diamondback Catch model. Diamondback launched 12 bikes of this model so far. Take a sneak peek at all Diamondback Catch bikes models from 2017, by clicking here.
Model range prices
The most economical model, the Diamondback Catch 1 2017 has a starting price of 1799$. Diamondback Catch 2 2017 on the other hand is the most expensive at 2299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 2299$. Comparing this to the average Trail bike price, we see that the price is 20.14% smaller.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Catch 2 weighs 14.61 kg (32.21 lbs) and is considerably heavier than the average. To sum up, it’s 12.56% heavier than the average weight of Trail bikes.
Catch 2 components
Fork
The fork installed on this bike is the RockShox Pike RC model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT3 DebonAir model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Diamondback Catch 2 2017, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Catch 2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Diamondback model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
