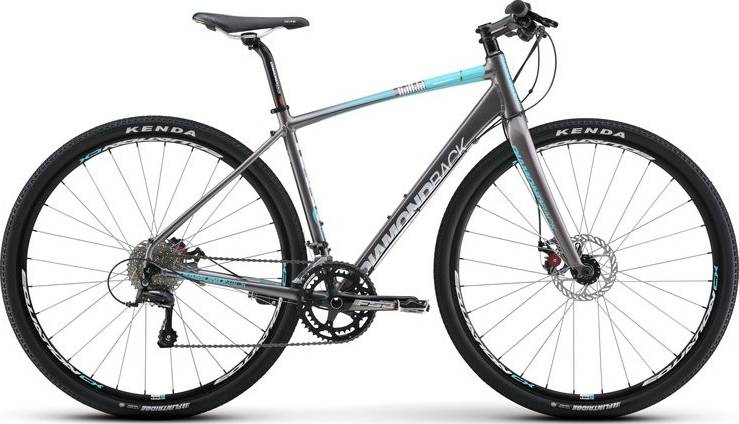

Diamondback Haanjenn 2017
2017 Urban
Estimate price |
899$
Weight | 10.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Women's Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Disc Only w/ Replaceable Hanger
Suspension Fork
DB Alloy Gravel Disc w/ 1.5" Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000, 9 Speed
Front Derailleur
Shimano Sora FD-3500, 31.8 Band Clamp
Shift Levers
Shimano Sora SL-3500, Flat Bar, 2x9 Speed
Cassette
Shimano Tiagra HG50, 9 Speed, 11-32T
Crank
FSA Gossamer Cross Mega Exo, 46/36T
Bottom Bracket
FSA Mega Exo
Chain
KMC Z99, 9 Speed
Pedals
DB Laser Alloy Platform
Wheels
Front Hub
28h Alloy w/ CNC Disc Mount
Rear Hub
28h Alloy w/ CNC Disc Mount, Cassette
Rims
DB Equation CX 700c 28h, Doublewall
Spokes
14g Stainless Steel
Tires
Kenda Flintridge, 700x35c
Brakes
Brakes
Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Tektro 2 Finger Alloy Linear, For Flat Mount Disc
Cockpit
Stem
HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
DB Flat Bar, 680mm Wide, 31.8mm Bar Bore
Grips
Diamondback Dual Density Grip
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Performance Womens Road
Seatpost
HED Eroica, 6061 Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.51 mm | 1.56 mm | 1.57 mm |
| Front Center | 609 mm | 595 mm | 596 mm | 601 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 67 mm | 63 mm | 61 mm |
| Stack | 536 mm | 549 mm | 565 mm | 581 mm |
| Reach | 372 mm | 363 mm | 363 mm | 369 mm |
| Top Tube Length | 508 mm | 518 mm | 528 mm | 543 mm |
| Seat Tube Angle | 76 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1022 mm | 1008 mm | 1009 mm | 1014 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 717 mm | 741 mm | 767 mm | 793 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Haanjenn is a Diamondback Haanjenn model. Diamondback released 12 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Diamondback Haanjenn Metro 2017 has a starting price of 549$. Diamondback Haanjenn Comp 2017 on the other hand is the most expensive at 1499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Diamondback Haanjenn price was 899$. In conclusion, this bike price is 17.98% higher than the price of the average Commuter bike.
Average weight for Commuter bikes
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Haanjenn weighs 10.65 kg (23.48 lbs) and is much lighter than the average. In short, the average Commuter bike weight is 34.18% higher than this one.
Haanjenn components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Haanjenn are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Haanjenn comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
