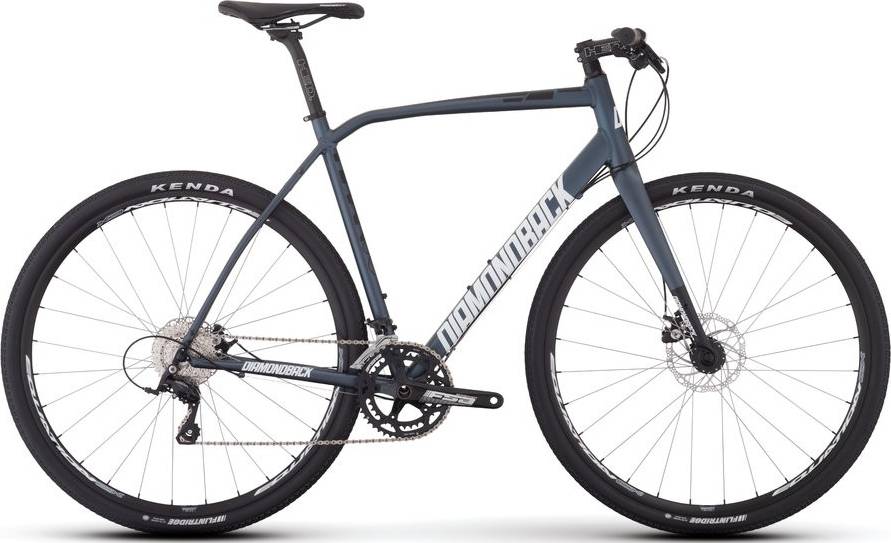

Diamondback Haanjo 2017
2017 Road
Estimate price |
899$
Weight | 9.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Disc Only w/ Replaceable Hanger
Suspension Fork
DB Alloy Gravel Disc w/ 1.5" Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000, 9 Speed
Front Derailleur
Shimano Sora FD-3500, 31.8 Band Clamp
Shift Levers
Shimano Sora SL-3500, Flat Bar, 2x9 Speed
Cassette
Shimano Tiagra HG50, 9 Speed, 11-32T
Crank
FSA Gossamer Cross Mega Exo, 46/36T
Bottom Bracket
FSA Mega Exo
Chain
KMC Z99, 9 Speed
Pedals
DB Laser Alloy Platform
Wheels
Front Hub
28h Alloy w/ CNC Disc Mount
Rear Hub
28h Alloy w/ CNC Disc Mount, Cassette
Rims
DB Equation CX 700c 28h, Double Wall
Spokes
14g Stainless Steel
Tires
Kenda Flintridge, 700x40c
Brakes
Brakes
Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Tektro 2 Finger Alloy Linear, For Flat Mount Disc
Cockpit
Stem
HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
DB Flat Bar, 680mm Wide, 31.8mm Bar Bore
Grips
Diamondback Dual Density Grip
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Eldorado
Seatpost
HED Eroica, 6061 Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.56 mm | 1.62 mm | 1.67 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 614 mm | 611 mm | 610 mm | 614 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 80 mm | 74 mm | 67 mm | 61 mm |
| Stack | 546 mm | 574 mm | 597 mm | 626 mm |
| Reach | 371 mm | 367 mm | 369 mm | 374 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1032 mm | 1029 mm | 1028 mm | 1032 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 776 mm | 799 mm | 835 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Haanjo is part of the Diamondback Haanjo model. Diamondback launched 60 bikes of this model so far. Take a sneak peek at all Diamondback Haanjo bikes models from 2017, by clicking here.
Model range prices
Diamondback Haanjo Metro 2017 is the most economical model, with a starting price of 549$. Diamondback Haanjo Comp Carbon 2017 on the other hand costs 2199$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 899$. If we compare this with the average Gravel bike cost we notice that the price is 173.86% smaller.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.94 kg (21.91 lbs), Diamondback bike is much heavier than average. In conclusion, the average Gravel bike weighs 22.26% less than Haanjo.
Haanjo components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the Haanjo model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Haanjo comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
