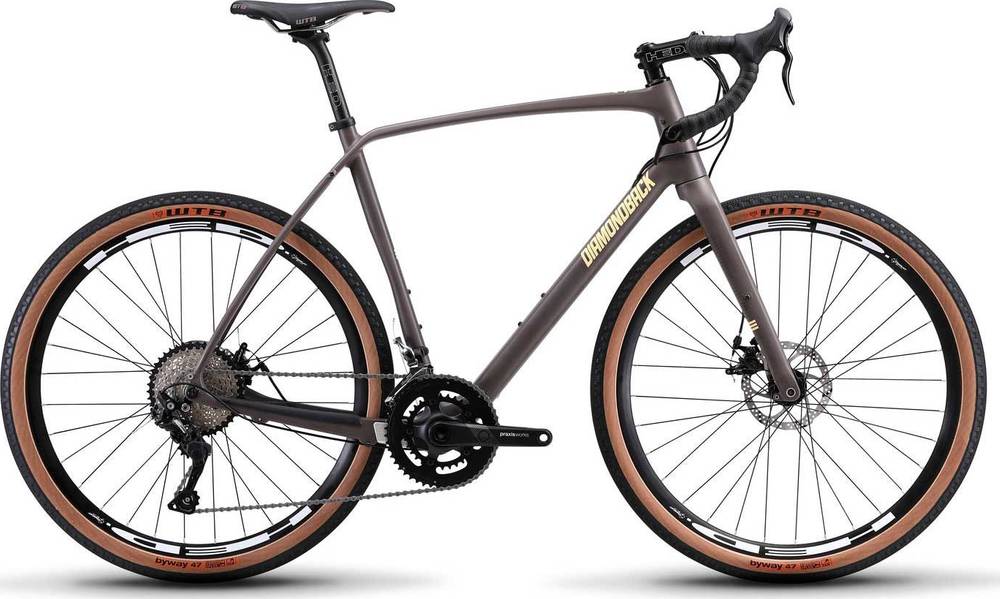

Diamondback Haanjo 5C EXP Carbon 2019
2019 Road
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Deore, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000, Shadow Plus, 10 Speed GS
Front Derailleur
Shimano Tiagra FD-4700, 31.8mm Clamp Diameter
Shift Levers
Microshift BS-M10 Bar End, 2x10 Speed
Cassette
Shimano CS-HG500, 10 Speed Cassette, 11-42T
Crank
Praxis Cadet, Direct Mount, 48/32T
Bottom Bracket
Praxxis M30 Sealed
Chain
KMC X10EPT Anti-Rust, 10 Speed
Pedals
DB Gravel Platform with Removeable Pins, Sealed Bearings, Chromoly Axle
Wheels
Front Hub
32h Alloy Disc, Sealed Cartridge, 12mm Thru-axle
Rear Hub
32h Alloy Disc, Sealed Cartridge, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc, 32h, 21mm Internal Width, Tubeless Ready
Spokes
14g Stainless Steel
Tires
WTB Byway, Dual DNA Compound, Tubeless, Road Plus 650x47
Brakes
Brakes
TRP Spyre-C Mechanical Disc, w/160mm Front /160mm Rear Rotors
Brake Levers
TRP RRL
Cockpit
Stem
HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED Eroica, 7050 Alloy, 16 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Race
Seatpost
HED Eroica, 6061 Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 72 mm | 66 mm | 61 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
Haanjo 5C EXP Carbon is a Diamondback Haanjo model. 60 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Diamondback Haanjo 1 2019 is the most economical model, with a starting price of 599$. Diamondback Haanjo 7C Carbon 2019 on the other hand costs 2999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 1999$. Comparing the average cost of a Gravel bike to this one, you will see that Haanjo 5C EXP Carbon price is 23.16% lower.
Overview of components
Fork material
Haanjo 5C EXP Carbon has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Haanjo 5C EXP Carbon 2019 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
