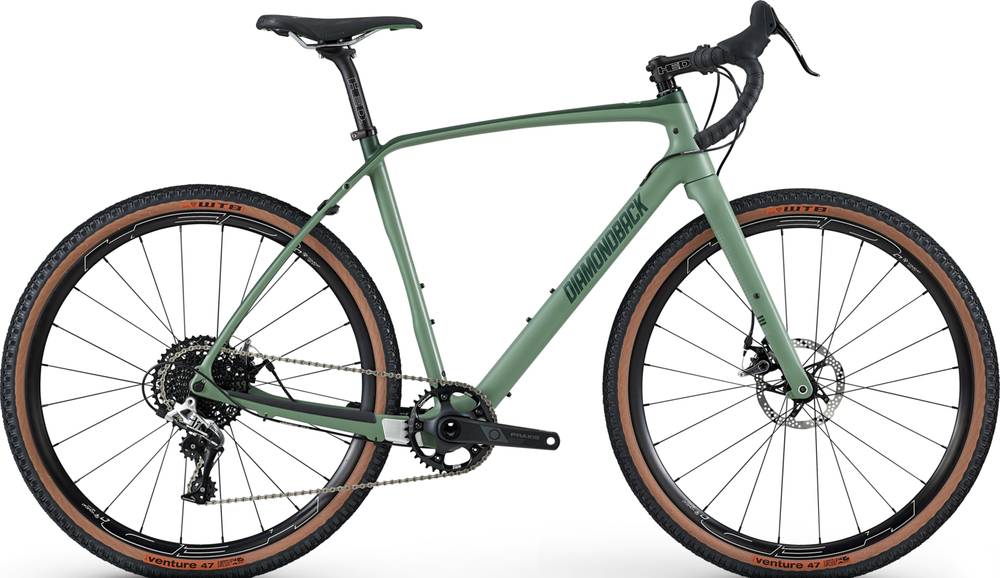

Diamondback Haanjo 6C Carbon 2020
2020 Road
Estimate price |
2,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Rival 1, Praxis -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
SRAM Rival1, 11 Speed
Shift Levers
SRAM Rival1, 1x11 Speed
Cassette
SRAM PG-1130, 11 Speed, 11-42T
Crank
Praxis Cadet, Direct Mount, 38T
Bottom Bracket
Praxxis M30 Sealed
Chain
KMC X11EL, 11 Speed
Wheels
Front Hub
24h Aluminum Sealed Cartridge, Center Lock, 12mm Thru-axle
Rear Hub
24h Aluminum Sealed Cartridge, Enter Lock, 142x12mm Thru-axle, Cassette
Rims
HED Tomcat Disc 24h, 21mm Internal Width, Tubeless Ready
Spokes
2.0/1.8/2.0 Butted Stainless Steel
Tires
WTB Venture Road Plus TCS, Dual DNA Compound, Lightweight Casing Tubeless, 650x47
Brakes
Brakes
TRP Spyre Mechanical Flat mount w/160mm Front /160mm Rear Center lock Rotors
Brake Levers
SRAM Rival 1
Cockpit
Stem
HED Eroica, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore
Handlebar
HED Eroica, 7050 Aluminum 12 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Race
Seatpost
HED Eroica, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 78 mm | 72 mm | 66 mm | 61 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
Haanjo 6C Carbon is a Diamondback Haanjo model. 60 bikes variations carry this model name so far. You can easily view all of the Diamondback Haanjo bikes models from 2020, here.
Model range prices
Diamondback Haanjo 1 2020 is the most affordable bike of this model and has a price of 785$. On the other hand, Diamondback Haanjo 8C Carbon 2020, is the most expensive and costs 4600$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Diamondback Haanjo 6C Carbon price was 2500$. In conclusion, this bike price is 1.54% higher than the price of the average Gravel bike.
Haanjo 6C Carbon components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Haanjo 6C Carbon model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
