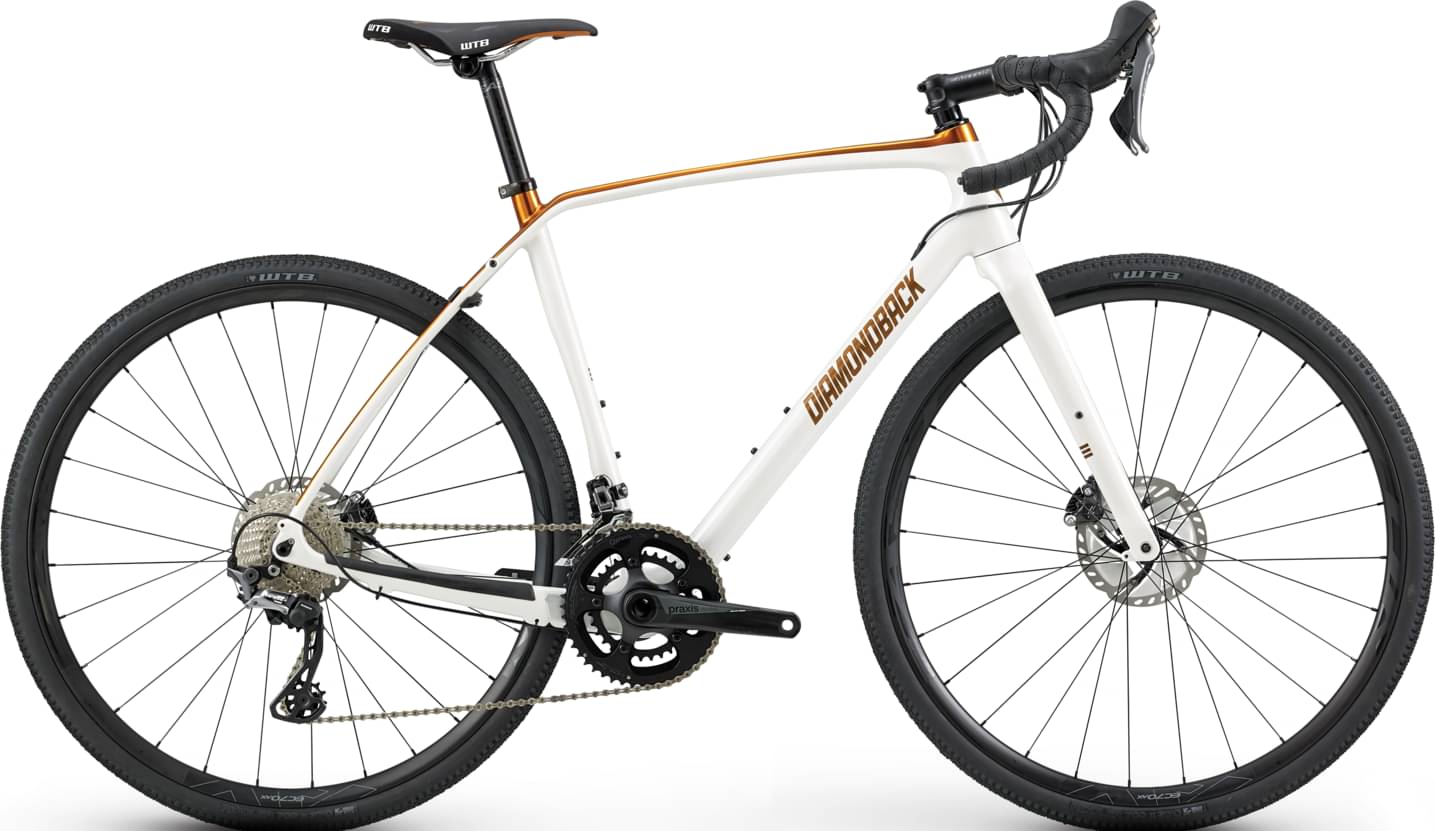

Diamondback Haanjo 8C Carbon 2022
2022 Road
Estimate price |
4,650$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Carbon Alternative Road Frame, Endurance Geometry, Relaxed Headtube Angle, Disc Specific, w/ 142x12 Thru-axle, Replaceable Hanger
Suspension Fork
DB Gravel Performance, Full Monocoque Carbon, Carbon 12mm Thru Axle Drop Outs, Flat Mount Disc ready, w/Tapered Steerer Tube
Drivetrain
Rear Derailleur
Shimano GRX810, Shadow Plus, 11 Speed
Front Derailleur
Shimano GRX810, 31.8mm Band Clamp
Shift Levers
Shimano GRX810 Dual Control 2x11 Speed
Cassette
Shimano CS-HG800 Cassette, 11 Speed, 11-34T
Crank
Praxis Girder, Direct Mount, 48/32T
Bottom Bracket
Praxis M30 Sealed
Chain
KMC X11EL, 11 Speed
Wheels
Front Hub
Easton EC70AX, 28h Aluminum Sealed Cartidge, Center Lock, 12mm Thru Axle
Rear Hub
Easton EC70AX, 28h Aluminum Sealed Cartidge, Center Lock, 12mm Thru Axle
Rims
Easton EC70AX, Carbon, 28h, 24mm Internal Width, Tubeless Ready
Spokes
Sapim Double Butted, 2.0/1.8/2.0
Tires
WTB Riddler, Dual DNA Compound, Lightweight Casing Tubeless, 700x37c
Brakes
Brakes
Shimano BR-RX810 Flat Mount Hydraulic Disc, w/160mm Front / 160mm Rear, RT800 Rotors
Brake Levers
Shimano GRX810
Cockpit
Stem
Easton EA70, +/-7° Rise, 31.8 Bar Bore
Handlebar
Easton EC70AX, Carbon, 16 Degree Flare, 31.8mm Bar Bore
Grips
Diamondback Endurance Gel Tape
Headset
FSA No.42, Sealed Cartridge
Seat
Saddle
WTB Silverado Pro
Seatpost
Easton EC70, Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.54 mm | 1.59 mm | 1.65 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 608 mm | 605 mm | 605 mm | 608 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 79 mm | 73 mm | 67 mm |
| Stack | 541 mm | 568 mm | 591 mm | 620 mm |
| Reach | 372 mm | 369 mm | 371 mm | 376 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1026 mm | 1023 mm | 1023 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 786 mm | 806 mm | 832 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
Haanjo 8C Carbon belongs to the Diamondback Haanjo model. 60 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Haanjo bikes models from 2022, by clicking here.
Model range prices
Diamondback Haanjo 1 2022 is the most economical model, with a starting price of 785$. Diamondback Haanjo 8C Carbon 2022 on the other hand costs 4650$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Diamondback released this model in 2022, its price was 4650$. In conclusion, this bike price is 88.87% higher than the price of the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Diamondback Haanjo 8C Carbon 2022, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
