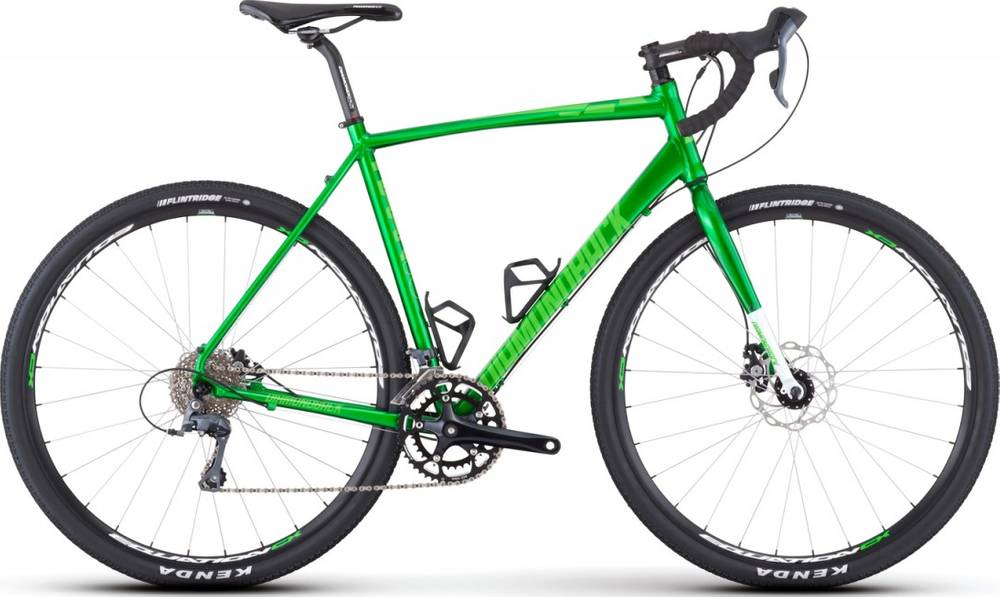

Diamondback Haanjo Tero 2017
2017 Road
Estimate price |
699$
Weight | 11.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB Alternative Road, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, 1 1/8" Headtube, Disc Only w/ Replaceable Hanger
Suspension Fork
DB Steel Urban Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts
Drivetrain
Rear Derailleur
Shimano Claris RD-2400, 8 Speed
Front Derailleur
Shimano Claris FD-2400, 31.8mm Band Clamp
Shift Levers
Shimano Claris ST-2400 STI, 2x8 Speed
Cassette
Shimano HG50 Cassette, 8 Speed, 11-32T
Crank
Alloy Cross Compact, 46/34T w/ Alloy Big Ring
Bottom Bracket
Sealed Cartridge
Chain
KMC Z82, 8 Speed
Pedals
DB Laser Alloy Platform
Wheels
Front Hub
28h Alloy w/ CNC Disc Mount
Rear Hub
28h Alloy w/ CNC Disc Mount, Cassette
Rims
DB Equation CX 700c 28h, Doublewall
Spokes
14g Stainless Steel
Tires
Kenda Flintridge, 700x40c
Brakes
Brakes
Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors
Brake Levers
Shimano Claris ST-2400
Cockpit
Stem
DB X-Durance, 3D Forged, +/-7° Rise, 31.8mm Bar Bore
Handlebar
DB X-Durance Gravel Bar, 8° Flare, 31.8mm Bar Bore
Grips
DB Gel Tape
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Eldorado
Seatpost
DB X-Durance, Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.53 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 604 mm | 602 mm | 612 mm | 623 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 93 mm | 88 mm | 70 mm | 63 mm |
| Stack | 544 mm | 571 mm | 591 mm | 618 mm |
| Reach | 374 mm | 373 mm | 376 mm | 388 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 130 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1022 mm | 1020 mm | 1030 mm | 1041 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 749 mm | 779 mm | 805 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Haanjo Tero completes the Diamondback Haanjo model. Diamondback launched 60 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Haanjo Metro 2017 is the most affordable bike of this model and has a price of 549$. On the other hand, Diamondback Haanjo Comp Carbon 2017, is the most expensive and costs 2199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Diamondback Haanjo Tero price was 699$. Comparing this to the average Gravel bike price, we see that the price is 252.22% lower.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Haanjo Tero weighs 11.48 kg (25.31 lbs) and is much heavier than the average. To sum up, it’s 41.21% heavier than the average weight of Gravel bikes.
Haanjo Tero components
Fork material
The fork on this bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The wheels on Haanjo Tero are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Haanjo Tero comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
