Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
Suspension Fork
SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, for Post mount V-brakes
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
Shimano Tourney TY500, Dual Pull
Shift Levers
Shimano EF-41 3x7 Speed EZ-Fire Shifter
Cassette
Shimano MFTZ500 14-28 Tooth Freewheel
Crank
Shimano Tourney TY301, 42/34/24t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMX Z-7
Pedals
Wellgo Plastic Body Platform
Wheels
Front Hub
Formula OV-31F Quick Release
Rear Hub
Formula OV-31R Quick Release
Rims
Aluminum MTB DBM-2 Double Wall, 32 hole
Spokes
Steel J-Bend
Tires
Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25"
Brakes
Brakes
Tektro 855AL V-Brake
Brake Levers
Shimano EF41 with 2-finger Reach Adjustable lever
Cockpit
Stem
Aluminum MTB 31.8 Bar Bore Stem
Handlebar
Aluminum 31.8mm Bar, 25mm Rise
Grips
MTB Grip
Headset
1-1/8 Semi Integrated, Cartridge Bearing
Seat
Saddle
MTB Saddle
Seatpost
Aluminum 27.2 Post with 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.49 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 630 mm | 655 mm | 658 mm | 684 mm | 711 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 98 mm | 99 mm | 90 mm | 89 mm | 88 mm |
| Stack | 575 mm | 585 mm | 597 mm | 611 mm | 625 mm |
| Reach | 362 mm | 384 mm | 400 mm | 420 mm | 441 mm |
| Top Tube Length | 534 mm | 559 mm | 584 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 120 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 419 mm | 419 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1044 mm | 1069 mm | 1091 mm | 1117 mm | 1144 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 714 mm | 744 mm | 772 mm | 803 mm | 838 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

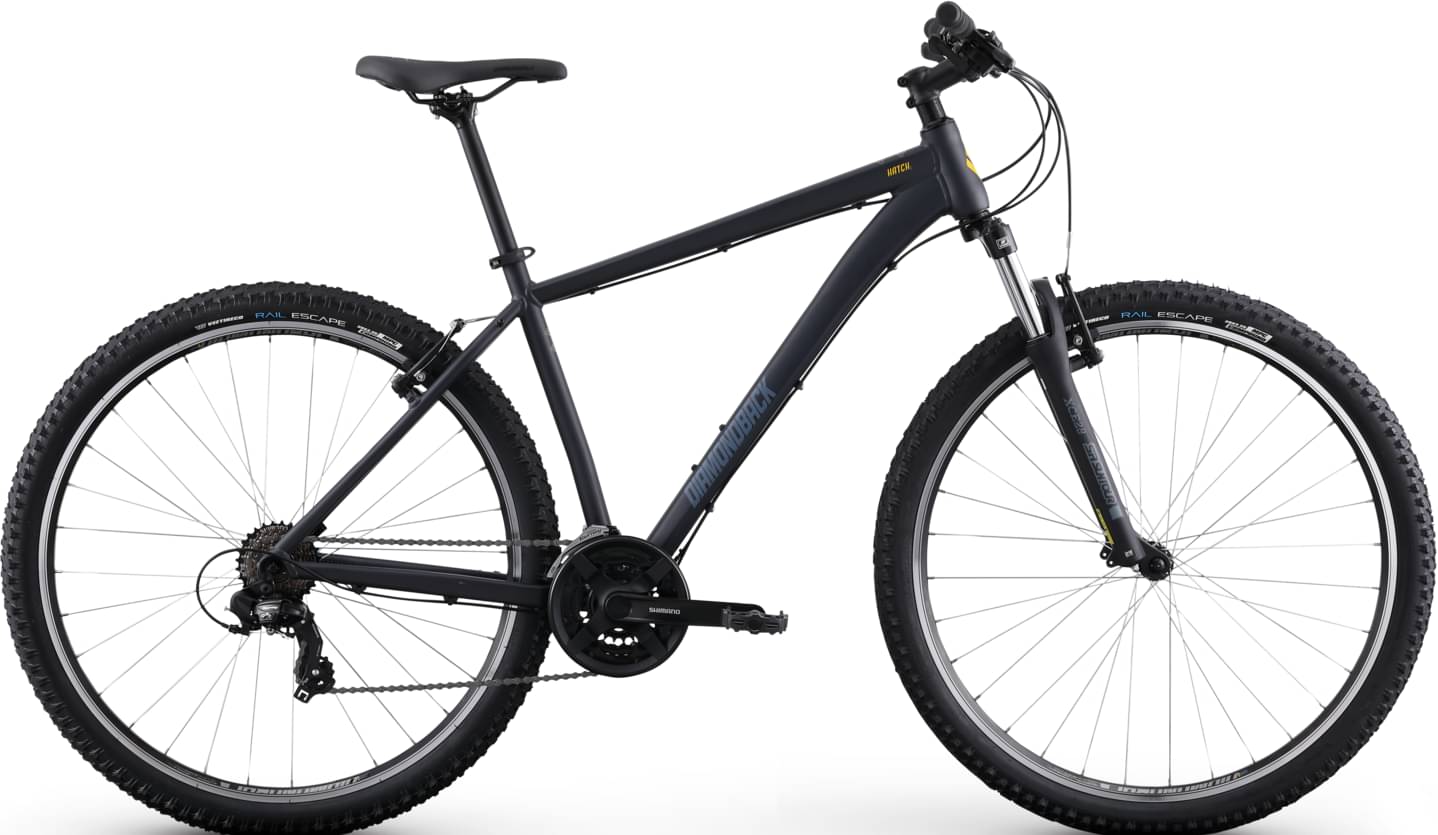

Hatch 1 belongs to the Diamondback Hatch model. Diamondback released 9 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Hatch 1 2022 has a starting price of 575$. Diamondback Hatch 3 2022 on the other hand is the most expensive at 775$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 575$. Comparing this to the average Crosscountry bike price, we see that the price is 231.3% lower.
Hatch 1 components
Fork
The Hatch 1 comes factory-installed with the Suntour fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Hatch 1 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hatch 1 comes with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
