Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
Suspension Fork
SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, IS Disc mounts
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
Shimano Tourney TY500, Dual Pull
Shift Levers
Shimano EF500 3x7 Speed EZ-Fire Shifter
Cassette
Shimano MFTZ500 14-28 Tooth Freewheel
Crank
Shimano Tourney TY301, 42/34/24t
Bottom Bracket
BSA, Sealed Cartridge Bearing
Chain
KMX Z-7
Pedals
Wellgo Plastic Body Platform
Wheels
Front Hub
Formula DC-19 Aluminum 6 bolt Disc, Quick Release
Rear Hub
Formula DC-31, Aluminum 6 bolt Disc, Quick Release
Rims
Aluminum MTB DDM-2 Double Wall, 32 hole
Spokes
Steel J-Bend
Tires
Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25"
Brakes
Brakes
Tektro M280 IS Post Mount, Mechanical Disc w 160mm Rotors F/R
Brake Levers
Shimano EF500 with 2-finger, Reach Adjustable Levers
Cockpit
Stem
Aluminum MTB 31.8 Bar Bore Stem
Handlebar
Aluminum 31.8mm Bar, 25mm Rise
Grips
MTB Grip
Headset
1-1/8 Semi Integrated,Cartridge Bearing
Seat
Saddle
MTB Saddle
Seatpost
Aluminum 27.2 Post with 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.55 mm | 1.55 mm | 1.5 mm | 1.46 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 630 mm | 655 mm | 660 mm | 686 mm | 712 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 99 mm | 99 mm | 85 mm | 85 mm | 86 mm |
| Stack | 582 mm | 591 mm | 611 mm | 625 mm | 639 mm |
| Reach | 360 mm | 382 mm | 395 mm | 416 mm | 437 mm |
| Top Tube Length | 534 mm | 559 mm | 584 mm | 609 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 110 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 419 mm | 419 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1044 mm | 1069 mm | 1091 mm | 1117 mm | 1143 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 714 mm | 744 mm | 772 mm | 803 mm | 838 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

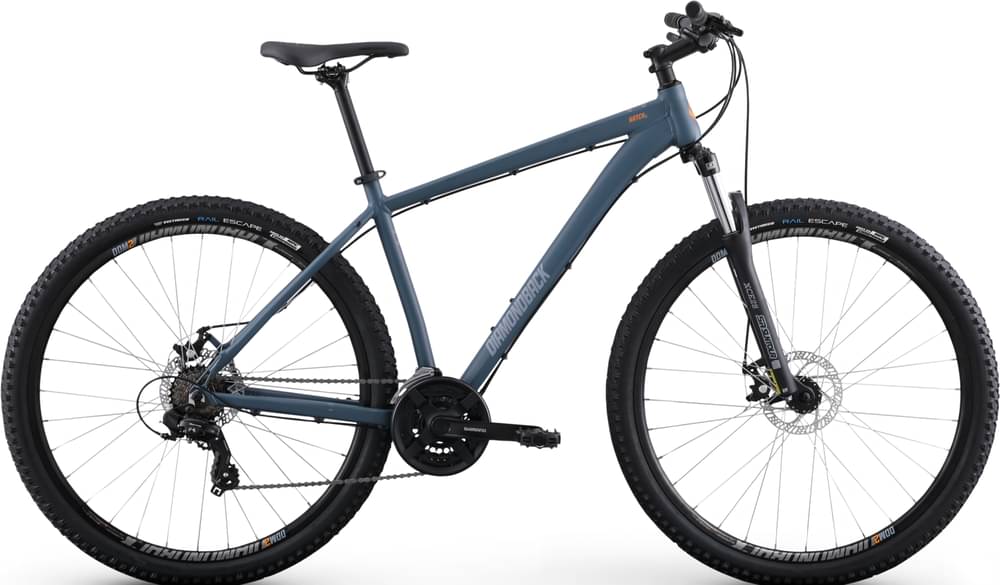

Hatch 2 is a Diamondback Hatch model. Diamondback released 9 bikes variations of this model so far. Take a sneak peek at all Diamondback Hatch bikes models from 2021, by clicking here.
Model range prices
Diamondback Hatch 1 2021 is the most affordable bike of this model and has a price of 600$. On the other hand, Diamondback Hatch 3 2021, is the most expensive and costs 700$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 650$. Comparing this to the average Crosscountry bike price, we see that the price is 193.08% smaller.
Hatch 2 components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Hatch 2 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
