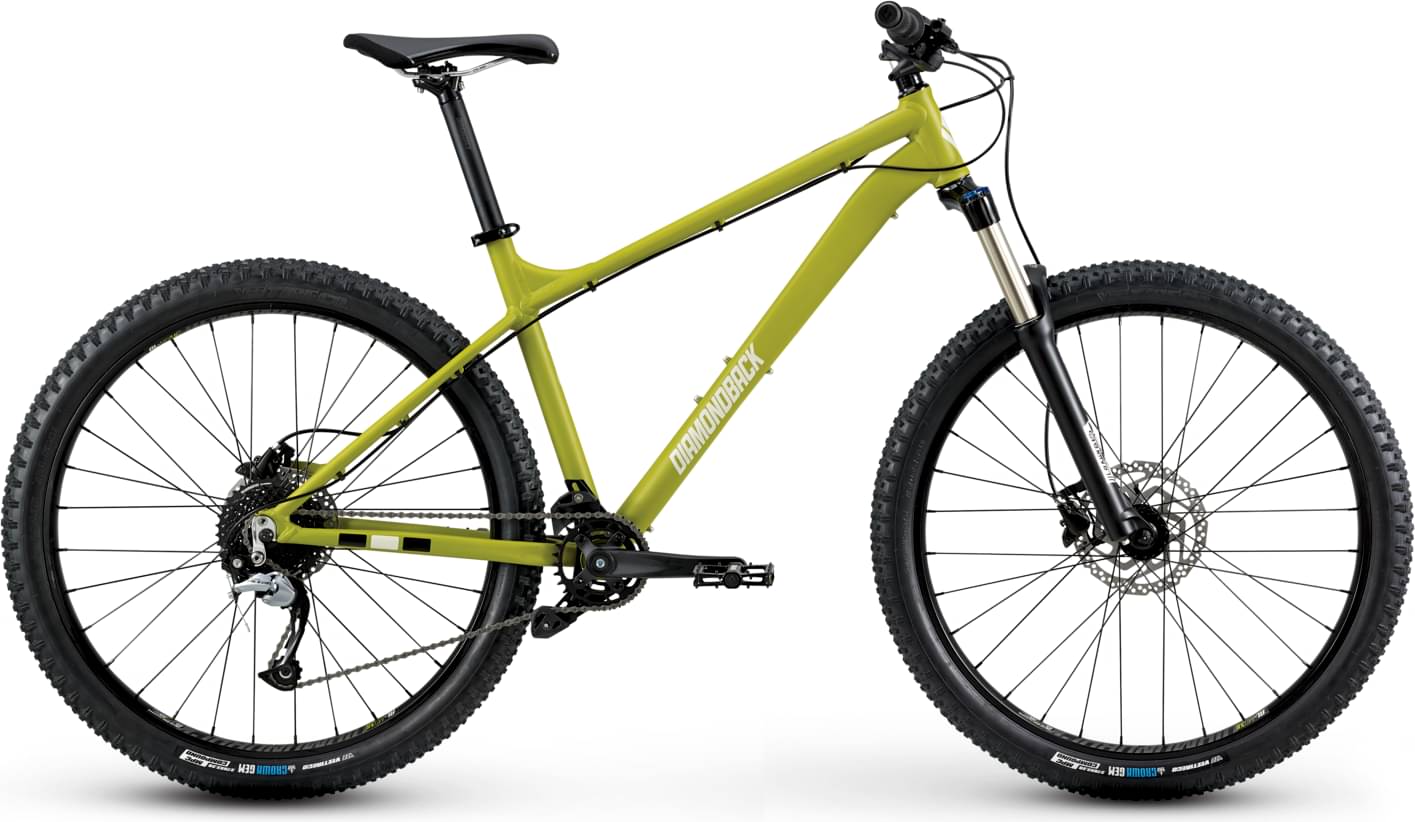

Diamondback Line 2023
2023 Mountain
Estimate price |
900$
Weight | 14.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready
Suspension Fork
SR Suntour XCR or X-1, 120mm Travel, 32mm Stanchions, w/ Preload Adjust and Hydraulic Lock Out
Drivetrain
Rear Derailleur
Shimano Acera M3000 Shadow, 9 Speed
Front Derailleur
Full ISCG-05 Chain Guide w/ Roller
Shift Levers
Shimano Acera M3000, 9 Speed
Cassette
Shimano HG200, 9 Speed, 11-36T
Crank
Alloy Arm w/ 30T Steel "Narrow Wide" Single Ring
Bottom Bracket
Sealed Cartridge
Chain
KMC Z9, 9 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount, 100mm
Rear Hub
32h Alloy w/ CNC Disc Mount, Cassette; 135mm
Rims
32h Diamondback MD35 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Crown Gem 27.5x2.35
Brakes
Brakes
Shimano MT-200 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Shimano Hydraulic
Cockpit
Stem
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore
Handlebar
Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Sync'r Saddle
Seatpost
Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.427 mm | 1.421 mm | 1.419 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 661 mm | 687 mm | 709 mm | 731 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 98 mm | 98 mm | 98 mm |
| Stack | 577 mm | 595 mm | 614 mm | 633 mm |
| Reach | 398 mm | 417 mm | 432 mm | 446 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1087 mm | 1113 mm | 1135 mm | 1157 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 728 mm | 769 mm | 799 mm | 830 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Line is a Diamondback Line model. There are 14 bikes that carry this model name. Take a sneak peek at all Diamondback Line bikes models from 2023, by clicking here.
Model range prices
Diamondback Line 24 2023 is the most economical model, with a starting price of 800$. Diamondback Line 2023 on the other hand costs 900$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Diamondback Line price was 900$. Doing a quick comparison, we notice that Line price is 206.89% smaller than the average cost of a Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Diamondback Line it’s weighing 14.29 kg (31.5 lbs). At this weight, is considerably heavier than average. To sum up, it’s 10.09% heavier than the average weight of Trail bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Line bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Line is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Diamondback Line bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
