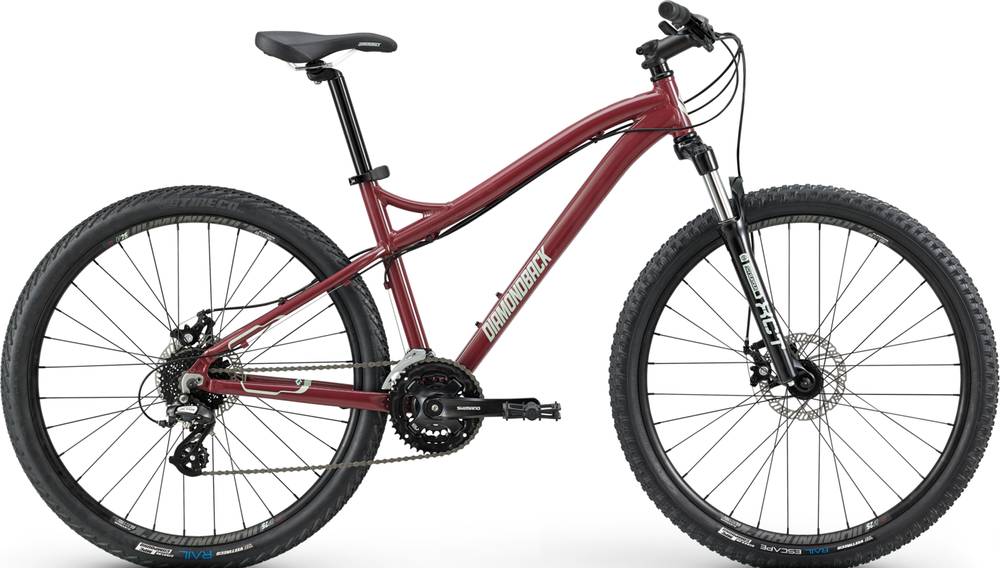

Diamondback Lux 1 2020
2020 Mountain
Estimate price |
730$
Weight | 14.74 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Women's Specific Double Butted 6061-T6 Aluminum, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
Suspension Fork
SR Suntour XCT30 27.5, 80mm Travel, Coil Spring w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Acera M360, 8 Speed
Front Derailleur
Shimano Tourney TY500, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano EF-500 Easyfire, 3x8 Speed
Cassette
Shimano HG-31, 8 Speed Cassette, 11-32T
Crank
SR Suntour XCT, 42/32/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z82, 8 Speed
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy w/ CNC Disc Mount; 100mm
Rear Hub
32h Alloy w/ CNC Disc Mount, Cassette; 135mm
Rims
32h Diamondback DP25 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Crown Gem 27.5x2.35 Tires
Brakes
Brakes
Tektro Aries Mechanical Disc, w/ 160mm Front and Rear Rotors
Brake Levers
Shimano EF-500
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DBWomen's-Specific D2 Kraton
Headset
1 1/8" Zero Stack
Seat
Saddle
DB Women's Performance MTB Saddle
Seatpost
Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | WSM | WMD | WLG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 80 mm | 80 mm | 80 mm |
| Wheels | 27" | 27" | 27" |
About this model
Lux 1 is part of the Diamondback Lux model. Diamondback launched 26 bikes of this model so far. You can easily view all of the Diamondback Lux bikes models from 2020, here.
Model range prices
The most economical model, the Diamondback Lux 1 2020 has a starting price of 730$. Diamondback Lux 3 2020 on the other hand is the most expensive at 1400$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Diamondback Lux 1 price was 730$. If we compare this with the average Crosscountry bike cost we notice that the price is 160.96% smaller.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 14.74 kg (32.5 lbs), Diamondback bike is much heavier than average. In short, the average Crosscountry bike weight is 18.87% lower than this one.
Overview of components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Diamondback Lux 1 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
