Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Women's Specific Double Butted 6061-T6 Aluminum, Super Low TT for Increased Clearance, w/ Formed Top / Down Tube, Tapered Headtube, 12mm Thru Axle Boost Drop Outs w/ Replaceable Hanger
Suspension Fork
Rockshox Judy Silver TK, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, 30mm Steel Stanchions, Alloy 1.5" Tapered Steerer Tube, Boost 110x15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM SX, 12 Speed
Shift Levers
SRAM SX Eagle 12 Speed X-Actuation Trigger
Cassette
SRAM PG1210, 12 Speed, 11-50T
Crank
SRAM SX w/ X-Sync 34T Chain Ring
Bottom Bracket
SRAM Powerspline
Chain
SRAM SX Eagle, 12 Speed, Power Link
Pedals
DB4L Alloy Platform
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
Rear Hub
32h Alloy, 12mm Thru Axle, Cassette w/ CNC Disc Mount, 148mm
Rims
32h Diamondback DP25 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Rubber Crown Gem 27.5x2.35 Tires
Brakes
Brakes
Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Alloy Riser, 15mm Rise, 740mm Wide, 31.8mm Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Women's Performance MTB Saddle
Seatpost
DB Alloy Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | WSM | WMD | WLG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" |
About this model

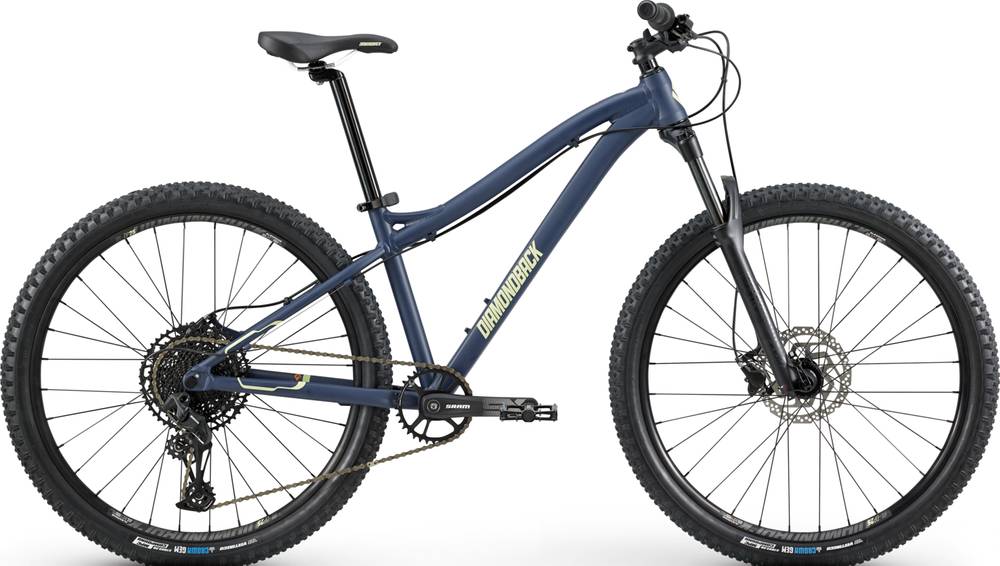

Lux 3 is a Diamondback Lux model. There are 26 bikes that carry this model name. Take a sneak peek at all Diamondback Lux bikes models from 2020, by clicking here.
Model range prices
Diamondback Lux 1 2020 is the cheapest bike model and costs 730$. Diamondback Lux 3 2020 is the most expensive one and costs 1400$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Diamondback released this model in 2020, its price was 1400$. Doing a quick comparison, we notice that Lux 3 price is 97.29% lower than the average cost of a Trail bike.
Lux 3 components
Fork
Diamondback Lux 3 2020 bike is equipped with the RockShox Judy Silver TK fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Lux 3 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Lux 3 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lux 3 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
