Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube
Suspension Fork
Rock Shox Judy TK 27.5", 100mm Travel, Coil Spring w/Preload Adjust, 30mm Stanchions, Magnesium Lower, Aluminum Crown, Quick Release
Drivetrain
Rear Derailleur
Shimano Alivio M3100, Shadow Plus, 9 Speed
Front Derailleur
Shimano Alivio, Side Swing, Front Pull, Direct Mount for 2x9
Shift Levers
Shimano Altus, 2x9 Speed Rapidfire
Cassette
Shimano HG200, 9 Speed Cassette, 11-32T
Crank
Shimano MT-10 36/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z9, 9 Speed
Pedals
DB Aluminum Platform
Wheels
Front Hub
32h Aluminum w/ CNC Disc Mount; 100mm
Rear Hub
32h Aluminum 9mm Quick Release Cassette w/ CNC Disc Mount, 141mm boost spacing
Rims
32h Diamondback DP25 Doublewall
Spokes
14g Stainless Steel
Tires
Vee Tire Rail Escape Front 27.5x2.35 Rail Rear 27.5x1.95
Brakes
Brakes
Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
1 1/8" Zero Stack
Seat
Saddle
DB Performance MTB Saddle
Seatpost
DB Aluminum Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

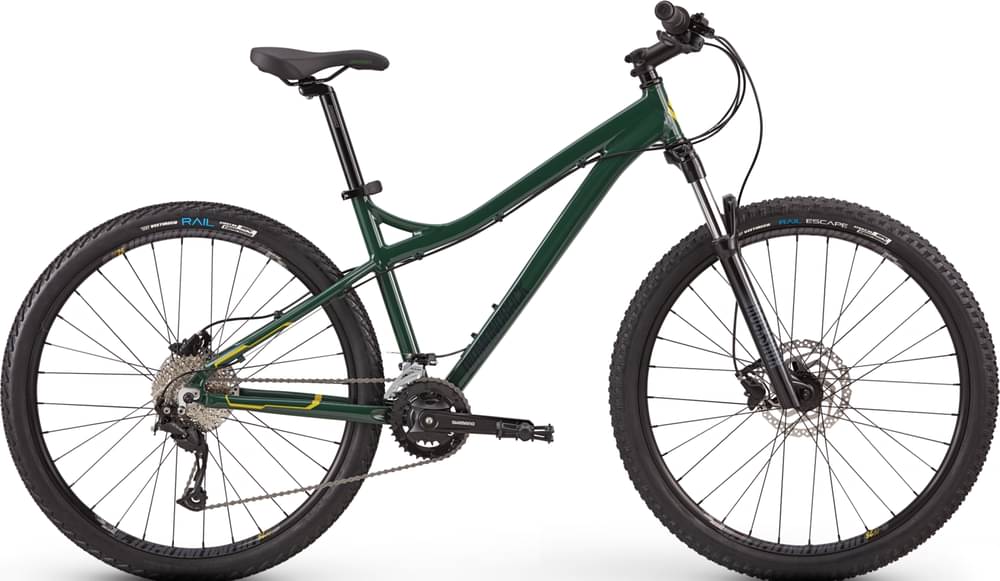

About this model
Lux 2 completes the Diamondback Lux model. Diamondback released 26 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Diamondback Lux 1 2021 is the most economical model, with a starting price of 730$. Diamondback Lux 3 2021 on the other hand costs 1400$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 1000$. Comparing the average cost of a Crosscountry bike to this one, you will see that Lux 2 price is 90.5% lower.
Lux 2 components
Fork
This bike has the RockShox Judy fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Lux 2 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Lux 2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
