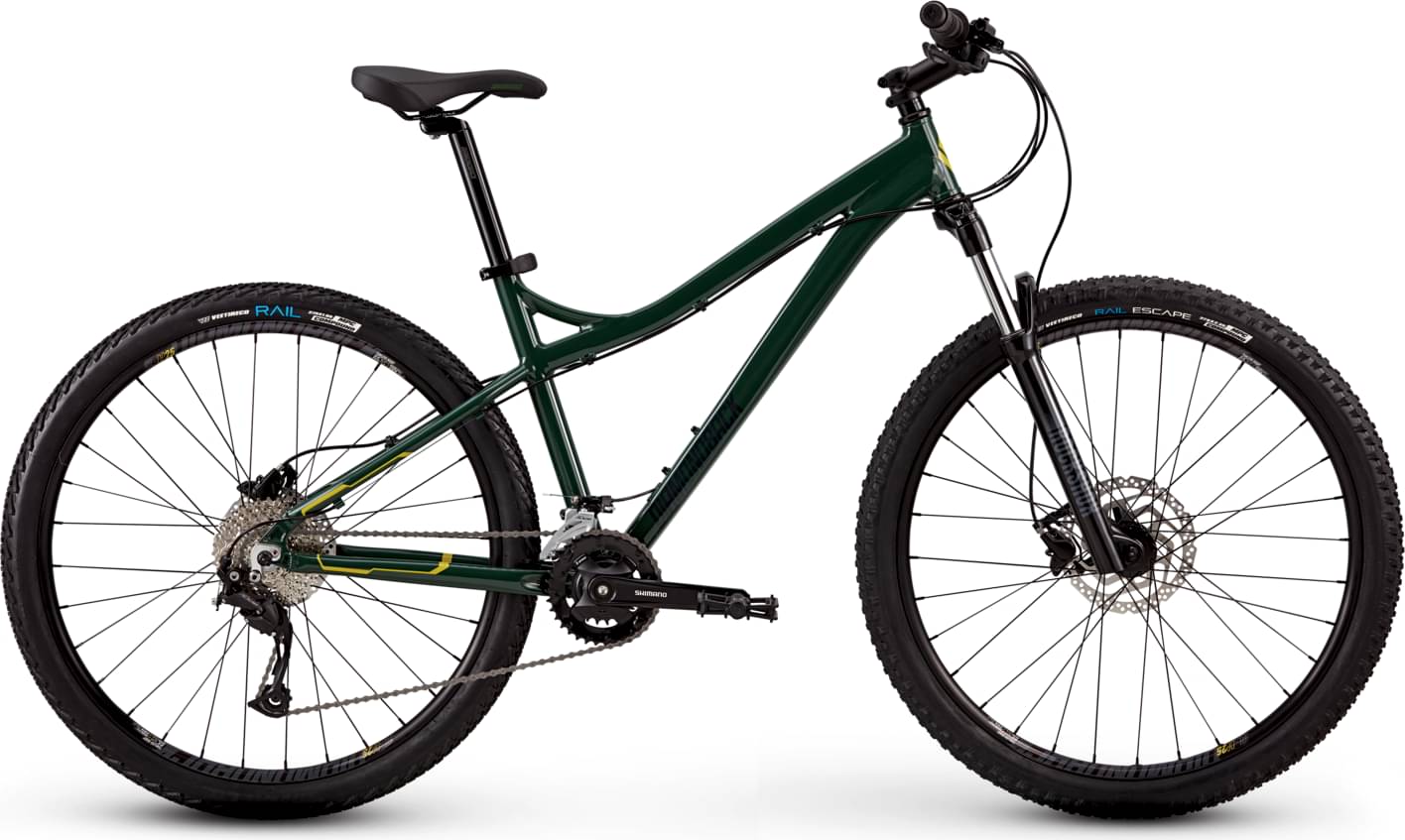

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube, 9mm Quick Release Boost Drop Outs w/ Replaceable Hanger
Suspension Fork
Rock Shox Judy TK 27.5", 100mm Travel, Coil Spring w/Preload Adjust, 30mm Stanchions, Magnesium Lower, Aluminum Crown, Quick Release
Drivetrain
Rear Derailleur
Shimano Alivio M3100, Shadow Plus, 9 Speed
Front Derailleur
Shimano Alivio, Side Swing, Front Pull, Direct Mount for 2x9
Shift Levers
Shimano Altus, 2x9 Speed Rapidfire
Cassette
Shimano HG200, 9 Speed Cassette, 11-32T
Crank
Shimano MT-10 36/22T
Bottom Bracket
Sealed Cartridge
Chain
KMC Z9, 9 Speed
Pedals
DB Aluminum Platform
Wheels
Front Hub
32h Aluminum w/ CNC Disc Mount; 100mm
Rear Hub
32h Aluminum 9mm Quick Release Cassette w/ CNC Disc Mount, 141mm boost spacing
Rims
32h Diamondback DP25 Doublewall, Tubeless Compatible Rim, Not Taped
Spokes
14g Stainless Steel
Tires
Vee Tire Rail Escape Front 27.5x2.35, Non Tubeless Tire ; Rail Rear 27.5x1.95, Non Tubeless Tire
Brakes
Brakes
Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors
Brake Levers
Shimano BR-M200 Hydraulic Lever w/ Reach Adjust
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB "Flanged" 135mm Silcone
Headset
1 1/8" Zero Stack
Seat
Saddle
DB Performance MTB Saddle
Seatpost
DB Aluminum Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.3 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 670 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 89 mm | 94 mm | 93 mm |
| Stack | 523 mm | 543 mm | 552 mm |
| Reach | 390 mm | 413 mm | 424 mm |
| Top Tube Length | 552 mm | 577 mm | 592 mm |
| Seat Tube Angle | 73.2 ° | 73.3 ° | 73.4 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1067 mm | 1093 mm | 1109 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 636 mm | 644 mm | 661 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Lux 2 completes the Diamondback Lux model. Diamondback launched 26 bikes of this model so far. Take a sneak peek at all Diamondback Lux bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Diamondback Lux 1 2023 has a starting price of 750$. Diamondback Lux 3 2023 on the other hand is the most expensive at 1400$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1000$. Doing a quick comparison, we notice that Lux 2 price is 90.5% smaller than the average cost of a Crosscountry bike.
Overview of components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The Lux 2 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Diamondback Lux 2 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
