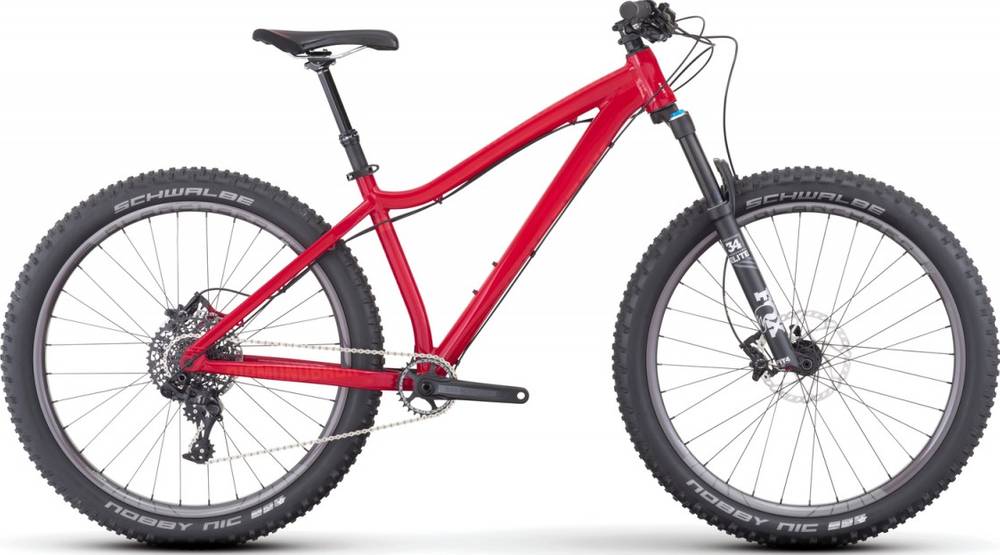

Diamondback Mason Pro 2017
2017 Mountain
Estimate price |
2,499$
Weight | 13.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Performance Elite Float 34
-
Groupset X1, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger
Suspension Fork
Fox 34 Float Perfomance Elite, FIT4 Cartridge, 130mm Travel, 3 Position Lever w/ Open Mode Adjust, External Rebound Adjust, 1.5" Butted Tapered Steerer Tube, 34mm Easton Aluminum Stanchions, 15mm Thru-axle
Drivetrain
Rear Derailleur
SRAM X1 X-Horizon, 11 Speed
Shift Levers
SRAM X1, 11 Speed X-Actuation Trigger
Cassette
SRAM XG1150, 11 Speed, 10-42T
Crank
Race Face Ãffect Cinch w/ 30T "Narrow Wide"
Bottom Bracket
Raceface Outboard Bearing
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/ XD Cassette Body
Rims
Diamondback Blanchard 38R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Schwalbe Nobby Nic 27.5x2.8", SnakeSkin, Folding, TL-Easy Tubeless Compatible
Brakes
Brakes
Shimano Deore M615 Hydraulic Disc, w/ 180mm Front /180mm Rear Rotors
Brake Levers
Shimano Deore M615 Hydraulic Levers w/Reach Adj.
Cockpit
Stem
Raceface Ãffect, 60mm length, 35mm barbore
Handlebar
Raceface Ãffect, 760mm Wide, 10mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-series Saddle
Seatpost
KS LEV Integera Dropper, 125/150mm Travel, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 655 mm | 697 mm | 715 mm | 734 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 113 mm | 89 mm | 88 mm | 89 mm |
| Stack | 599 mm | 599 mm | 599 mm | 599 mm |
| Reach | 395 mm | 413 mm | 430 mm | 450 mm |
| Top Tube Length | 565 mm | 580 mm | 609 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1084 mm | 1126 mm | 1144 mm | 1163 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 749 mm | 753 mm | 772 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mason Pro completes the Diamondback Mason model. There are 15 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Diamondback Mason Trail 2017 has a starting price of 999$. Diamondback Mason Pro 2017 on the other hand is the most expensive at 2499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. Doing a quick comparison, we notice that Mason Pro price is 10.52% smaller than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.02 kg (28.7 lbs), the Mason Pro model is slightly heavier than average. To sum up, it’s 0.31% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The Mason Pro 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mason Pro has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
