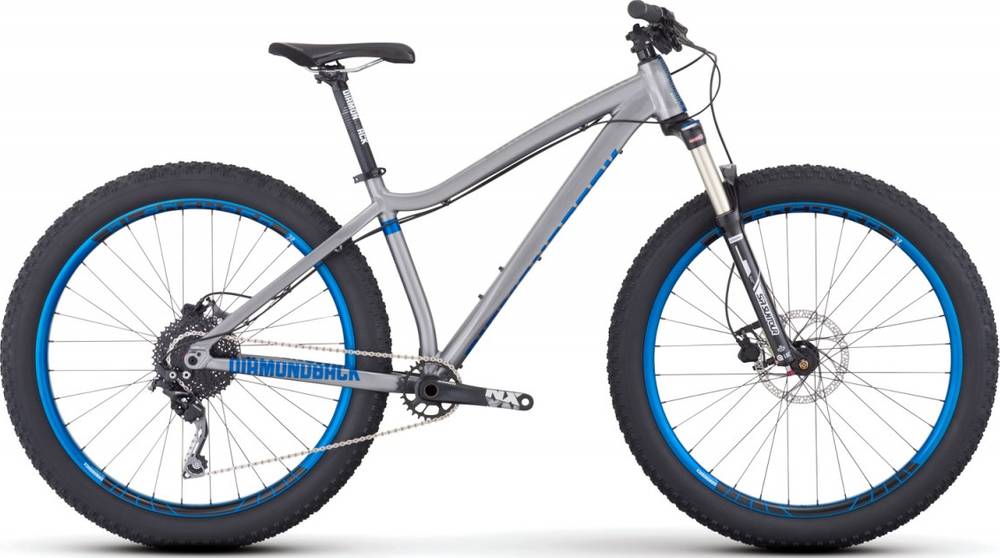

Diamondback Mason Trail 2017
2017 Mountain
Estimate price |
999$
Weight | 13.22 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour
-
Groupset Deore, NX -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mason 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger
Suspension Fork
SR Suntour Radion 27.5" Plus Suspension Fork, 120mm Travel, Air Spring, 6061 Forged Alloy Crown, Alloy Tapered Steerer Tube, 32mm Alloy Stanchions, 15mm Thru-axle
Drivetrain
Rear Derailleur
Shimano Deore M615 Shadow Plus, 10 Speed
Shift Levers
Shimano Deore M610, 10 Speed
Cassette
Sunrace MX3-T, 10 Speed, 11-40T
Crank
SRAM NX 1x, w/ X-Sync 30T Chain Ring
Bottom Bracket
SRAM Powerspline
Chain
KMC X10, 10 Speed
Pedals
DB4L Alloy w/ Molded Traction Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing, w/ CNC Disc Mount
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 38, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Chaoyang Big Daddy 27.5x2.8"
Brakes
Brakes
Tektro Auriga Hydraulic Disc, w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Tektro Auriga Hydraulic Disc Brake Levers
Cockpit
Stem
DB35 Alloy, 60mm, 35mm Bar Bore
Handlebar
DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA NO.57, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-series Saddle
Seatpost
DB Alloy Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 655 mm | 697 mm | 715 mm | 734 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 113 mm | 89 mm | 88 mm | 89 mm |
| Stack | 599 mm | 599 mm | 599 mm | 599 mm |
| Reach | 395 mm | 413 mm | 430 mm | 450 mm |
| Top Tube Length | 565 mm | 580 mm | 609 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1084 mm | 1126 mm | 1144 mm | 1163 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 749 mm | 753 mm | 772 mm | 793 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mason Trail is a Diamondback Mason model. Diamondback released 15 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Diamondback Mason Trail 2017 is the most affordable bike of this model and has a price of 999$. On the other hand, Diamondback Mason Pro 2017, is the most expensive and costs 2499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 999$. In conclusion, this bike price is 176.48% smaller than the price of the average Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mason Trail weighs 13.22 kg (29.15 lbs) and is slightly heavier than the average. In short, the average Trail bike weight is 1.85% lower than this one.
Mason Trail components
Fork
The SunTour is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the Mason Trail model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mason Trail has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Diamondback Mason Trail bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
