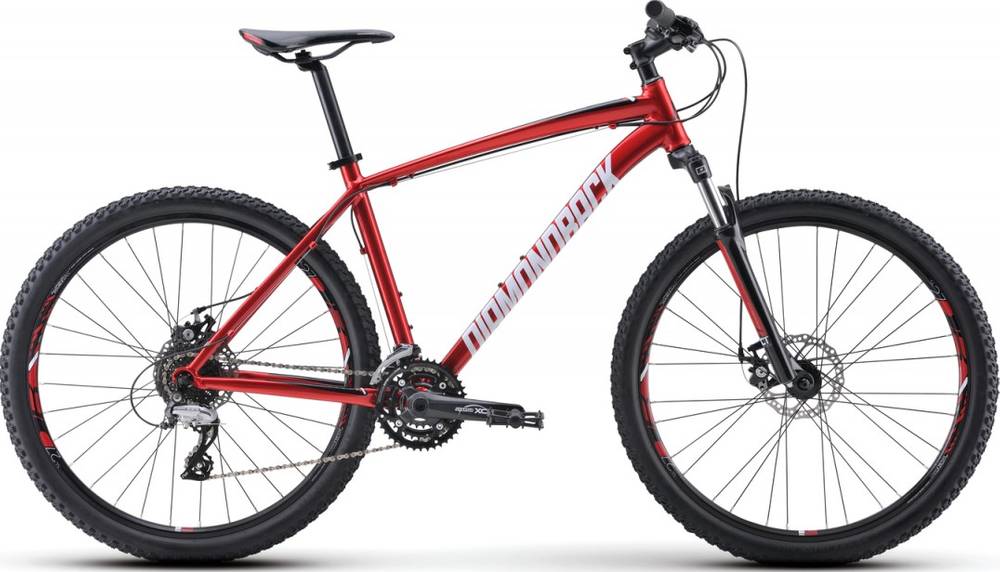

Diamondback Overdrive 27.5 2017
2017 Mountain
Estimate price |
499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 27.5" Butted 6061-T6 Aluminum, Forged Drop Outs, w/ Replaceable Hanger, Disc Only
Suspension Fork
SR Suntour XCT 27.5", Coil Spring, 80mm Ttravel, w/ Preload Adjust
Drivetrain
Rear Derailleur
Shimano Acera M360, 8 Speed
Front Derailleur
Shimano Tourney TY500, Top Swing, Dual Pull, 34.9mm Clamp Diameter
Shift Levers
Shimano EF-51 Easyfire, 3x8 Speed
Cassette
Shimano HG31 Cassette, 8 Speed, 11-32T
Crank
Suntour XCT, 42/32/22T
Bottom Bracket
Square Taper - 5pc
Chain
KMC Z82, 8 Speed
Pedals
DB4L Resin Platform
Wheels
Front Hub
32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub
32h SL-7 Alloy Cassette w/ CNC Disc mount
Rims
DB SL-27 27.5" 32h Doublewall
Spokes
14g Stainless Steel
Tires
Chaoyang Hornet, 27.5x2.1"
Brakes
Brakes
Tektro Aries Mechanical Disc w/ 160mm Rotors
Brake Levers
Shimano EF-51
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
DB Laser Series, 680mm Wide, 15mm Rise, 31.8mm Bar Bore
Grips
DB4L 135mm Kraton
Headset
FSA IS-3/NO.11 Integrated Style
Seat
Saddle
DB Race M-Series Saddle
Seatpost
DB Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 567 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1054 mm | 1080 mm | 1101 mm | 1122 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 751 mm | 789 mm | 824 mm | 860 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Overdrive 27.5 is a Diamondback Overdrive model. 37 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Overdrive bikes models from 2017, by clicking here.
Model range prices
Diamondback Overdrive 27.5 2017 is the most affordable bike of this model and has a price of 499$. On the other hand, Diamondback Overdrive Carbon Pro 29 2017, is the most expensive and costs 2799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 499$. Comparing the average cost of a Crosscountry bike to this one, you will see that Overdrive 27.5 price is 281.76% lower.
Overdrive 27.5 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Diamondback Overdrive 27.5 2017, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
