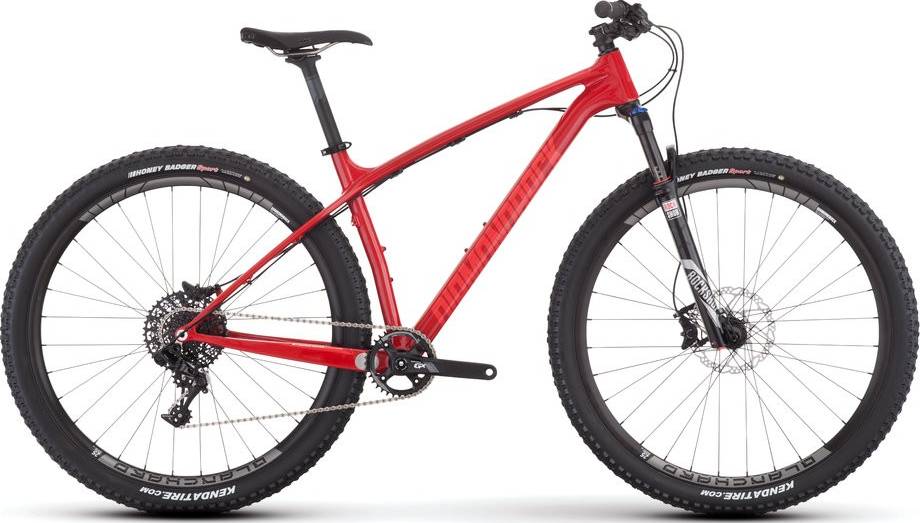

Diamondback Overdrive Carbon Pro 29 2017
2017 Mountain
Estimate price |
2,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset GX, SRAM -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
DB AMMP XC MTB Carbon Technology, Full Monocoque Construction, 142x12 Carbon Drop Outs, w/ Taper Headtube, Press-Fit 30 BB
Suspension Fork
Rockshox Reba RL 29", Solo Air, 32mm Stanchion, 100mm Travel, w/ Rebound Adjust, Lockout, 15mm Thru-axle, 1.5" Taper Steerer Tube
Drivetrain
Rear Derailleur
SRAM GX X-Horizon, 11 Speed
Shift Levers
SRAM GX 11 Speed X-Actuation Trigger
Cassette
SRAM PG1150, 11 Speed, 10-42T
Crank
SRAM GX1000, w/ X-Sync 34T Chain Ring
Bottom Bracket
SRAM PF30
Chain
KMC X11EL, 11 Speed
Pedals
DB4L Alloy Platform w/ Replaceable Pins
Wheels
Front Hub
32h SL-7, 15MM Thru-Axle, Alloy w/ Center Lock Disc Mount,
Rear Hub
32h SL-7,142x12mm Thru-Axle, Alloy, XD Cassette Body w/ Center Lock Disc mount
Rims
Diamondback Blanchard 25R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Kenda Honey Badger 29x2.2"
Brakes
Brakes
Shimano SLX BR-M7000 Hydraulic Disc, w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Shimano SLX BR-M7000 w/ Reach Adjust
Cockpit
Stem
Easton EA70 Alloy, 31.8mm Bar Bore
Handlebar
Easton EC70 Carbon, 720mm Wide, Low Rise, 31.8mm Bar Bore
Grips
DB4L "Lock on" 135mm Kraton
Headset
FSA NO.42, Sealed Cartridge for Tapered Headtube
Seat
Saddle
DB Race M-Series Saddle
Seatpost
Easton EA70 Alloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.445 mm | 1.421 mm | 1.408 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 631 mm | 660 mm | 682 mm | 701 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 81 mm | 81 mm | 81 mm |
| Stack | 600 mm | 610 mm | 624 mm | 638 mm |
| Reach | 397 mm | 422 mm | 439 mm | 453 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1058 mm | 1087 mm | 1109 mm | 1128 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 775 mm | 785 mm | 815 mm | 833 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Overdrive Carbon Pro 29 is a Diamondback Overdrive model. There are 37 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Diamondback Overdrive 27.5 2017 is the cheapest bike model and costs 499$. Diamondback Overdrive Carbon Pro 29 2017 is the most expensive one and costs 2799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 2799$. Comparing this to the average Crosscountry bike price, we see that the price is 46.93% higher.
Overview of components
Fork
This bike has the RockShox Reba fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Overdrive Carbon Pro 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Overdrive Carbon Pro 29 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
