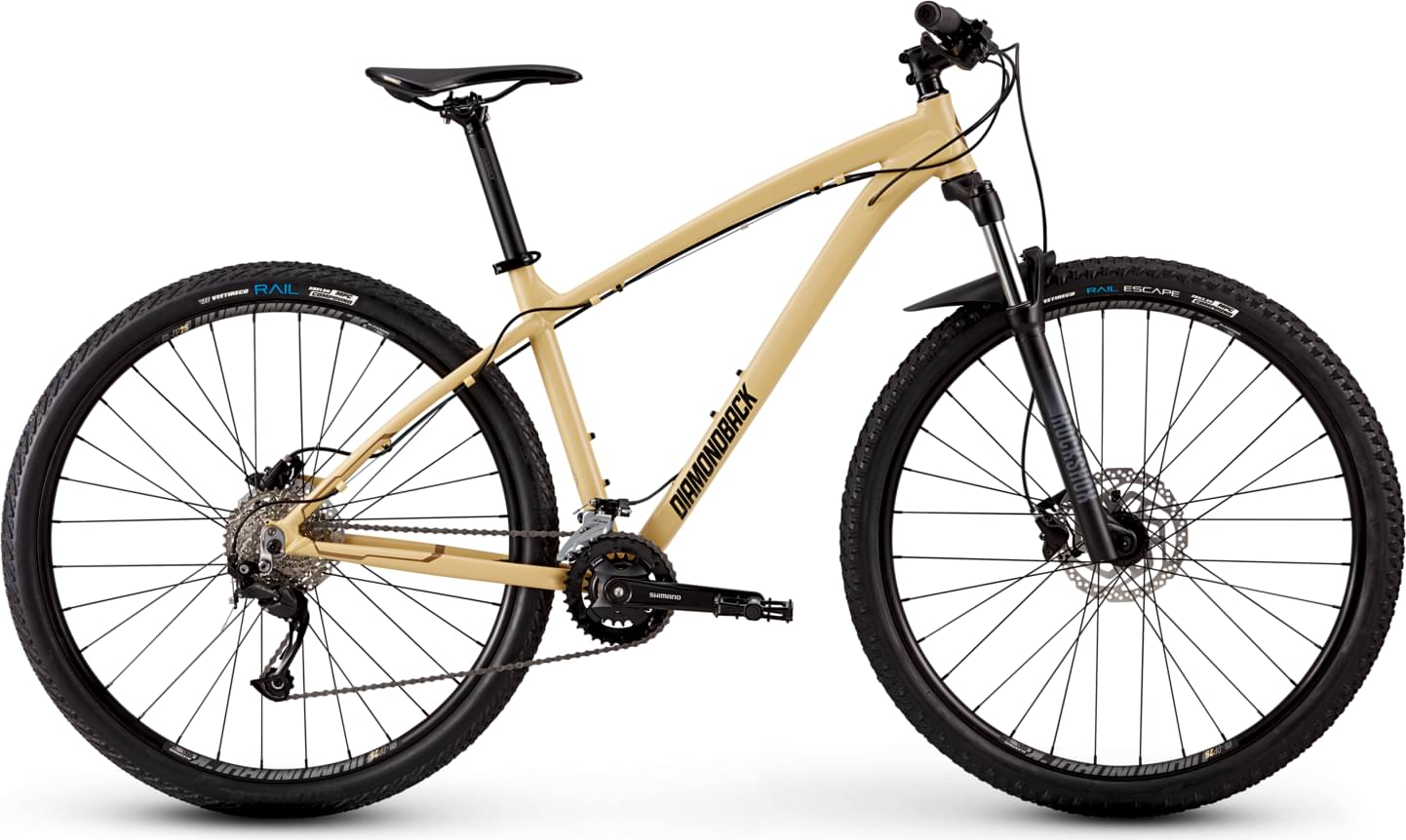

Diamondback Overdrive 29 2 2023
2023 Mountain
Estimate price |
1,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 29" Butted 6061-T6 Aluminum Formed Top / Down Tube, Machined Headtube, Boost 141 QR, Forged Drop Outs, w/ Replaceable Hanger
Suspension Fork
Rockshox Judy TK, Coil Spring, Turn Key Lockout, 29" 100mm Travel, Quick Release
Drivetrain
Rear Derailleur
Shimano Alivio, M3100 Shadow Plus, 9 speed
Front Derailleur
Shimano Alivio side swing
Shift Levers
Shimano Altus, 2x9 RapidFire Plus
Cassette
Shimano 9 Speed, 11-36T
Crank
Shimano Altus Aluminum 36/22T
Bottom Bracket
CH-52 Sealed Cartridge
Chain
KMC X9
Pedals
DB4L Aluminum Platform w/ Replaceable Pins
Wheels
Front Hub
Aluminum 32h Disc, 6 Bolt Quick Release
Rear Hub
Aluminum Cassette Disc, 6 Bolt, 141 Boost, Quick Release
Rims
DB DP-25 Aluminum 25mm internal width, Double Wall Rim, 32H, Not Taped
Spokes
14g Stainless Steel
Tires
Front – Vee Rail Escape 29x2.25”, Non Tubeless Tire Rear – Vee Rail 29x1.95” Non Tubeless Tire
Brakes
Brakes
Shimano MT200 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors
Brake Levers
Shimano MT200 Hydraulic
Cockpit
Stem
DB 3D Forged, 7° Rise, 31.8 Bar Bore
Handlebar
Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
Grips
DB "Flanged" Lock-on, 135mm Silcone
Headset
FSA IS-3/NO.11N
Seat
Saddle
DB Race M-series Saddle
Seatpost
DB Aluminum Micro Adjust, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.435 mm | 1.418 mm | 1.438 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 632 mm | 662 mm | 683 mm | 702 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 80 mm | 80 mm | 81 mm | 87 mm |
| Stack | 597 mm | 607 mm | 624 mm | 653 mm |
| Reach | 397 mm | 423 mm | 440 mm | 454 mm |
| Top Tube Length | 580 mm | 609 mm | 630 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1074 mm | 1104 mm | 1125 mm | 1144 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 767 mm | 782 mm | 810 mm | 831 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Overdrive 29 2 belongs to the Diamondback Overdrive model. 37 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Diamondback Overdrive 29 1 2023 is the cheapest bike model and costs 750$. Diamondback Overdrive 29 3 2023 is the most expensive one and costs 1400$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Diamondback Overdrive 29 2 price was 1000$. Comparing the average cost of a Crosscountry bike to this one, you will see that Overdrive 29 2 price is 90.5% smaller.
Overdrive 29 2 components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Overdrive 29 2 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Overdrive 29 2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
