Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive 27" Butted 6061-T6 Aluminum w/ Formed Top / Down Tube, machined headtube, forged drop outs w/replaceable hanger, disc only
Suspension Fork
SR Suntour XCT 27.5 coil spring 80 mm travel, Preload Adjust
Drivetrain
Rear Derailleur
Shimano Acera M360, 8 Speed
Front Derailleur
Shimano Tourney, top pull, 31.8
Shift Levers
Shimano Altus EF-51 3x8spd
Cassette
Shimano HG-31, 8 Speed, Cassette, 11-32T
Crank
Suntour XCT, 42/32/22T
Bottom Bracket
Square Taper - 5pc
Chain
KMC Z82
Pedals
Alloy Forged
Wheels
Front Hub
32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub
32h SL-7 Alloy w/ CNC Disc Mount, Cassette
Rims
DB SL7 27.5" 32h, Doublewall
Spokes
14g Stainless
Tires
Chaoyang Hornet 27.5x2.1
Brakes
Brakes
Tektro Aires Mechanical Disc w/ 160mm Front / 160mm Rear Rotors
Brake Levers
Shimano Altus EF-51
Cockpit
Stem
DB AL6061 Ahead, 31.8mm, 7°
Handlebar
DB Flat Bar, 720mm wide, Flat Bar,31.8mm
Grips
DB4L 135mm Kraton
Headset
Integrated FSA Drop-in ACB upper, Zero Stack lower internal cup and cartridge bearing, 1 1/8"
Seat
Saddle
DB Race s M-series Saddle
Seatpost
DB Laser Micro Adjust 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 580 mm | 605 mm | 626 mm | 646 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1067 mm | 1093 mm | 1114 mm | 1135 mm |
| Standover Height | 692 mm | 743 mm | 793 mm | 832 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

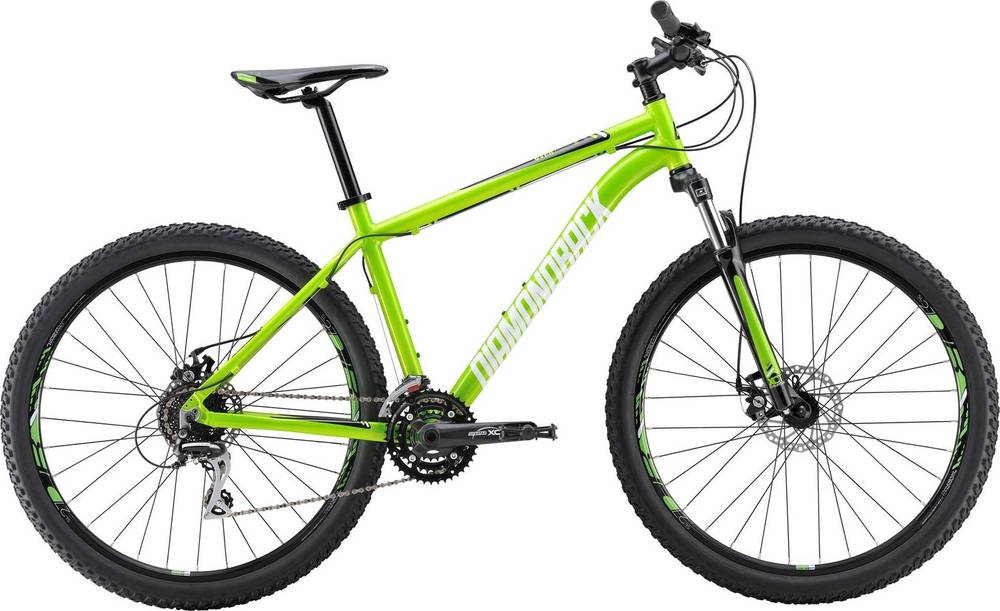

Overdrive ST is a Diamondback Overdrive model. Diamondback launched 37 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
Diamondback Overdrive ST 2016 is the most economical model, with a starting price of 499$. Diamondback Overdrive 2016 on the other hand costs 499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 499$. Doing a quick comparison, we notice that Overdrive ST price is 281.76% lower than the average cost of a Crosscountry bike.
Overdrive ST components
Fork
The Overdrive ST comes factory-installed with the SunTour XCT fork. This has a travel range of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Diamondback Overdrive ST 2016, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamondback Overdrive ST has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
