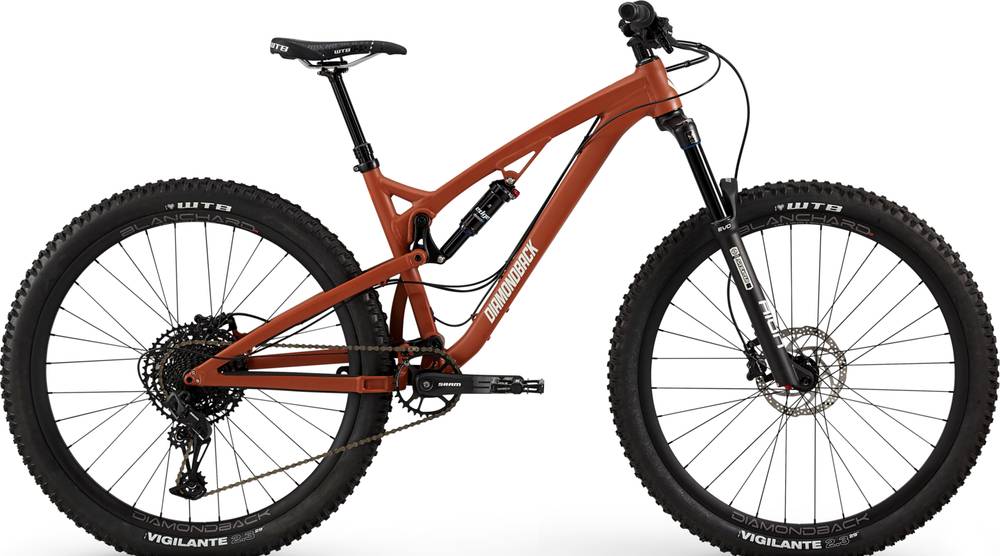

Diamondback Release 29 1 2020
2020 Mountain
Estimate price |
2,550$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork SunTour AION
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
SR Suntour Aion 29", 140mm Travel, Air Spring w/Rebound Adjust, 35mm Stanction, 1.5" Aluminum Taper Steerer, 110x15mm Thru-axle
Rear Shock
Suntour Edge R, 200x57mm, Rebound Adjust, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12 Speed
Shift Levers
SRAM SX Eagle, 12 Speed
Cassette
SRAM PG1210, 12 Speed, 11-50T
Crank
SRAM SX w/Steel 32T Direct Mount
Bottom Bracket
SRAM Powerspline, 118/73
Chain
SRAM SX Eagle, 12 Speed
Pedals
DB Aluminum Platform w/Replaceable Pins
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless ready, 32h
Spokes
14g Stainless Steel
Tires
WTB Vigilante 29x2.3", Wire Bead
Brakes
Brakes
TRP Slate X2, w/180mm Front / 180mm Rear Rotors
Brake Levers
TRP Slate
Cockpit
Stem
DB35 Aluminum 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
DB Lock-On Grip
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Koda Comp
Seatpost
TranzX YSP18JL, Internal Dropper, 31.6mm w/1x Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 689 mm | 714 mm | 740 mm | 766 mm |
| Rake | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 103 mm | 103 mm | 102 mm | 103 mm |
| Stack | 593 mm | 593 mm | 602 mm | 611 mm |
| Reach | 396 mm | 421 mm | 443 mm | 466 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1128 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 769 mm | 778 mm | 785 mm | 798 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Release 29 1 belongs to the Diamondback Release model. 37 bikes variations carry this model name so far. You can easily view all of the Diamondback Release bikes models from 2020, here.
Model range prices
Diamondback Release 1 2020 is the cheapest bike model and costs 2500$. Diamondback Release 5C Carbon 2020 is the most expensive one and costs 5000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 2550$. If we compare this with the average Trail bike cost we notice that the price is 8.31% lower.
Overview of components
Fork
Diamondback Release 29 1 2020 bike is equipped with the SunTour AION fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Release 29 1 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
The Release 29 1 has a rear shock with a travel of 130mm. The model Suntour Edge R is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Release 29 1 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Release 29 1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Release 29 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Diamondback model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
