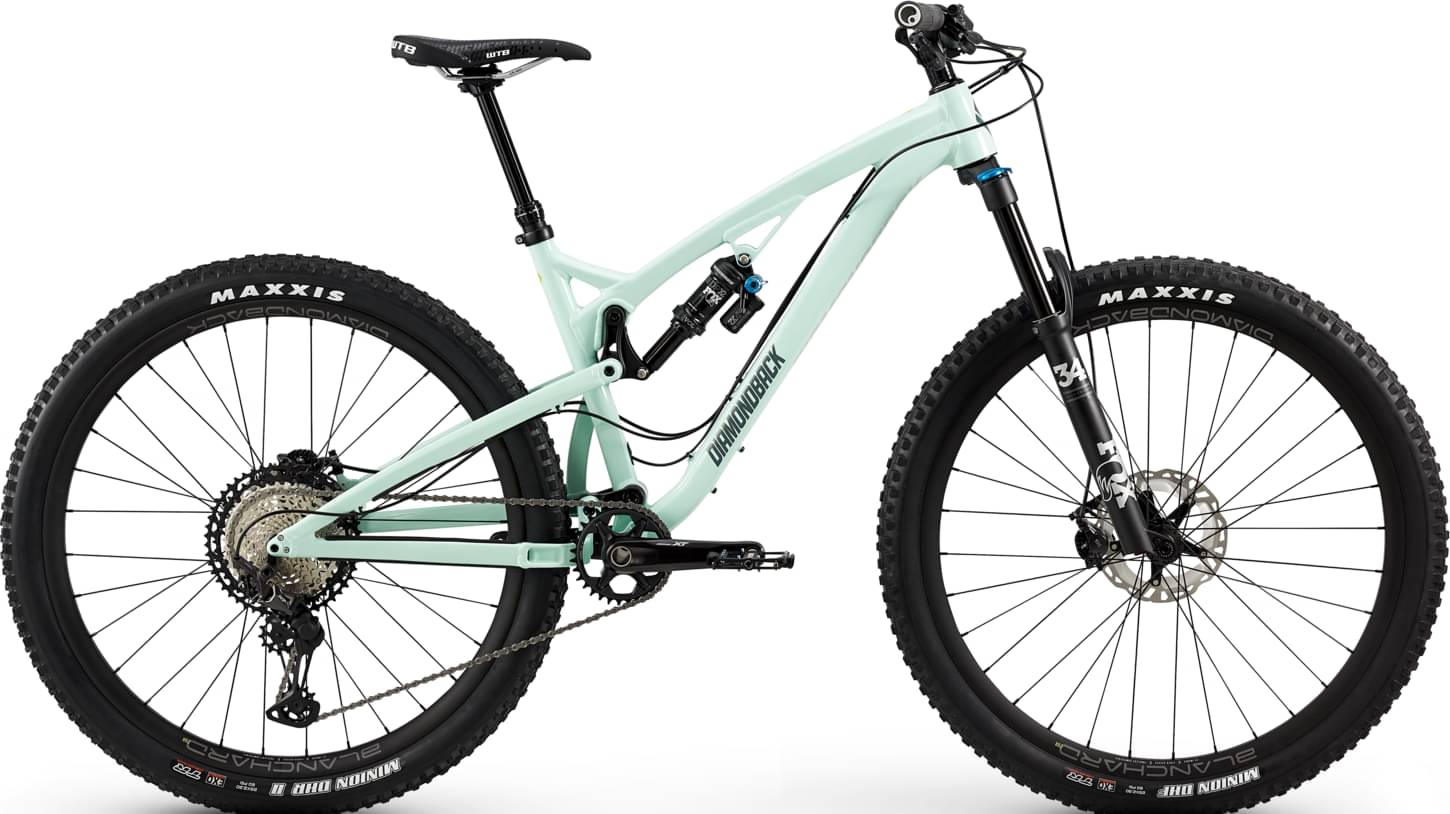

Diamondback Release 29 3 2022
2022 Mountain
Estimate price |
4,100$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
Suspension Fork
Fox 34 Performance Float, 29", 140mm Travel, Grip 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Performance Float DPX2, 3 Position Lever, LV EVOL, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow Plus, 12 Speed SGS
Shift Levers
Shimano XT M8100, 12 Speed
Cassette
Shimano XT M8100 Cassette, 12 Speed, 10-51T
Crank
Shimano XT M8100, 32T
Bottom Bracket
Shimano BB-52
Chain
Shimano XT M8100, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/ Replaceable Pins
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Aluminum Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless Comaptible, 32h
Spokes
2.0/1.8/2.0 Double Butted Stainless Steel
Tires
Maxxis Minion DHF 29x2.3" EXO, TLR, Folding / Maxxis Minion DHR 29x2.3" EXO, TLR, Folding
Brakes
Brakes
Shimano XT M8100, w/180mm Front /180mm Rear, RT800 Rotors
Brake Levers
Shimano XT M8100
Cockpit
Stem
DB35 Aluminum 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Koda Race
Seatpost
KS LEV Integra, Internal Dropper, 31.6mm w/Southpaw Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 689 mm | 714 mm | 740 mm | 766 mm |
| Rake | 47 mm | 47 mm | 48 mm | 47 mm |
| Trail | 103 mm | 103 mm | 102 mm | 103 mm |
| Stack | 593 mm | 593 mm | 602 mm | 611 mm |
| Reach | 396 mm | 421 mm | 443 mm | 466 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1128 mm | 1153 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 769 mm | 778 mm | 785 mm | 798 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Release 29 3 belongs to the Diamondback Release model. Diamondback released 37 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Diamondback Release 29 1 2022 is the cheapest bike model and costs 2550$. Diamondback Release 5C 2022 is the most expensive one and costs 5200$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Diamondback Release 29 3 price was 4100$. In conclusion, this bike price is 48.44% higher than the price of the average Trail bike.
Release 29 3 components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Performance Float DPX2 rear shock model, which has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Release 29 3 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Diamondback Release 29 3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
