Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 36 Performance Float, 27.5", 150mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle, 44mm Offset
Rear Shock
Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Shift Levers
SRAM NX Eagle, 12 Speed
Cassette
SRAM PG-1230 Eagle, 12 Speed, 11-50T
Crank
SRAM Descendant 6K Eagle w/32T Direct Mount
Bottom Bracket
SRAM DUB Outboard Bearing
Chain
SRAM NX Eagle, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Wheels
Front Hub
32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Aluminum Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless Compatible, 32h
Spokes
14g Stainless Steel
Tires
Maxxis Minion DHF 27.5x2.3" EXO, TLR, Folding / Maxxis Minion DHR 27.5x2.3" EXO, TLR, Folding
Brakes
Brakes
SRAM G2 R, 4 Piston w/180mm Front /180mm Rear Centerline Rotors
Brake Levers
SRAM G2 R
Cockpit
Stem
Factor Components F355, 35mm Reach, 35mm Bar Bore
Handlebar
DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt Chromolyly
Seatpost
KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.43 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 682 mm | 708 mm | 735 mm | 761 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 111 mm | 110 mm | 109 mm |
| Stack | 589 mm | 589 mm | 602 mm | 608 mm | 617 mm |
| Reach | 385 mm | 411 mm | 434 mm | 456 mm | 478 mm |
| Top Tube Length | 562 mm | 590 mm | 615 mm | 640 mm | 665 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 388 mm | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1112 mm | 1138 mm | 1165 mm | 1191 mm | 1218 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 744 mm | 744 mm | 745 mm | 748 mm | 754 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

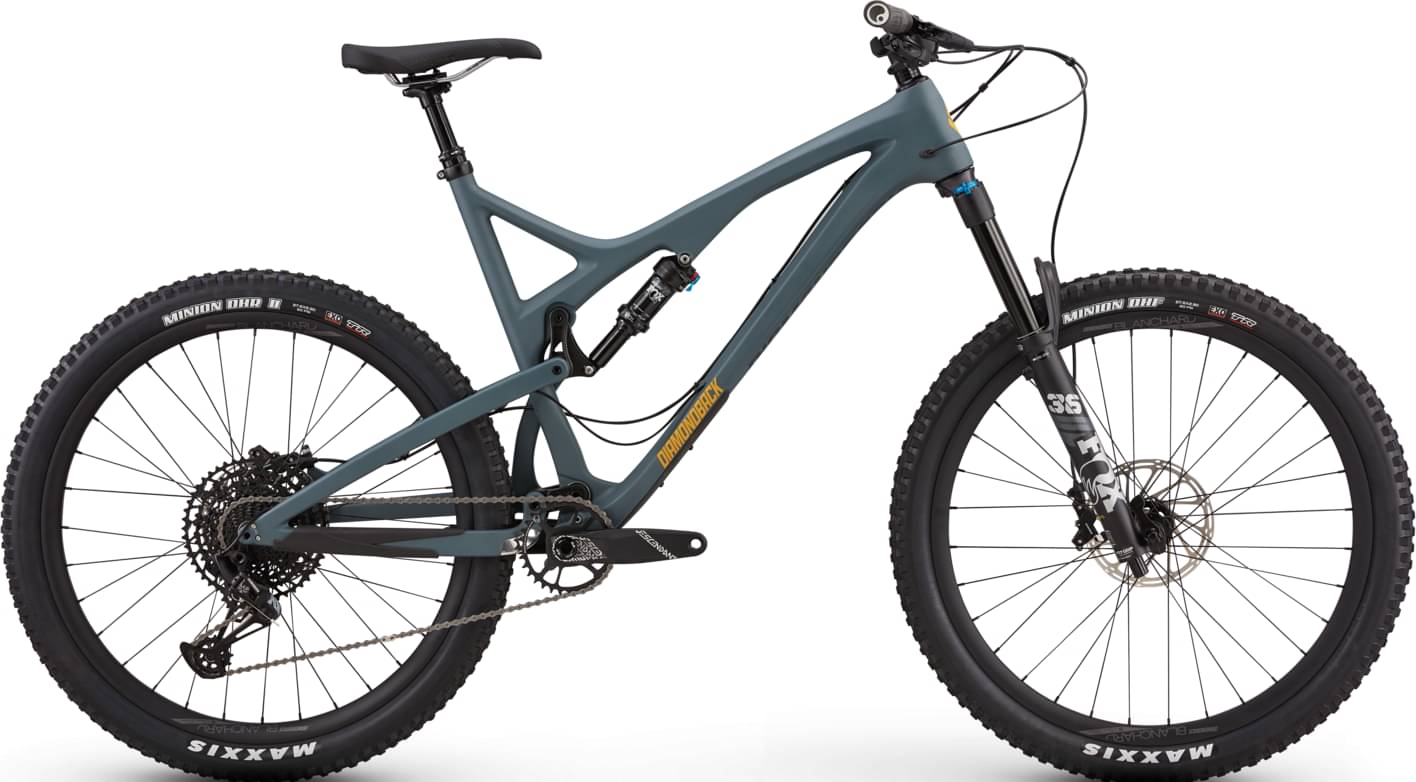

Release 4C is a Diamondback Release model. 37 bikes variations carry this model name so far. Take a sneak peek at all Diamondback Release bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Diamondback Release 29 1 2022 has a starting price of 2550$. Diamondback Release 5C 2022 on the other hand is the most expensive at 5200$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 4350$. Doing a quick comparison, we notice that Release 4C price is 57.49% higher than the average cost of a Trail bike.
Overview of components
Fork
Diamondback Release 4C 2022 bike is equipped with the Fox Performance Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Release 4C has a rear shock with a travel of 130mm. The model Fox Float DPS EVOL LV is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Release 4C 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Release 4C has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Diamondback Release 4C bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Diamondback Release 4C comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
