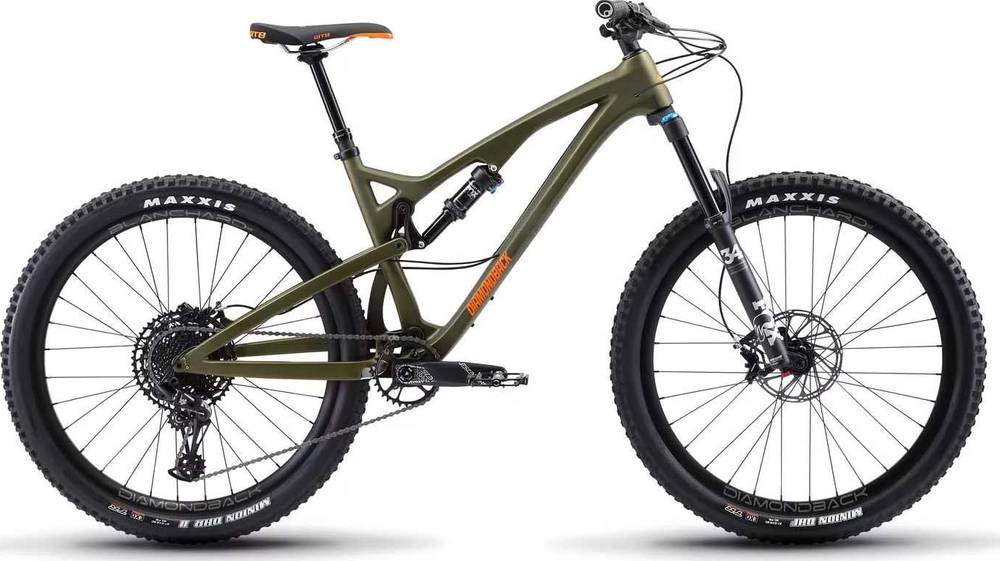

Diamondback Release 4C Carbon 2019
2019 Mountain
Estimate price |
3,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs
Suspension Fork
Fox 34 Performance Float, 27.5", 150mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
Rear Shock
Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Shift Levers
SRAM NX Eagle, 12 Speed
Cassette
SRAM PG-1230 Eagle, 12 Speed, 11-50T
Crank
SRAM Descendant 6K Eagle w/32T Direct Mount
Bottom Bracket
SRAM DUB Outboard Bearing
Chain
SRAM NX Eagle, 12 Speed
Pedals
DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
Wheels
Front Hub
32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
Rear Hub
32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette
Rims
Diamondback Blanchard 28R, Tubeless Ready, 32h
Spokes
14g Stainless Steel
Tires
Maxxis Minion DHF 27.5x2.3" EXO, TLR, Folding / Maxxis Minion DHR 27.5x2.3" EXO, TLR, Folding
Brakes
Brakes
SRAM Guide R, w/180mm Front /180mm Rear Centerline Rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
DB35 Alloy, 40mm Reach, 35mm Bar Bore
Handlebar
DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore
Grips
Ergon GE10 Evo Lock-On
Headset
FSA No. 57 Sealed Cartridge
Seat
Saddle
WTB Volt Race
Seatpost
KS LEV SI Internal Dropper, w/SouthPaw Remote, 31.6mm, XS/SM = 125mm, MD/LG/XL = 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 708 mm | 735 mm | 761 mm | 788 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 110 mm | 109 mm |
| Stack | 578 mm | 591 mm | 597 mm | 606 mm |
| Reach | 400 mm | 423 mm | 445 mm | 467 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1127 mm | 1154 mm | 1180 mm | 1207 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 733 mm | 734 mm | 737 mm | 743 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Release 4C Carbon belongs to the Diamondback Release model. Diamondback released 37 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Diamondback Release 1 2019 has a starting price of 2299$. Diamondback Release 5C Carbon 2019 on the other hand is the most expensive at 4799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Diamondback released this model in 2019, its price was 3599$. Doing a quick comparison, we notice that Release 4C Carbon price is 30.3% more expensive than the average cost of a Trail bike.
Release 4C Carbon components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS EVOL LV rear shock model, which has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Release 4C Carbon bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Release 4C Carbon has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Diamondback Release 4C Carbon bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Release 4C Carbon. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
