Diamondback Sync’r Carbon 2020

2020 Mountain
Estimate price | 3,000$
Weight | 13.2 kg
Open compare Use advisor

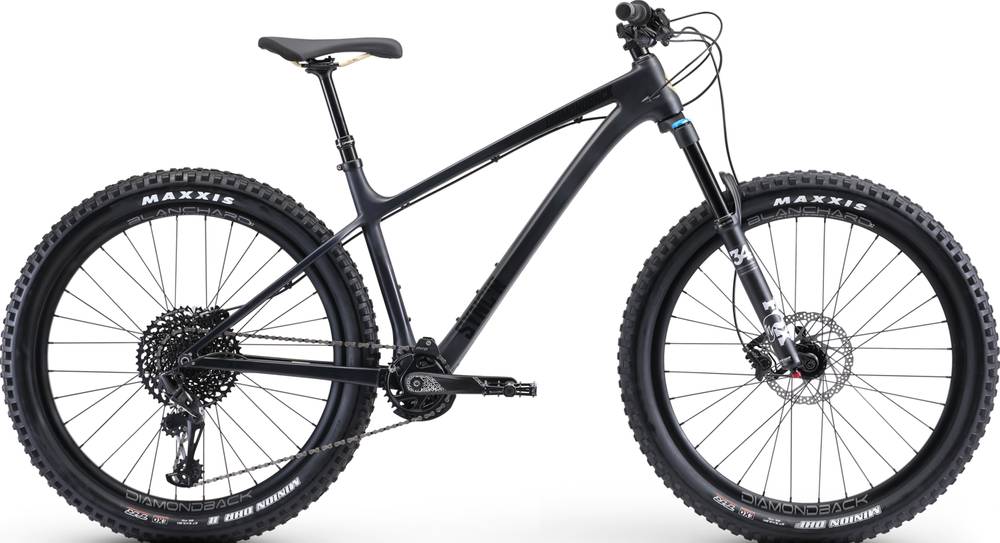

Diamondback Syncr Carbon 2020

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Wheels 27.5"
  • Travel Front 140mm
  • Fork Fox Performance Float 34
  • Groupset GX Eagle, Truvativ Descendant
  • Suspension Hardtail
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

New Sync'r Monocoque Carbon, Asymetrical Chainstays, Internal Cable Routing, Tapered Headtube, Euro Standard Threaded BB, ISCG-05 Tabs, Internal Dropper Post Ready, 148x12mm Boost Hub Spacing, 27.5x2.8", Post Mount Disc, w/ Replacable Hanger

Suspension Fork

Fox 34 Performance Float, 140mm of Travel, Grip 3 POS, 15mm Thru Axle

Drivetrain

Rear Derailleur

SRAM GX Eagle, 12 Speed

Shift Levers

SRAM GX Eagle 12 Speed X-Actuation Trigger

Cassette

SRAM XG1275 Eagle, 12 Speed, 10-50T

Crank

Truvativ Descendant 6K, 32T Eagle Chainring

Bottom Bracket

Truvativ Powerspline

Chain

SRAM GX Eagle, 12 Speed

Pedals

DB4L Alloy Platform, Sealed Cartridge Bearings w/ Replaceable Pins

Wheels

Front Hub

32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount

Rear Hub

32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, for SRAM XD Cassette, w/ CNC Disc Mount

Rims

Diamondback Blanchard 32R, Tubeless ready, 32h

Spokes

14g Stainless Steel

Tires

Maxxis Minion DHF 27.5x2.8" EXO, TLR, Folding / Maxxis Minion DHR 27.5x2.8" EXO, TLR, Folding

Brakes

Brakes

Shimano MT501 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors

Brake Levers

Shimano MT501 Hydraulic

Cockpit

Stem

Diamondback "Shortie", 40mm Reach, 35mm Bar Bore

Handlebar

Race Face Æffect 35, 20mm Rise, 780mm Wide, 35mm Bar Bore

Grips

New DB "Flanged" Lock-on, 135mm Silcone

Headset

FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge

Seat

Saddle

DB Sync'r Saddle

Seatpost

X-Fusion Manic Dropper Post, 125mm (S,M) / 150mm (L,XL) of travel

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.424 mm1.37 mm1.341 mm1.314 mm
Bottom Bracket Height
305 mm305 mm305 mm305 mm
Front Center
708 mm735 mm755 mm774 mm
Rake
44 mm44 mm44 mm44 mm
Trail
108 mm108 mm110 mm112 mm
Stack
591 mm600 mm610 mm620 mm
Reach
415 mm438 mm455 mm472 mm
Top Tube Length
585 mm610 mm630 mm650
Seat Tube Angle
74 °74 °74 °74 °
Seat Tube Length
400 mm435 mm485 mm535 mm
Head Tube Angle
66 °66 °66 °66 °
Head Tube Length
105 mm115 mm125 mm135 mm
Chainstay Length
435 mm435 mm435 mm435 mm
Wheelbase
1138 mm1165 mm1185 mm1204 mm
Bottom Bracket Drop
50 mm50 mm50 mm50 mm
Standover Height
754 mm772 mm808 mm842 mm
Wheels27"27"27"27"
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm

Model Overview

Sync’r Carbon completes the Diamondback Syncr model. Diamondback released 19 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.

Model range prices

Diamondback Sync’r 24 2020 is the most affordable bike of this model and has a price of 1000$. On the other hand, Diamondback Sync’r Carbon 29 2020, is the most expensive and costs 3650$.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Trail bikes average price

If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.

This bike was released in 2020 and its price was 3000$. If we compare this with the average Trail bike cost we notice that the price is 8.62% more expensive.

Average weight for Trail bikes

The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.

Sync’r Carbon weighs 13.2 kg (29.1 lbs) and is slightly heavier than the average. In other words, this model is 1.69% heavier than the average Trail bike.

Internal Cable Routing

Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.

Overview of components

Fork

The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

Wheels size

The Sync’r Carbon 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.

Brakes

Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.

Sizes

There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.

Dropper post

A dropper post is included with the Sync’r Carbon. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
